Relay (Counter)

Relay refers to the current counts of the relay usage. In ioLogik E2214, the counts of the relay usage is stored

inside the ioLogik. Checking the current counts of a relay will produce the action. For example, the average

life-cycle of a relay is 25,000 times. An alarm e-mail may be generated when the counter reaches 20,000 times

(CurRelayCNT-0 > 20000) to report the need for replacement.

Internal Register (Integer)

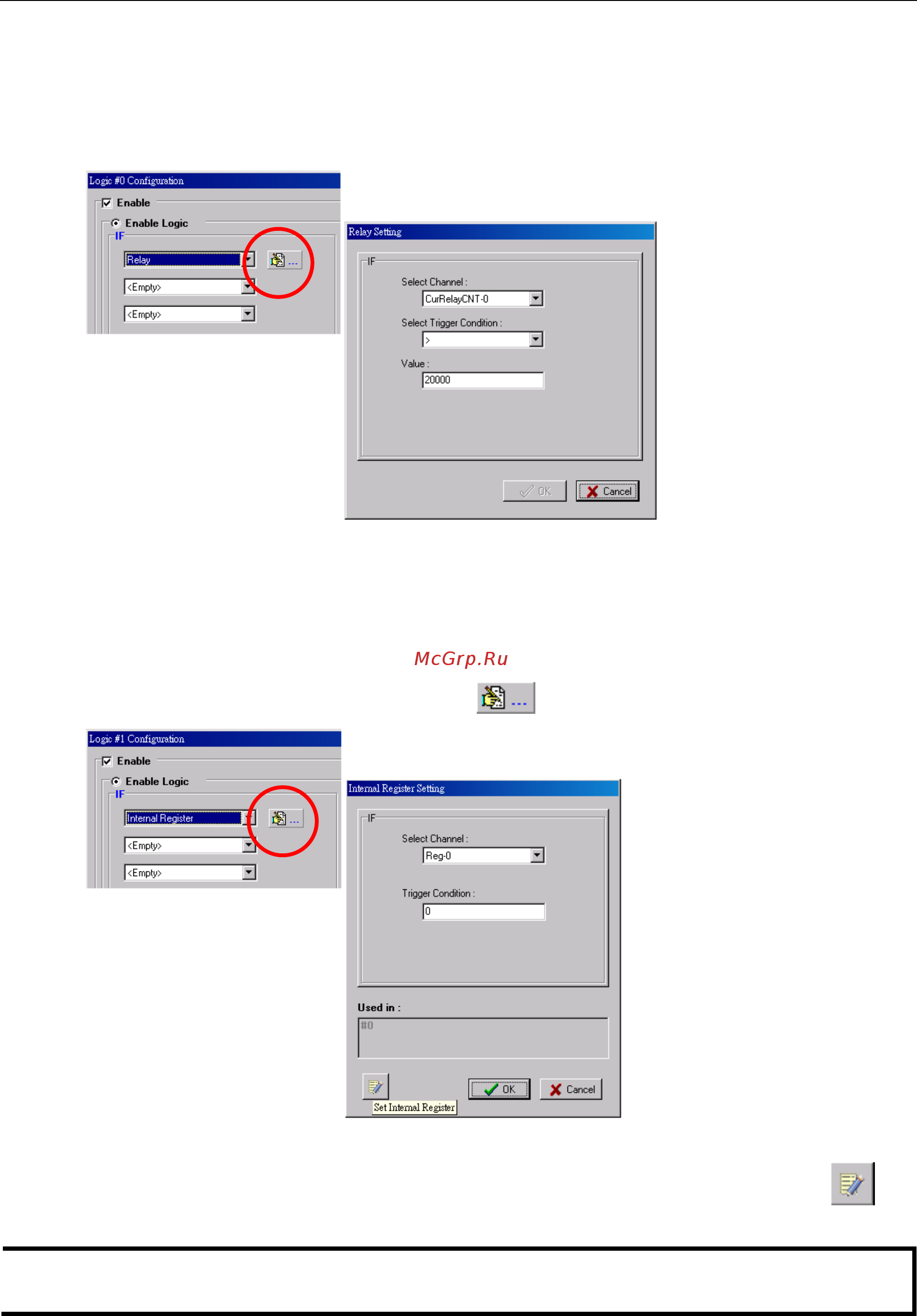

Internal Register (Integer) represents a status flag to link the status of the first logic to the second one. It

is used most often with the Timer function, or to combine other input statuses together. The Internal Register

function also allows a PC to control the ioLogik’s local output when the remote output is controlled by a

Click&Go log (e.g., digital output, active message, e-mail, or SNMP Trap). Select the IF condition for the

Internal Register and click on the property button ( ) to enter the Set Internal Register window.

In the above figure, the “Used in:” column indicates that this Internal Register is also used with Rule-0, which

helps the user identify the relationship between the rules. Also, the Set Internal Register button ( ) will

help to define the default values of all Internal Registers.

NOTE

Internal Registers can be controlled by Modbus/TCP protocol. Refer to the

appendix

for the address list for all

Internal Registers.
