ioLogik E2200 Series Using ioAdmin
3-7

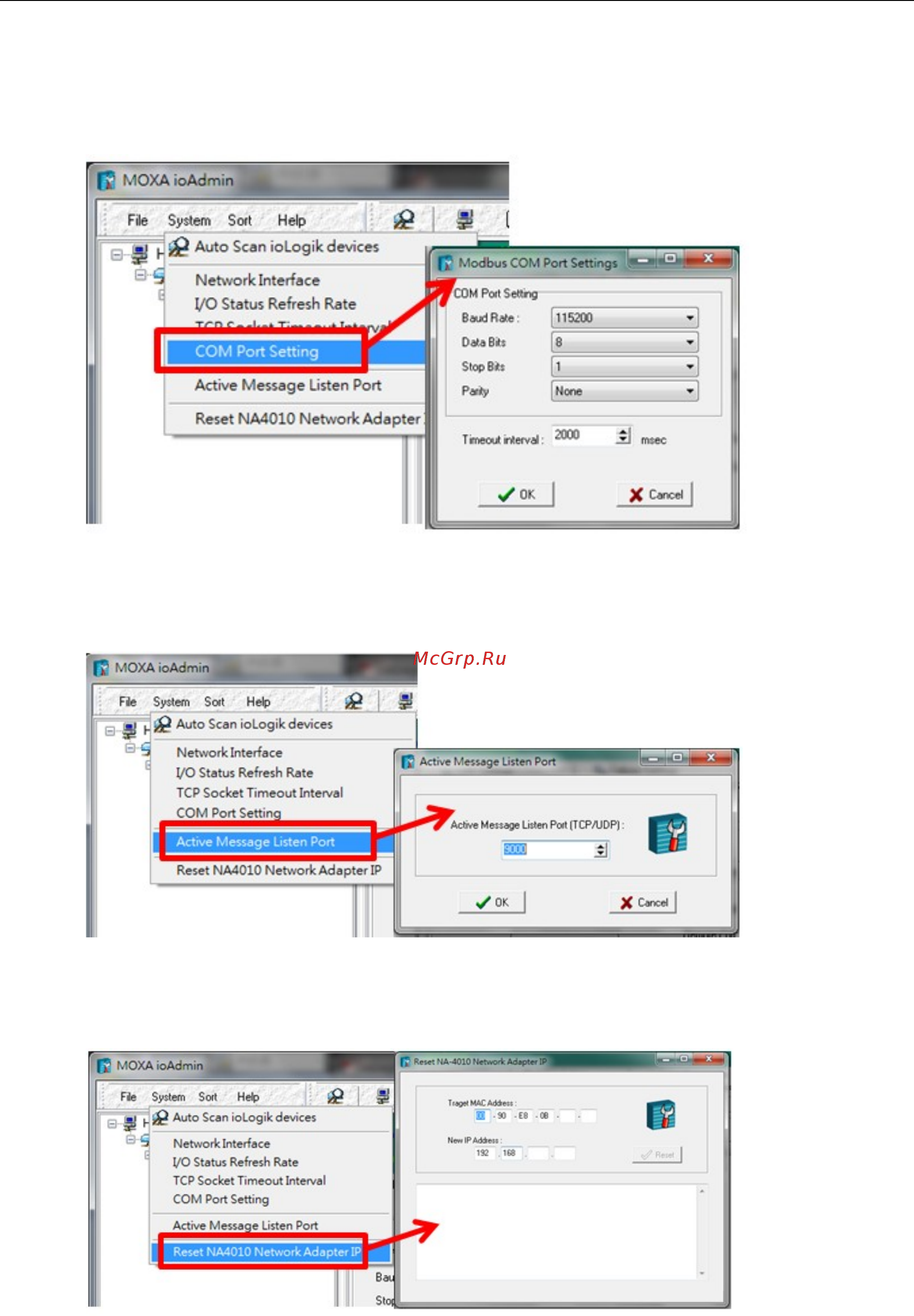

COM Port Setting
This operation is used to set the default parameters for the ioAdmin utility to establish a Modbus connection,
such as baudrate, data bits, and timeout interval. For most applications, this will involve connecting to ioLogik
R-series devices.
Active Message Listen Port
This operation specifies the port number to use for Active Messages. If your network uses a firewall, you can
coordinate this setting with your firewall settings to ensure that active messages get through.
Reset NA4010 Network Adaptor IP
This operation is used to re-assign an IP address to the NA-4010 network as reported by the ioLogik W5300
series adaptor, for ioLogik 4000 systems.
