ioLogik E2200 Series Using ioAdmin
3-21

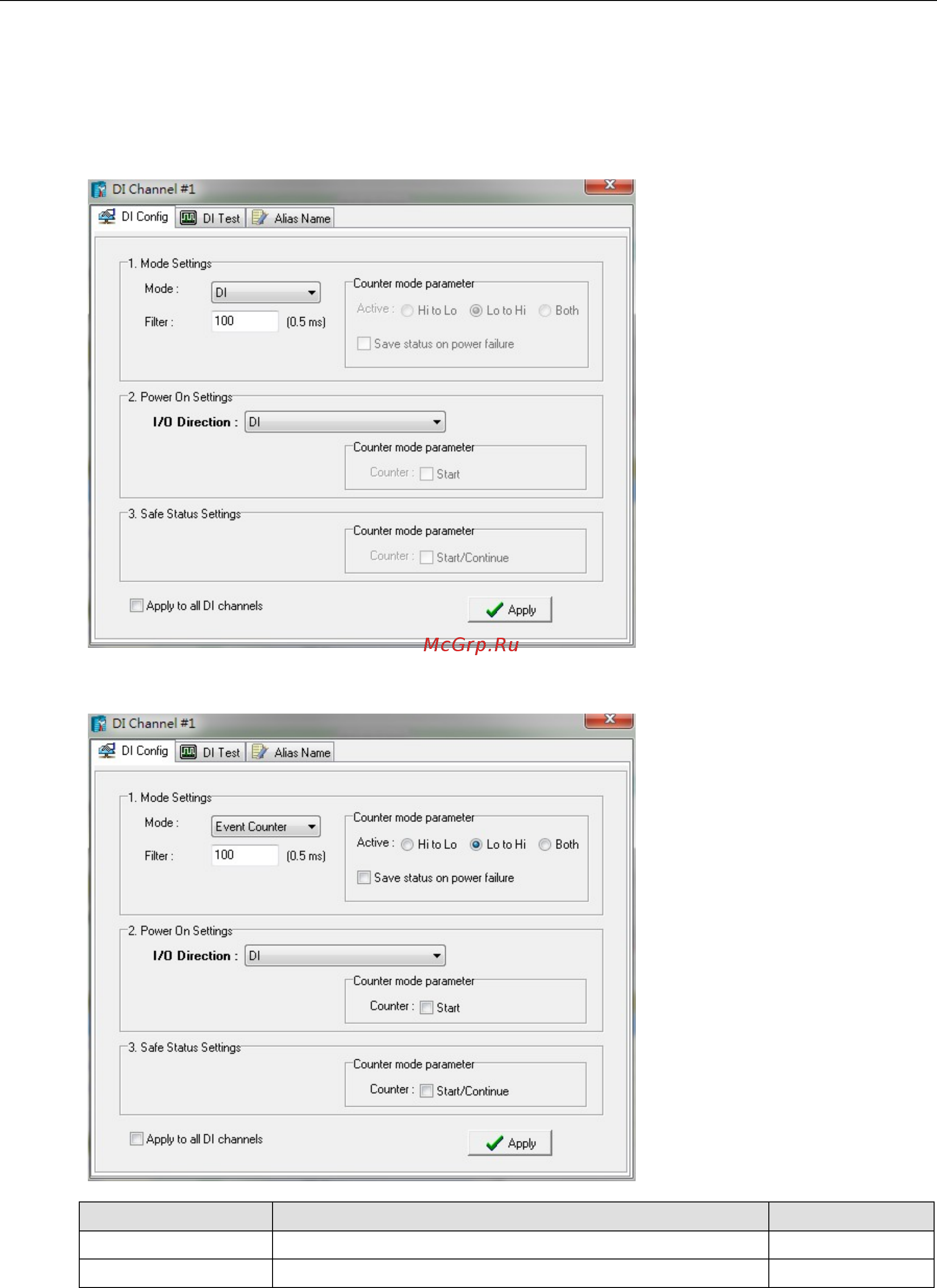

Configuring Digital Input Channels
The ioLogik E2210 can support up to 12 digital input (DI) channels. Software filtering is used to control switch
bounces. Under 1. Mode Settings, the Filter field is configurable in multiples of 0.5 ms and accepts values
between 1 and 65535. For example, a setting of 100 would mean a 50 ms filter (100 × 0.5 ms).
A DI channel can be set to “DI” or “Event Counter” mode. In DI mode, the specifications are as follows:
Type ON OFF
Dry contact Short to GND Open
Wet contact 0 to 3 VDC 10 to 30 VDC
In Event Counter mode, the channel accepts limit or proximity switches and counts events according to the
ON/OFF status. When Lo to Hi is selected, the counter value increases when the attached switch is pushed.
When Hi to Lo is selected, the counter value increases when the switch is released. When Both is selected, the
counter value increases when the attached switch is pushed or released.
