Working with Logic

Click&Go Logic Basics

The Click&Go Logic panel is available after logging in as administrator. This is where Click&Go logic is

configured. With a set of rules (known as a rule-set) defined through Click&Go, the ioLogik can perform local

and remote I/O control, report I/O status, and actively send out messages, e-mails, or SNMP traps to a host as

soon as the user-defined I/O conditions have been met.

To use Click&Go Logic, start ioAdmin and log in as ioLogik administrator from the Server Settings panel. Once

you are logged in, go to the Click&Go Logic panel. The following screen should appear:

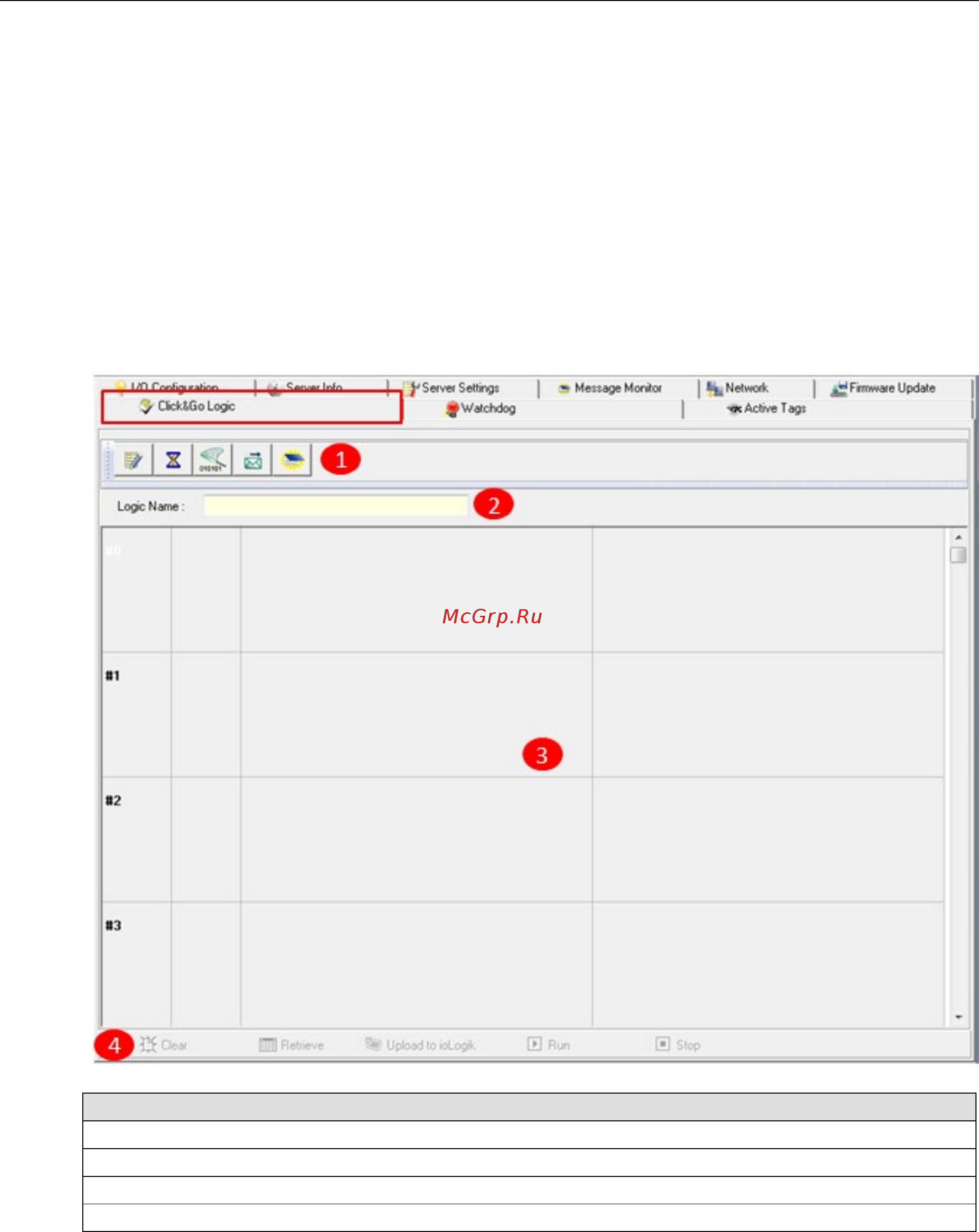

Click&Go Logic Panel

1. Global Variable: In this field, you can configure global variable rules.

2. Logic Name: In this field, you can assign a name to the set of rules.

3. Rule-set: In this area, each rule’s conditions, actions, and status are displayed.

4. Rule-set Management Bar: In this area, you manage the rule-set.

Rules are the building blocks of your ioLogik system. With rules, you define the exact trigger conditions for

transmission of I/O information as well as the content and destination of that information.

Click&Go Logic can be defined in the following ways:

IF “A” THEN “B”, ELSE “C”

For one control logic rule, there are three “A’s” that can be configured. “A” refers to the IF conditions that

trigger an action. These three conditions can be operated by “AND” or “OR” logic. If “AND” logic is used, all

three conditions must be true to create a positive result. If “OR” logic is used, one or more true conditions must

be met to trigger the action.
