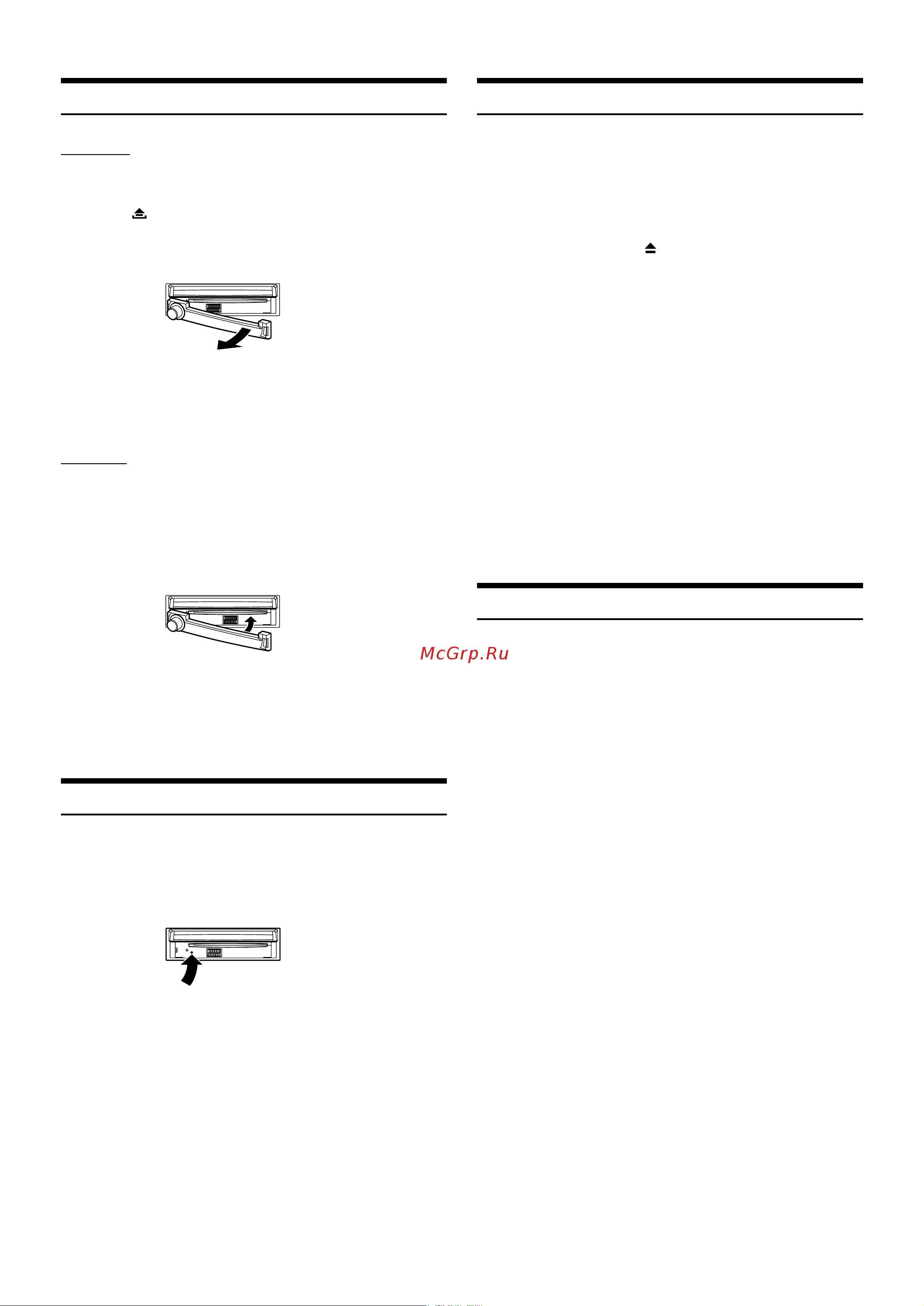

Detaching and Attaching the Front Panel
Detaching
1
Turn off the unit power.
2
Press (Release) at the lower right side until the
front panel pops out.
3
Grasp the right side of the front panel and pull it out.
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
Attaching
1
Insert the left side of the front panel into the main
unit. Align the groove on the front panel with the
projections on the main unit.
2
Push the right side of the front panel until it locks
firmly into the main unit.
• Before attaching the front panel, make sure that there is no dirt or
dust on the connector terminals and no foreign object between the
front panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Initial System Start-Up
Immediately after installing or applying power to the unit, it should be
initialized. To do this, first, remove the detachable front panel. Behind
the front panel, to the left of the connector, there is a small hole. Using a
pencil or other pointed object, press the reset switch mounted behind
this hole to complete the initialization procedure.
• Any of the buttons does not function while the monitor is closing by
reset.
Turning Power On or Off
Some of this unit’s functions cannot be performed while the vehicle is in
motion. Be sure to stop your vehicle in a safe location and apply the
parking brake, before attempting these operations.
1
Press SOURCE/POWER to turn on the unit.
• The unit can be turned on by pressing any button on the unit except
OPEN/CLOSE, FLAT and (Eject).
2
Press and hold SOURCE/POWER for at least 2
seconds to turn off the unit.
• The IVA-D100R/IVA-D100RB draws minimal current even when its
power switch is turned off. If the switched power (ignition) lead of the
IVA-D100R/IVA-D100RB is connected directly to the positive (+)
post of the vehicle’s battery, the battery may be discharged. If this
lead is unswitched, it must be disconnected from the battery post
should the vehicle be left unused for an extended period of time.
An SPST (Single-Pole, Single-Throw) switch (sold separately) can be
added to simplify this procedure. Then, you can simply place it in the
OFF position when you leave the vehicle. Turn the SPST switch back
ON before using the IVA-D100R/IVA-D100RB. For connecting the
SPST switch, refer to the “Connection Diagram of SPST Switch
(Sold Separately)” (page 67).
• Some operation of the unit cannot be performed while the vehicle is
in motion. In this case, be sure to first stop your vehicle and apply the
parking brake, then perform the operation.
Opening/Closing the Monitor
1
Press OPEN.
The unit beeps 3 times and opens the monitor automatically.
2
Press and hold OPEN (CLOSE) for at least 2
seconds.
The unit beeps 3 times and closes the monitor
automatically.
• Opening/closing the monitor should never be performed manually. It
may cause a malfunction.
• The monitor’s angle is set to 90 degrees at the factory. Depending on
the car, the monitor may hit the dashboard when opened. The
monitor’s angle can be adjusted and stored in memory so that the
monitor will not hit the dashboard when opening. For adjusting the
monitor, refer to “Adjusting the Monitor Angle” (page 29).
Even when the vehicle’s battery power is removed, the adjusted
monitor angle remains stored in memory.
• The IVA-D100R/IVA-D100RB is a precision device. With gentle
handling, its unique capabilities can be enjoyed for a long time.
• If the monitor touches anything while it is being opened (or closed),
the monitor will stop opening (or closing) immediately. Should this
occur, remove the obstacle and press and hold OPEN for at least 2
seconds again to lower the monitor.
• When the movable monitor is opened, do not place any object on the
monitor and be careful not to bump or apply any pressure to the
monitor while it is open. This can cause damage to the mechanism.
• In low ambient temperature conditions, the display may be dark for a
short period of time immediately after the power is turned on. Once
the LCD has warmed up, the display returns to normal.
• For your safety, some operation of the unit cannot be performed
while the vehicle is in motion. In this case, first stop the vehicle and
engage the parking brake, then perform the operation.
