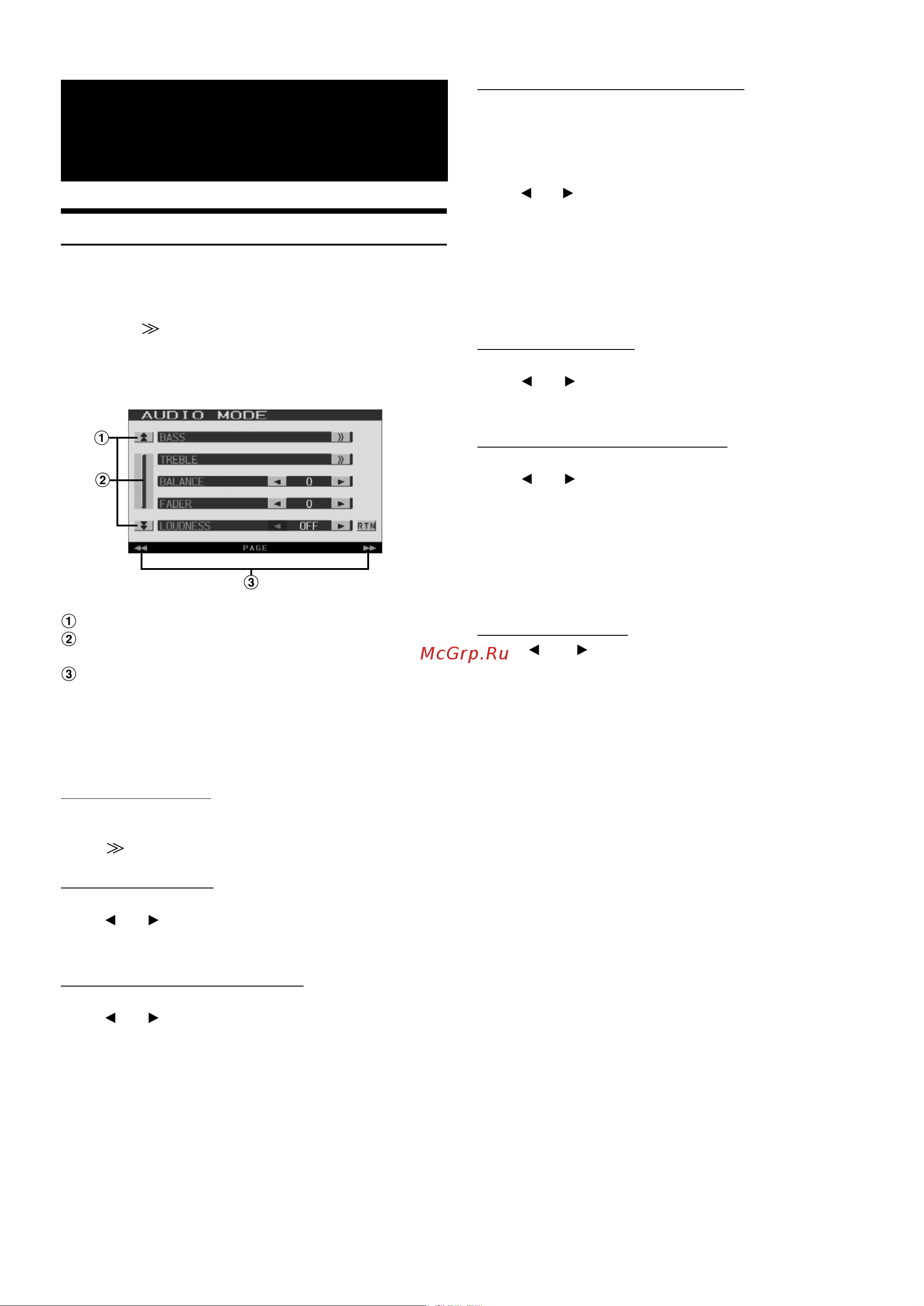

Adjusting the Audio
1
Press SETUP.
The SETUP selection screen is displayed.
2
Touch [] of AUDIO MODE or press and hold the
Rotary encoder for at least 2 seconds on the unit.
The display changes to the AUDIO Adjustment screen.
Display Example for Audio Adjustment Screen
Scrolls the page list up or down.
Scrolls the list item by item.
Touching and holding will scroll continuously.
GlideTouch bar display
For operation, refer to “About the GlideTouch bar”
(page 12).
• Touching [RTN] will return to the previous display.
• When an external audio processor is connected, BASS, TREBLE or
LOUDNESS is not displayed.
Adjusting Bass/Treble
You can change the bass or treble frequency emphasis
to create your own tonal preference.
Touch [ ] to display the Bass or Treble adjusting screen.
Setting the Bass level:
You can emphasize or weaken the bass frequency.
Touch [ ] or [ ] of LEVEL to select the desired bass level.
Setting range:-7 to +10
Setting the Bass Centre Frequency:
The displayed bass frequency is emphasized
Touch [ ] or [ ] of FREQ. to select the desired bass centre
frequency.
Setting range: 60Hz, 80Hz, 100Hz, 120Hz
Setting the Bass Bandwidth (Q-Factor):
Changes the boosted bass bandwidth to wide or narrow.
A wide setting will boost a wide range of frequencies
above and below the centre frequency. A narrower
setting will boost only frequencies near the centre
frequency.
Touch [ ] or [ ] of Q (BASS BANDWIDTH) to select the desired
bass bandwidth.
Setting range: 1.25, 1.00, 0.75, 0.5
• The bass level settings will be individually memorized for each
source (FM, MW, LW, CD, etc.) until the setting is changed. The bass
frequency and bass bandwidth settings adjusted for one source are
effective for all other sources (FM, MW, LW, CD etc.).
Setting the treble level:
You can emphasize the treble frequency.
Touch [ ] or [ ] of LEVEL to select the desired treble level.
Setting range: -7 to +7
Setting the Treble Centre Frequency:
The displayed Treble frequency is emphasized.
Touch [ ] or [ ] of FREQ. to select the desired bass centre
frequency.
Setting range:7.5kHz, 10kHz, 12.5kHz, 15kHz
• The treble level settings will be individually memorized for each
source (FM, MW, LW, CD, etc.) until the setting is changed. The
Treble frequency settings adjusted for one source are effective for all
other sources (FM, MW, LW, CD, etc.).
Adjusting the Balance
Touch [] or [] of BALANCE to adjust the sound
volume of the left and right speakers.
Setting range: L15 to R15
Other Useful
Features
