Chapter 1. Introduction
5
Components

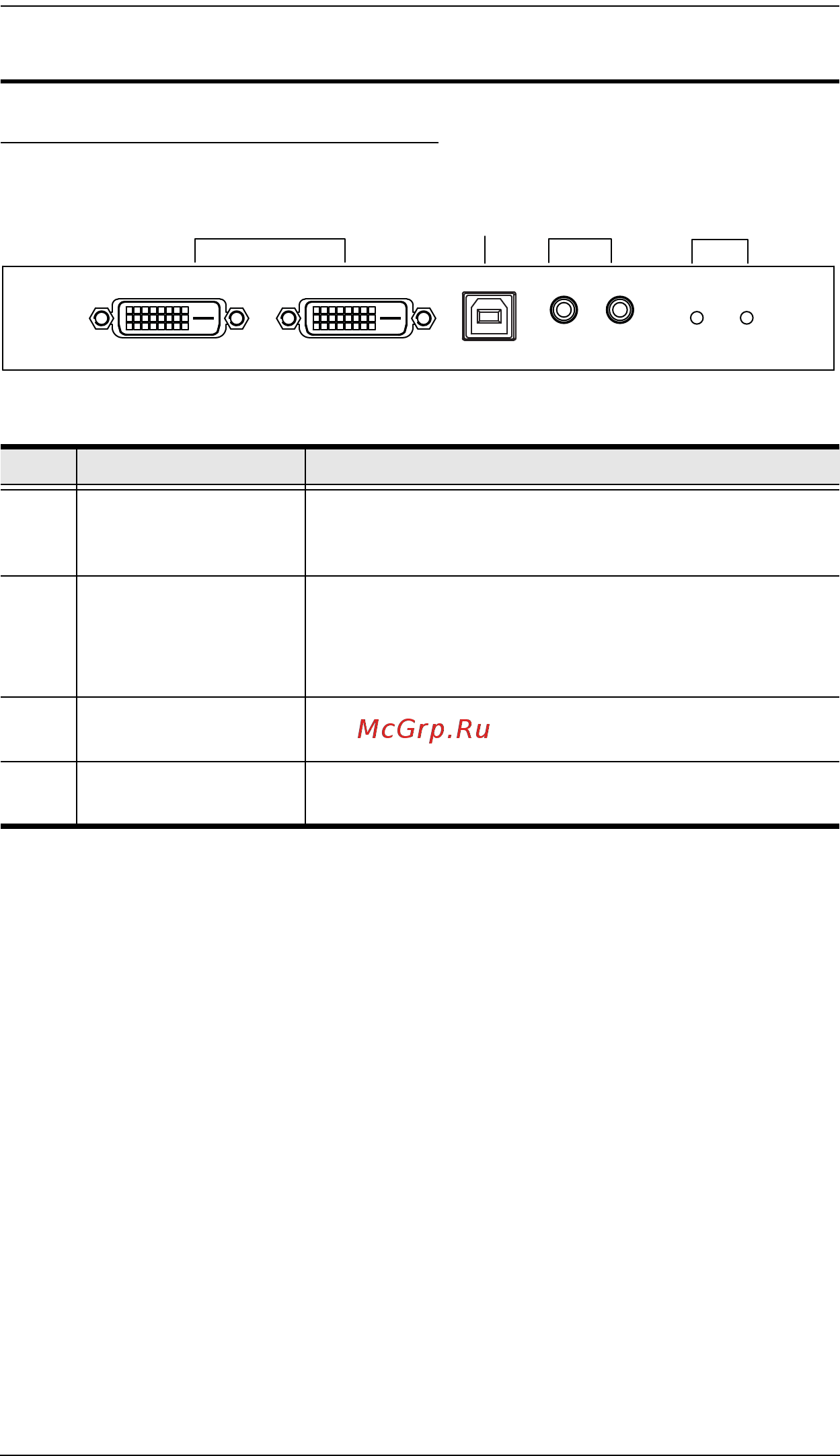

CE604L (Local Unit) Front View
No. Component Description
1 DVI ports Using the USB DVI KVM cable set / DVI cable
provided with this package, connect your computer to
the appropriate ports.
2 USB Type B Input The USB cable from your computer or USB hub plugs
in here.
Note: The provided USB DVI KVM cable set includes
this USB cable.
3 Audio Ports These mini stereo ports are for the speakers (green)
and microphone (pink).
4 LEDs The CE604L has two LEDs to indicate the operating
status. See page 15 for full details.
1
1
3
4
2
