Chapter 4. The Firmware Upgrade Utility
23
Remote Unit Mode
To prepare for the Firmware Upgrade, do the following:
1. Turn off the CE604R and unplug the power adapter.
2. In the Remote Unit’s front panel, press the Wake Up button at the same
time, plug in the power adapter and power on the CE604R. Note that the
LEDs are flashing.
3. Use a Serial RS-232 cross-spider cable to connect a COM port on your
computer to the CE604L’s RS-232 port.
Note: The Serial RS-232 cross-spider cable is not provided in the package.
Starting the Upgrade
To upgrade your firmware:
1. Run the downloaded Firmware Upgrade Package file
(CE604R_ATEN_Vx.x.xxx.exe) – either by double clicking the file icon,
or by opening a command line and entering the full path to it.
The Firmware Upgrade Utility Welcome screen appears.
2. Read and agree to the License Agreement (enable the I Agree radio
button).

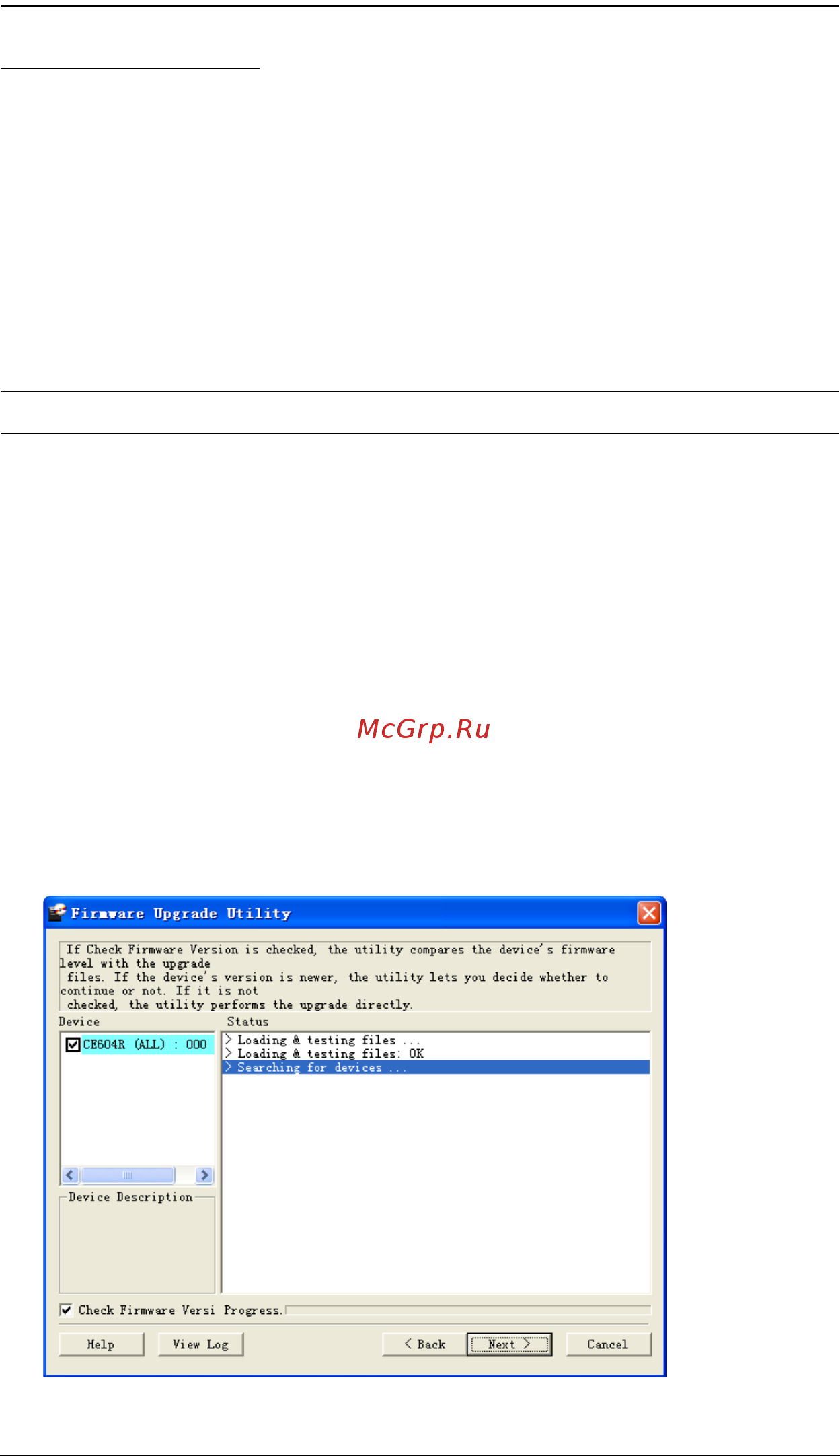

3. Click Next to continue. The Firmware Upgrade Utility main screen
appears:
