CE604 User Manual

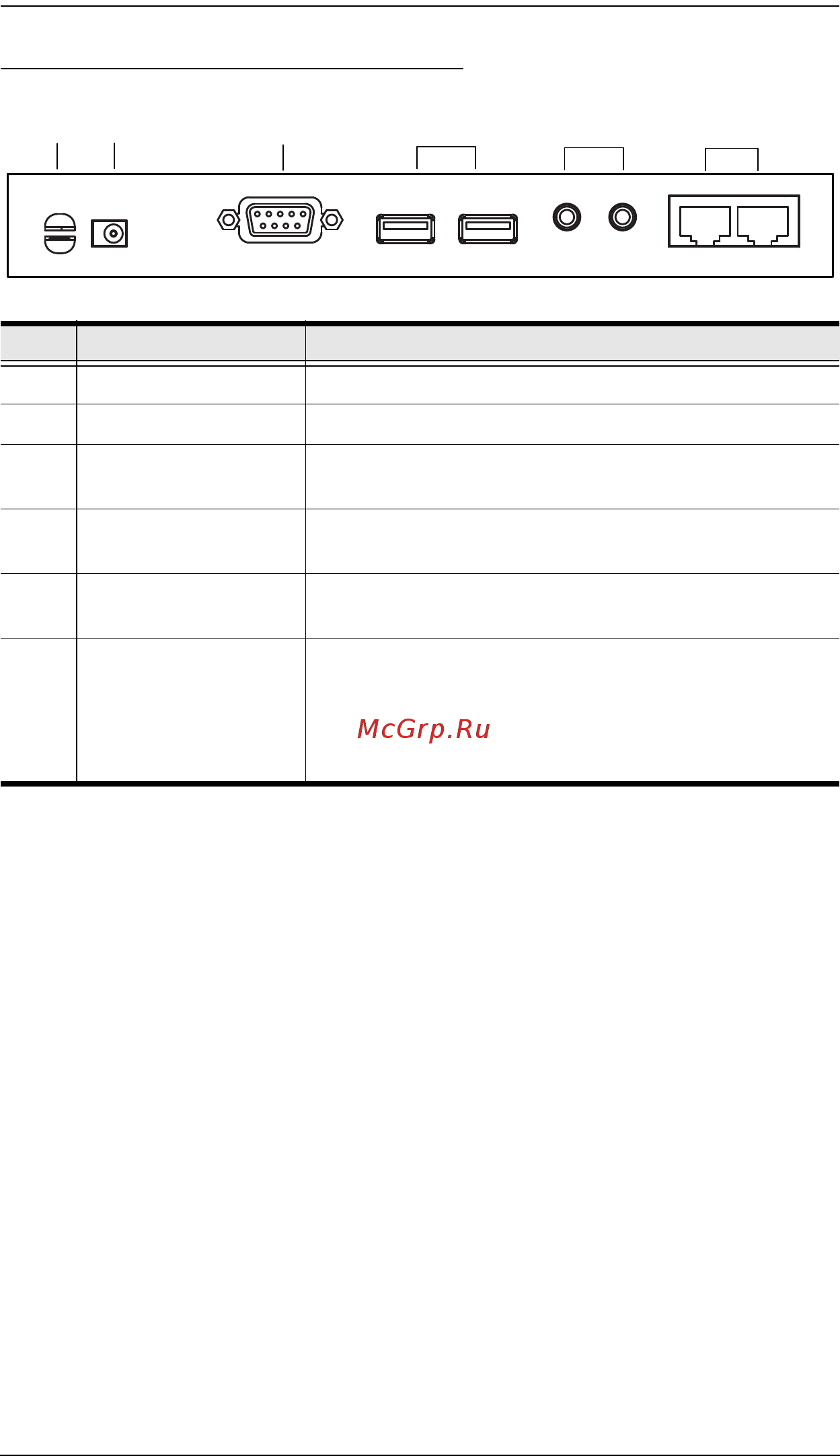

CE604R (Remote Unit) Rear View

No. Component Description

1 Cable clip Use this to clip the power adapter cable in place.

2 Power Jack The cable from the power adapter connects here.

3 RS-232 Serial Port RS-232 serial devices – such as touchscreens or

barcode scanners – plug into this port.

4 USB The USB cable for your keyboard / mouse plugs in

here.

5 Audio Ports These mini stereo ports are for the speakers (green)

and microphone (pink).

6 Sub / Main The Cat 5e cable that connects the Remote and Local

Units plugs in here.

(Note: If another DVI signal and RS-232 / microphone

signals are needed, the Sub cable must be

connected.)
