Chapter 1
6
H110T-SI01 USER MANUAL

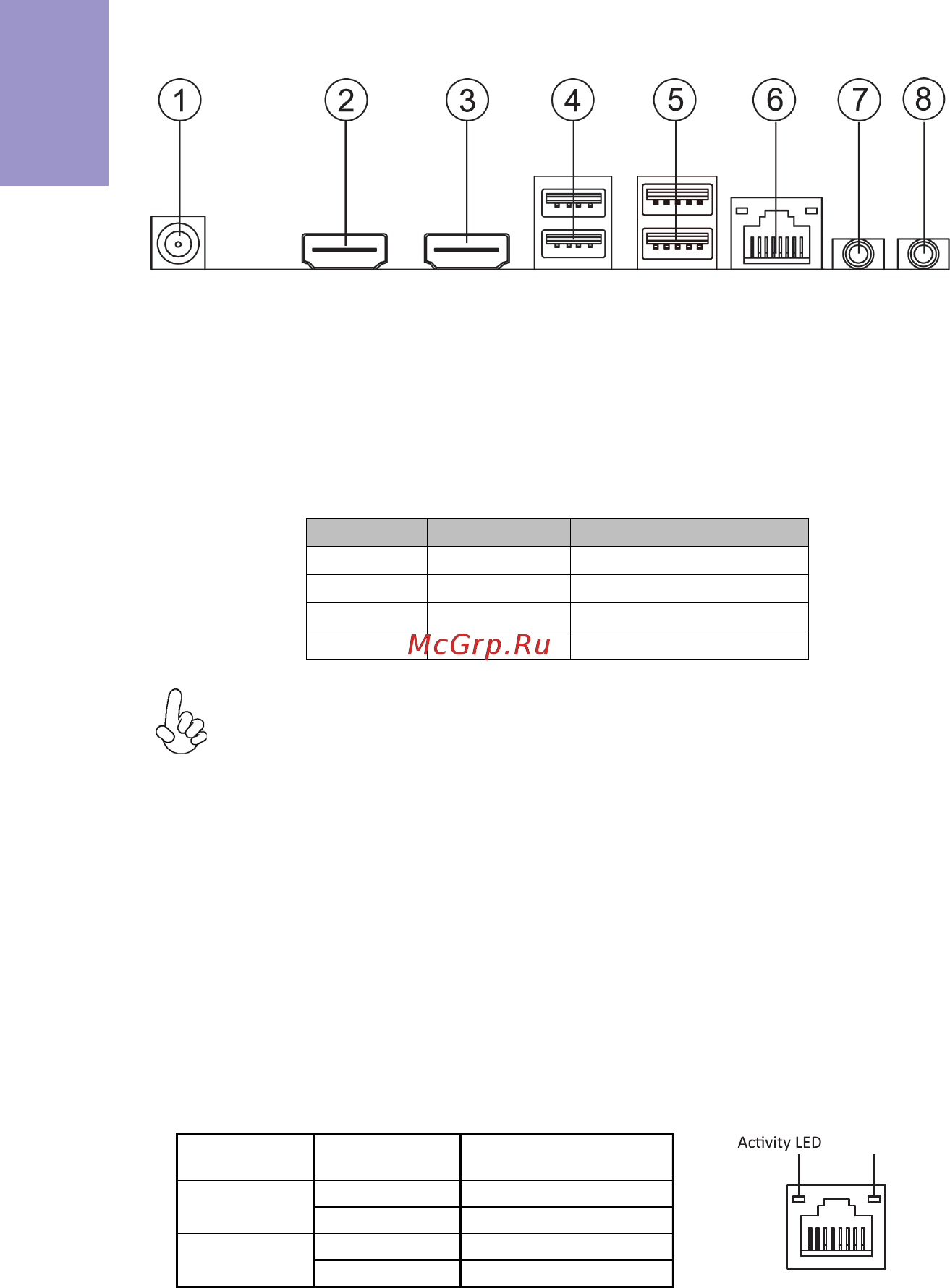

I/O Ports
1. 19V DC_IN Port
Connect the DC_IN port to the power adapter.
2. HDMI_IN Port (For All-In-One Specification)
You can connect the HDMI output of other computer or other HDMI source to the
HDMI_IN port.
3. HDMI_OUT Port
You can connect the display device to the HDMI_OUT port.
4. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. Line-out (lime)
It is used to connect to speakers or headphones.
8. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
PC HDMI_IN port LCD_MODE button pulse
Power ON Un-plugged PC
LCD off
Power OFF Plugged HDMI
LCD off
Power ON Plugged PC
HDMI
LCD off
Power OFF Un-plugged LCD off
1. Please press button to switch the mode manually, it will not be
automatically switched when inserting the HDMI cable.
2. When HDMI_IN is in use, front panel audio header will be invalid.
