Chapter 2

H110T-SI01 USER MANUAL

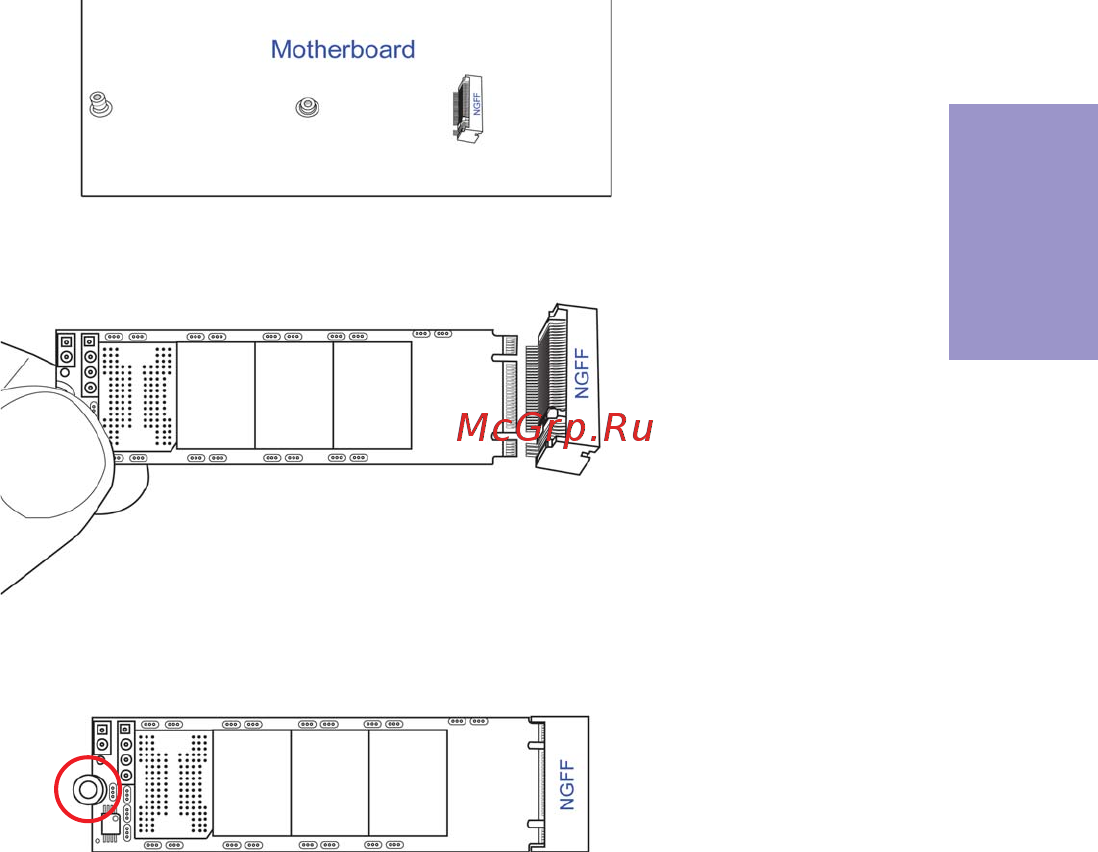

Follow these instructions to install the M.2 SSD card:

1 Demount the screw not used according to the length of your M.2 SSD card.

2 Insert the M.2 SSD card into NGFF slot in the fool-proof way.

3 Lock the screw as the following picture shows to make sure the M.2 SSD

card is installed in place.
