Chapter 2

H110T-SI01 USER MANUAL

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

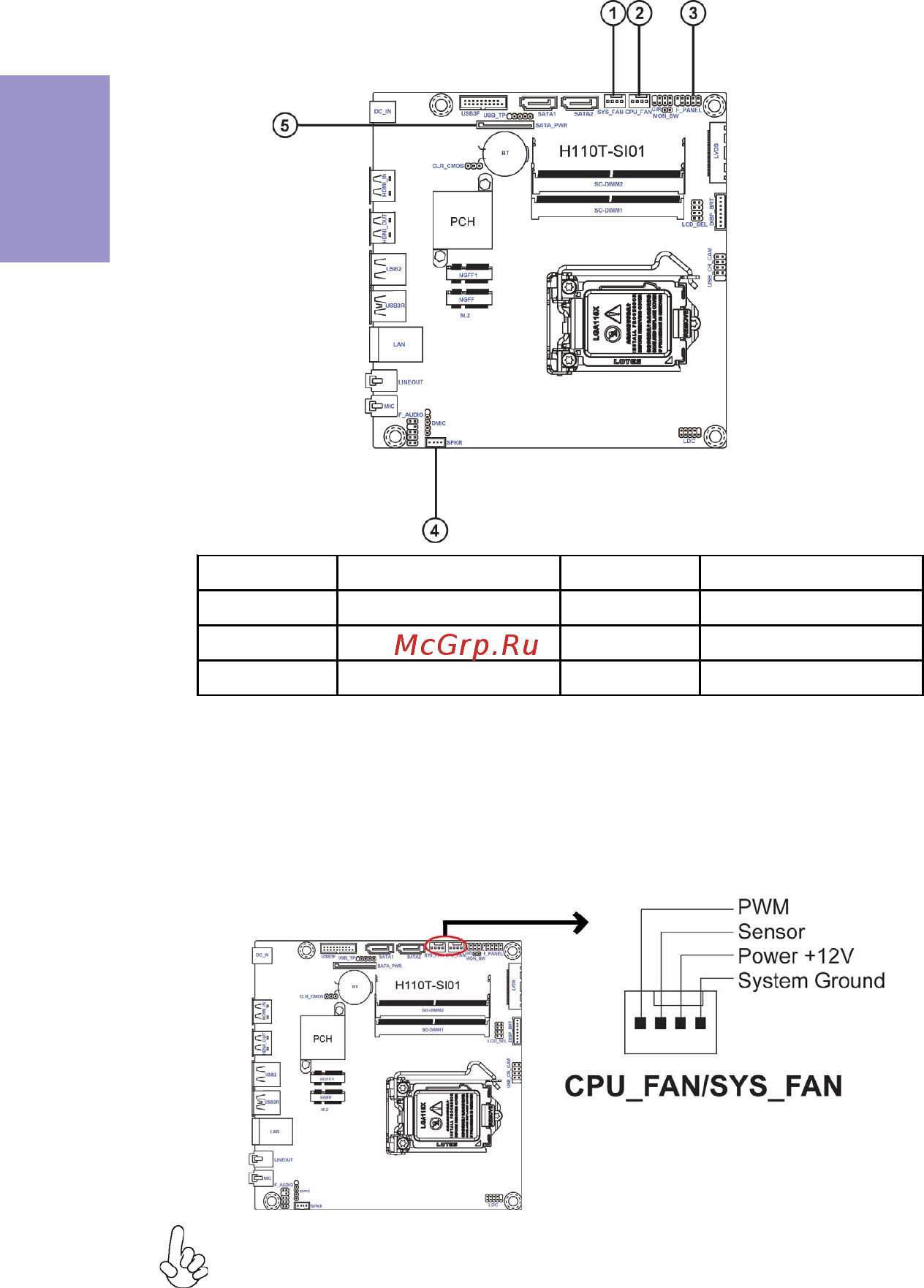

2-4-7. Connecting Case Components

No. Components No. Components

1SYS_FAN4 SPKR

2 CPU_FAN 5 SATA_PWR

3F_PANEL

1 & 2 . SYS_FAN (System cooling FAN connector) &CPU_FAN (CPU cooling FAN

connector)

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

Connect the CPU cooling fan cable to CPU_FAN.

Connect the system cooling fan connector to SYS_FAN.
