ECS Elitegroup H110T-SI01 [23/64] H110t si01 user manual

Chapter 2

H110T-SI01 USER MANUAL

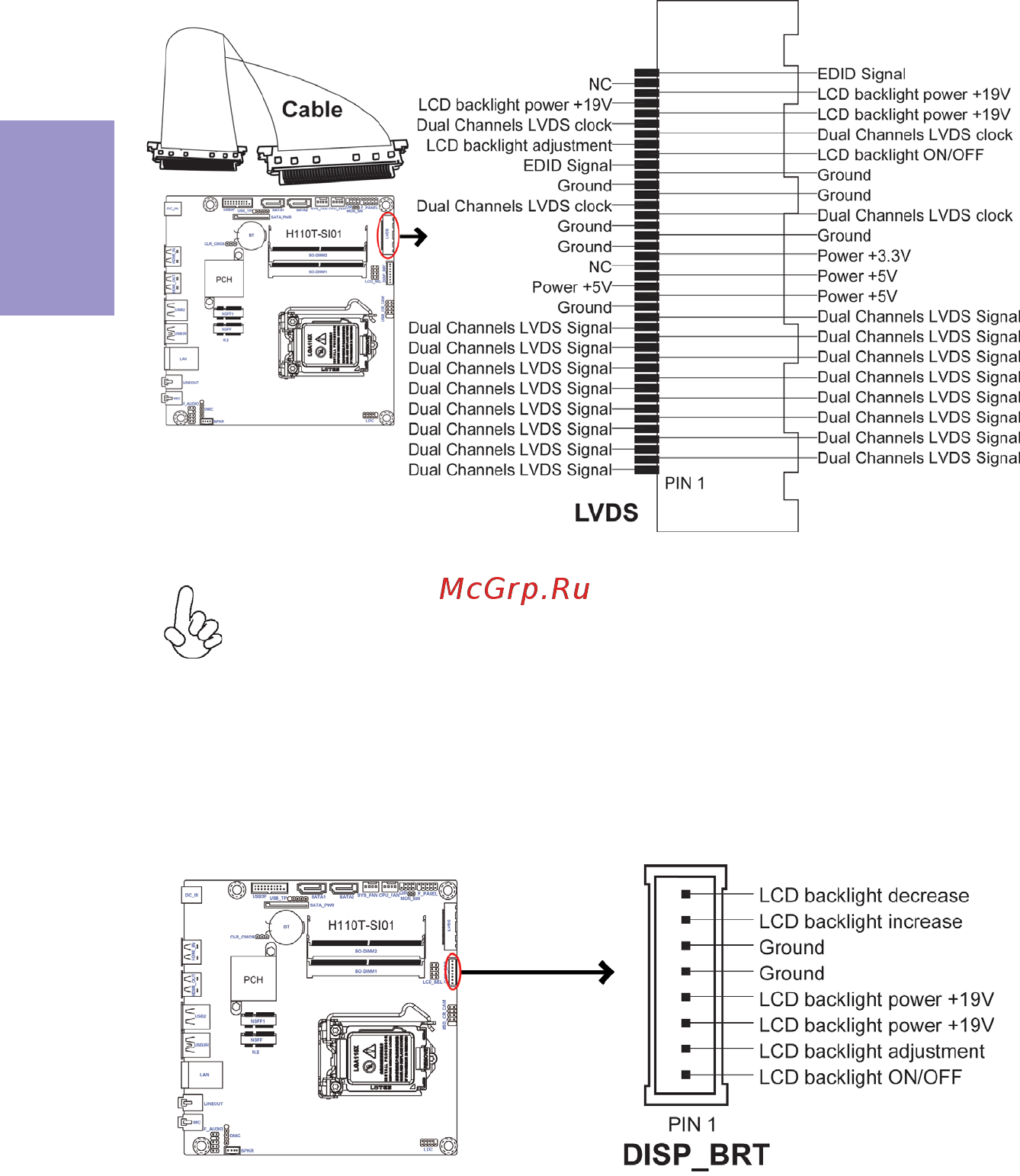

5. DISP_BRT: LVDS brightness control header (For All-In-One Specification)

4. LVDS: LVDS connector (For All-In-One Specification)

1. You can connect the large end of the cable to the LED Panel, and connect

the other small end to the slot on the motherboard.

2.Due to the chipset limitation, using dual displays LVDS(AIO) + VGA or

LVDS(AIO) + HDMI will cause the problem that you may not enter BIOS setup

or have the display problem.
