ECS Elitegroup H110T-SI01 [31/64] H110t si01 user manual

Chapter 2

H110T-SI01 USER MANUAL

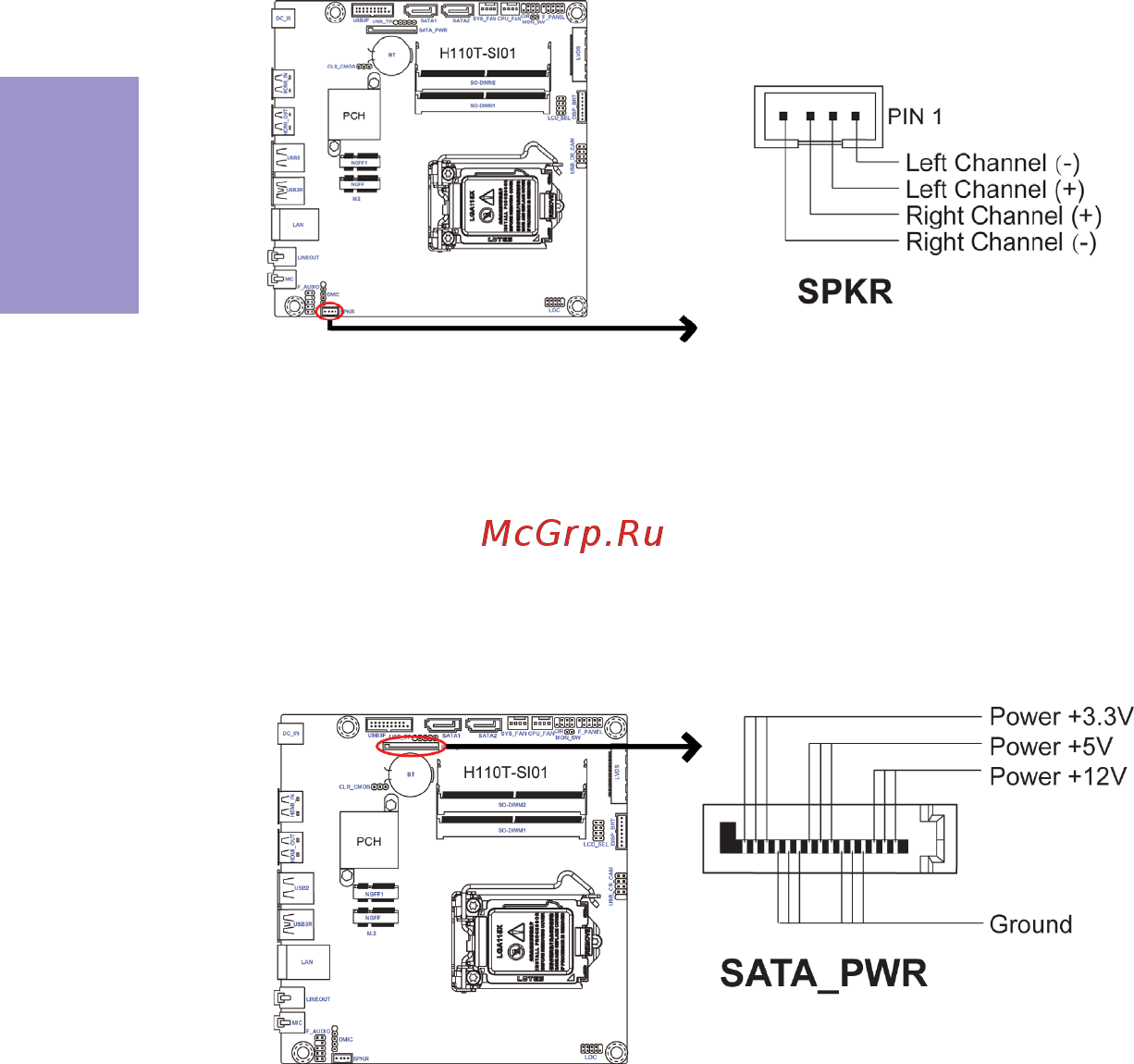

Connect the case speaker cable to SPKR.

4. SPKR: 2 Channel audio speaker header (For All-In-One Specification)

This concludes Chapter 2. The next chapter covers the BIOS.

5. SATA_PWR: SATA power connector
