ECS Elitegroup H110T-SI01 [22/64] H110t si01 user manual

Chapter 2

H110T-SI01 USER MANUAL

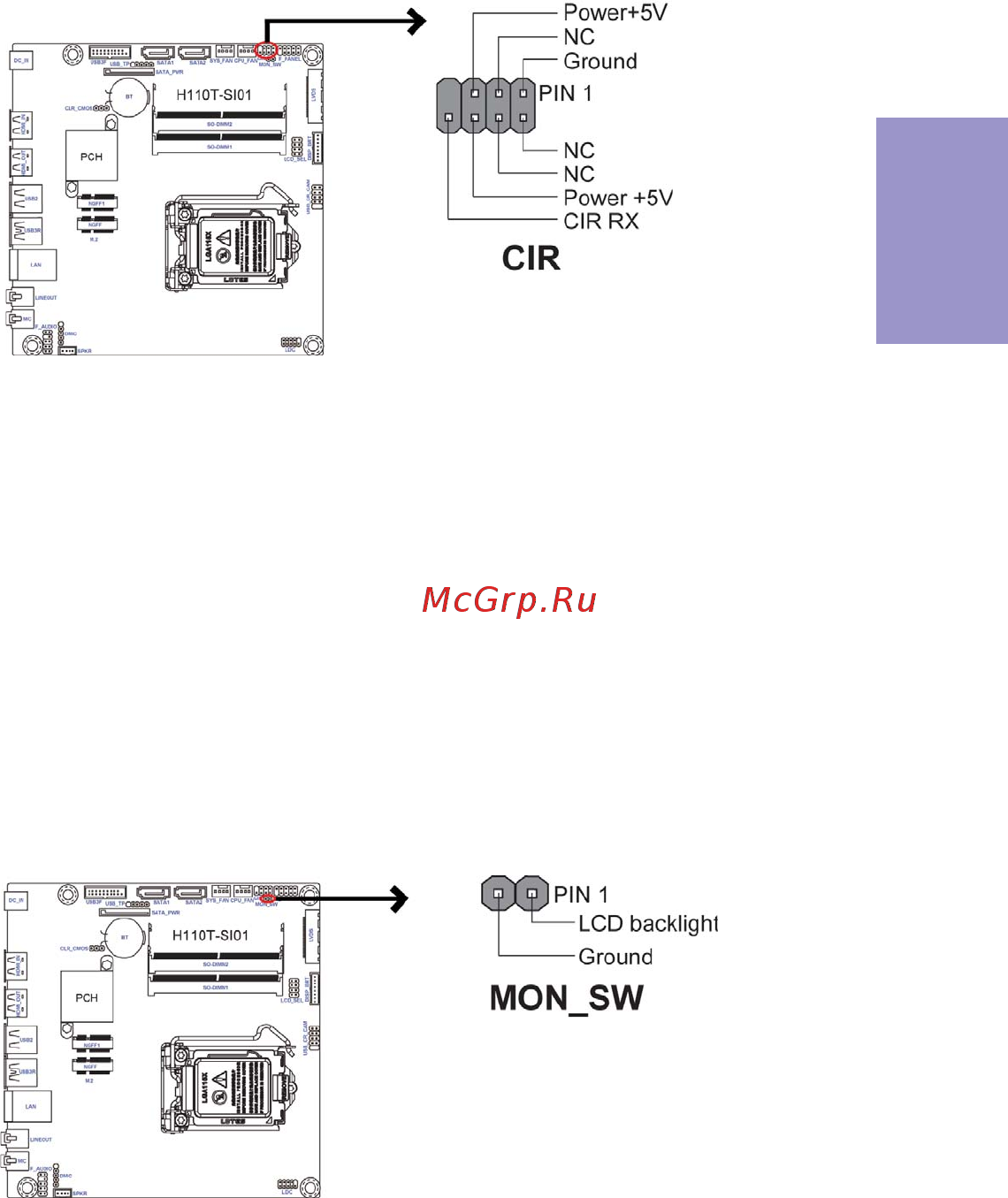

2. CIR: Consumer infrared header

3. MON_SW: LVDS brightness switch header (For All-In-One Specification)
