Chapter 2

H110T-SI01 USER MANUAL

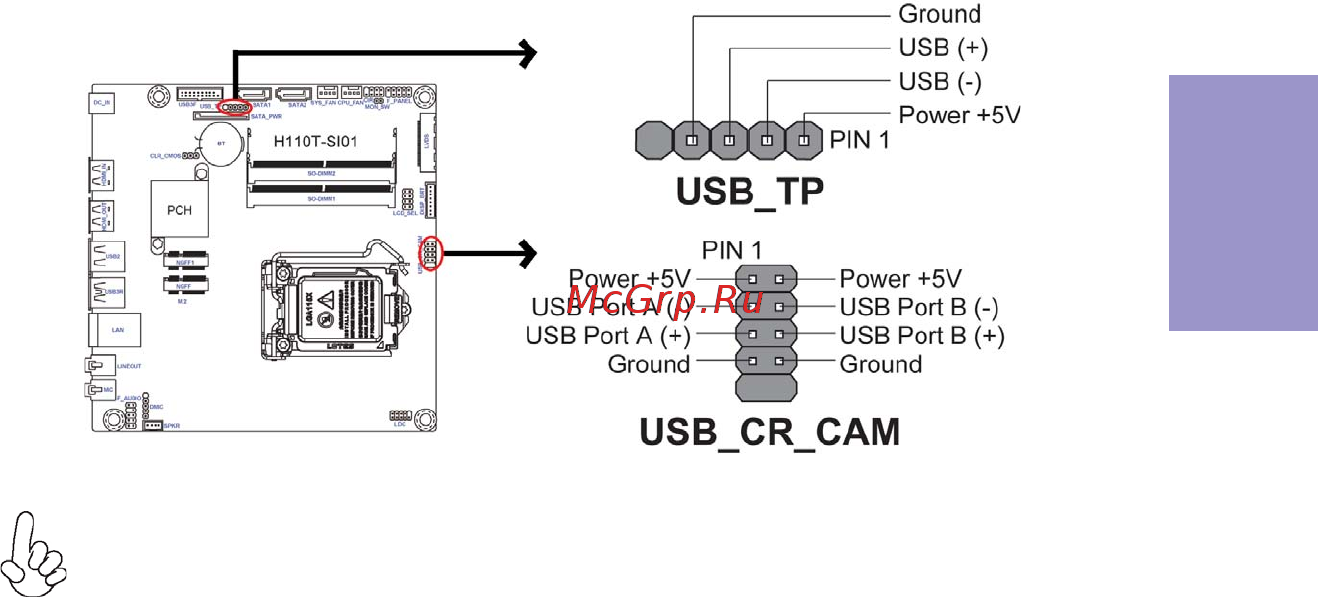

6 & 11. USB_CR_CAM (10-pin USB 2.0 header supports card reader and camera

or other USB 2.0 devices) & USB_TP (5-pin USB 2.0 header supports one USB

2.0 device)

Users please note to install the card to the correct header.
