Chapter 1
6
A85F2-A DELUXE (GOLDEN) USER MANUAL

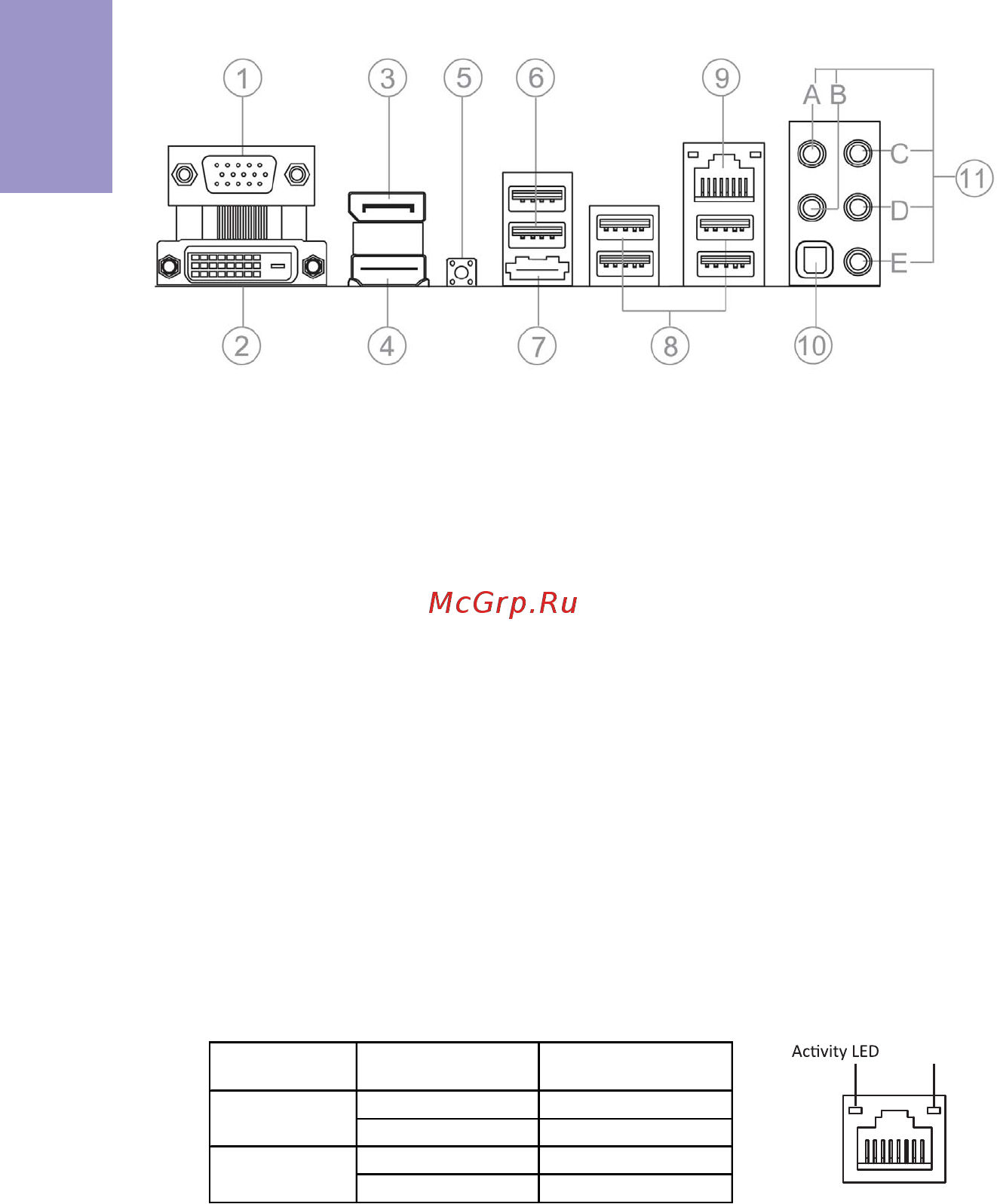

I/O Ports
1. VGA Port
You can connect the display device to the VGA port.
2.
DVI Port
You can connect the display device to the DVI port.
3. DP Port
You can connect the display device to the DP port.
4.
HDMI Port
You can connect the display device to the HDMI port.
5.
CLR_CMOS_BTN
Use the CLR_CMOS button to clear CMOS.
6. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
7.
eSATA 6Gb/s Port
Use this port to connect to external SATA boxes or SATA port multipliers.
8. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
9. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
10. Optical SPDIF Output Port
This jack connects to external optical digital audio output devices.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
