Chapter 2

A85F2-A DELUXE (GOLDEN) USER MANUAL

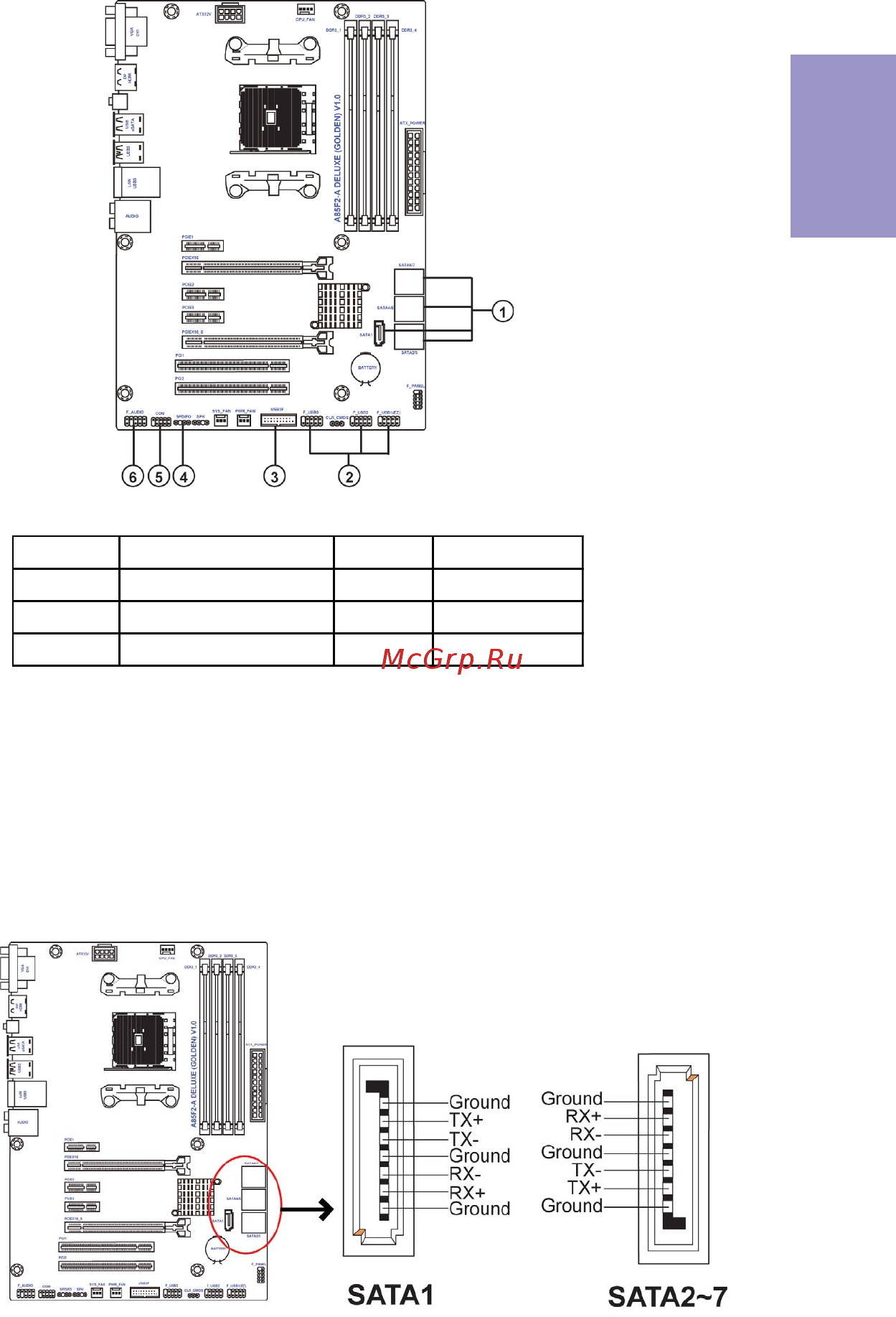

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1SATA1~74SPDIFO

2 F_USB1(EZ) & F_USB2 ~3 5 COM

3USB3F6F_AUDIO

SATA1~7 connectors are used to support the Serial ATA 6.0Gb/s device, simpler disk

drive cabling and easier PC assembly. It eliminates limitations of the current Paral-

lel ATA interface. But maintains register compatibility and software compatibility

with Parallel ATA.

1. SATA1~7: Serial ATA connectors
