The motherboard has three USB 2.0 headers supporting six USB 2.0 ports. Addition-

ally, some computer cases have USB ports at the front of the case. If you have this

kind of case, use auxiliary USB connector to connect the front-mounted ports to the

motherboard.

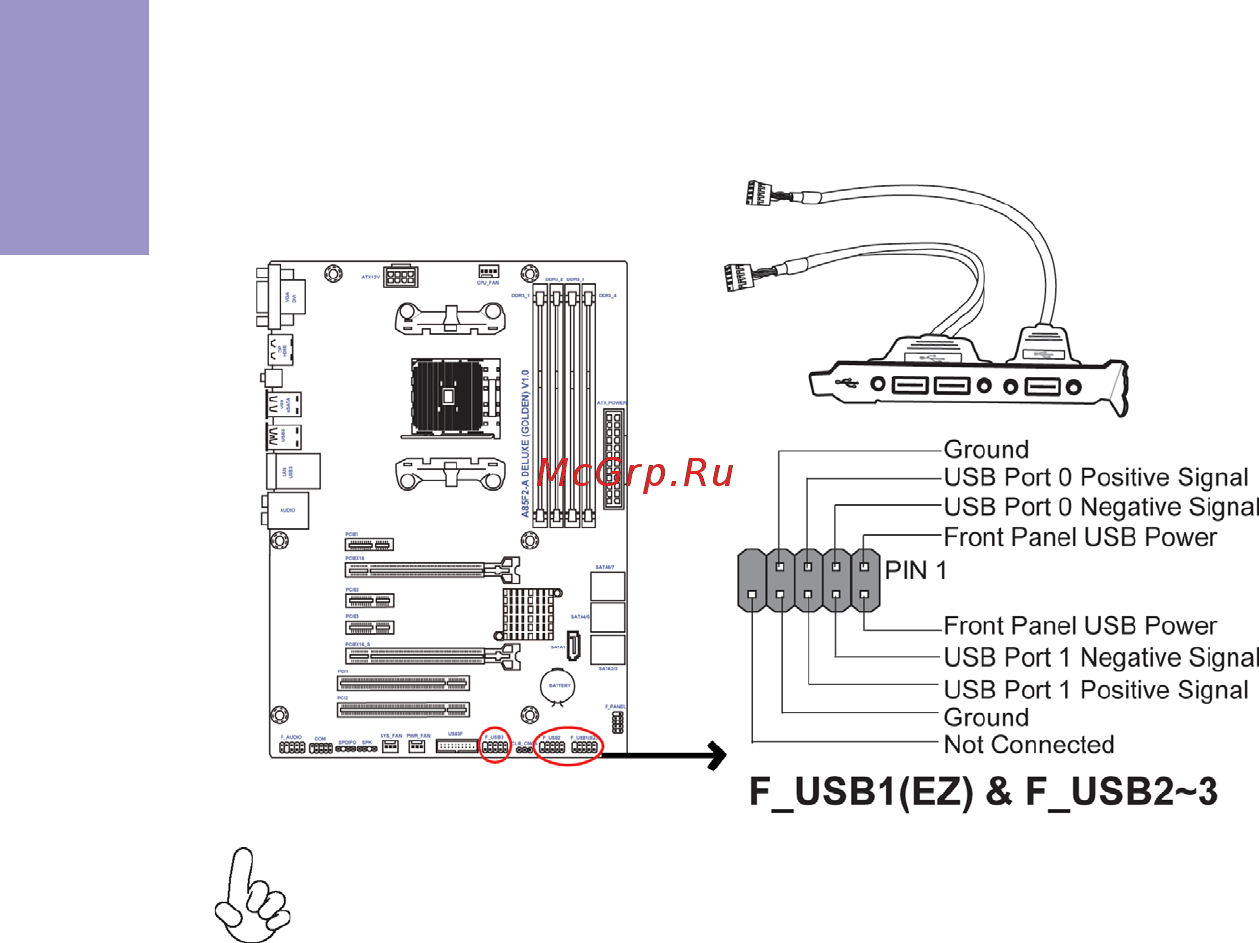

2. F_USB1(EZ) & F_USB2~3: Front Panel USB 2.0 headers

Please make sure that the USB cable has the same pin assignment as indi-

cated above. A different pin assignment may cause damage or system hang-

up.

Unlike F_USB2~3 in this mainboard, F_USB1(EZ) supports EZ Charger technology, pro-

vides 3 times current than general USB port in off mode for USB devices. It is useful

and excellent, especially for the iPhone, iPad and iPod touch devices that need a

large amount of current for faster recharging within less time.
