Chapter 2

A85F2-A DELUXE (GOLDEN) USER MANUAL

1. CPU_FAN (CPU cooling FAN Power Connector) & 3. SYS_FAN (System Cooling

FAN Power Connector) & 4. PWR_FAN (Power Cooling FAN Power Connector)

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

Connect the CPU cooling fan cable to CPU_FAN.

Connect the system cooling fan connector to SYS_FAN.

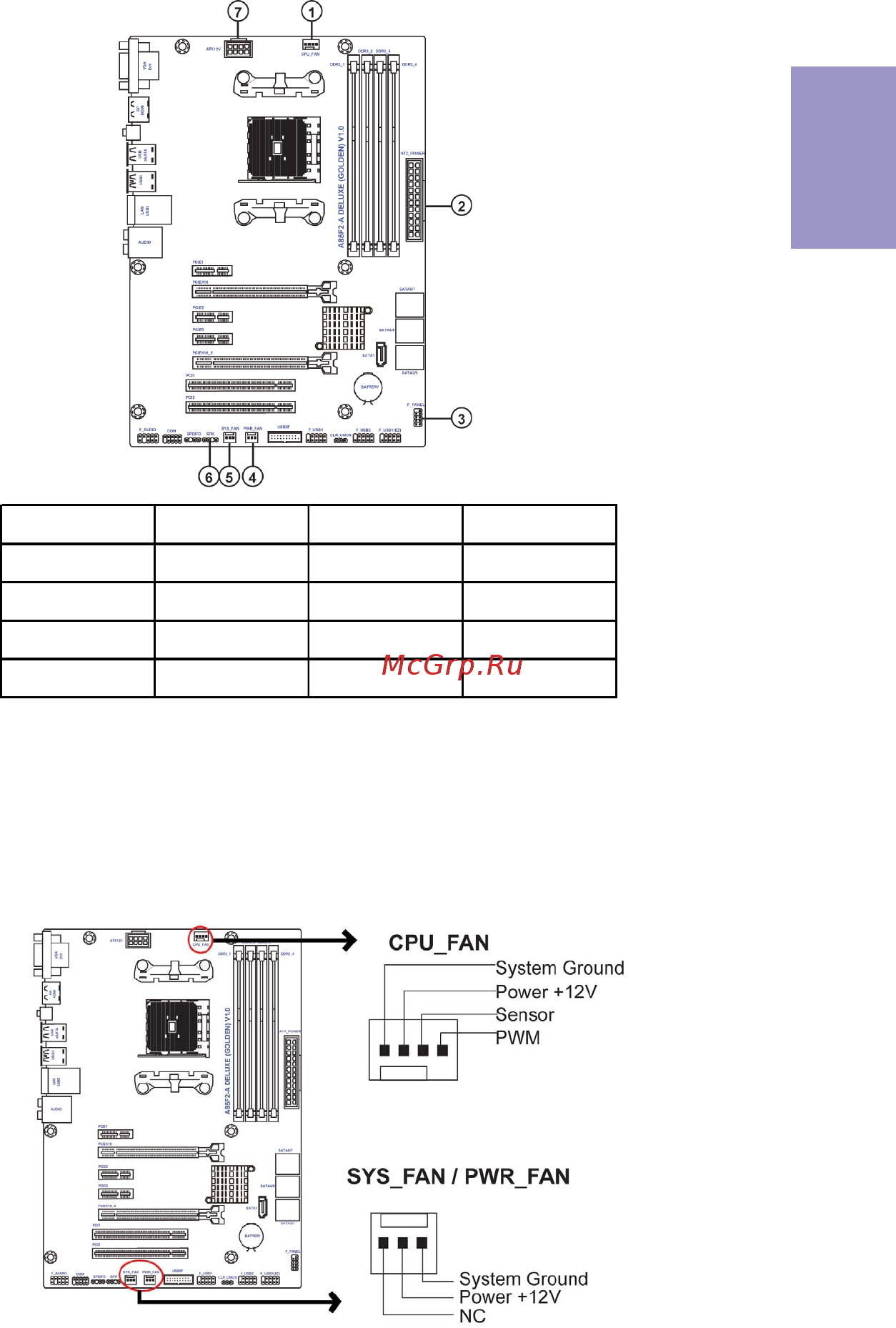

2-4-7. Connecting Case Components

No. Components No. Components

1 CPU_FAN 5 SYS_FAN

2ATX_POWER6 SPK

3 F_PANEL 7 ATX_12V

4PWR_FAN

Connect the power cooling fan connector to PWR_FAN.
