Chapter 2

A85F2-A DELUXE (GOLDEN) USER MANUAL

Connect the case speaker cable to SPK.

6. SPK: Speaker Header

The ATX 24-pin connector allows you to connect to ATX v2.x power supply.

With ATX v2.x power supply, users please

note that when installing 24-pin power

cable, the latches of power cable and the

ATX match perfectly.

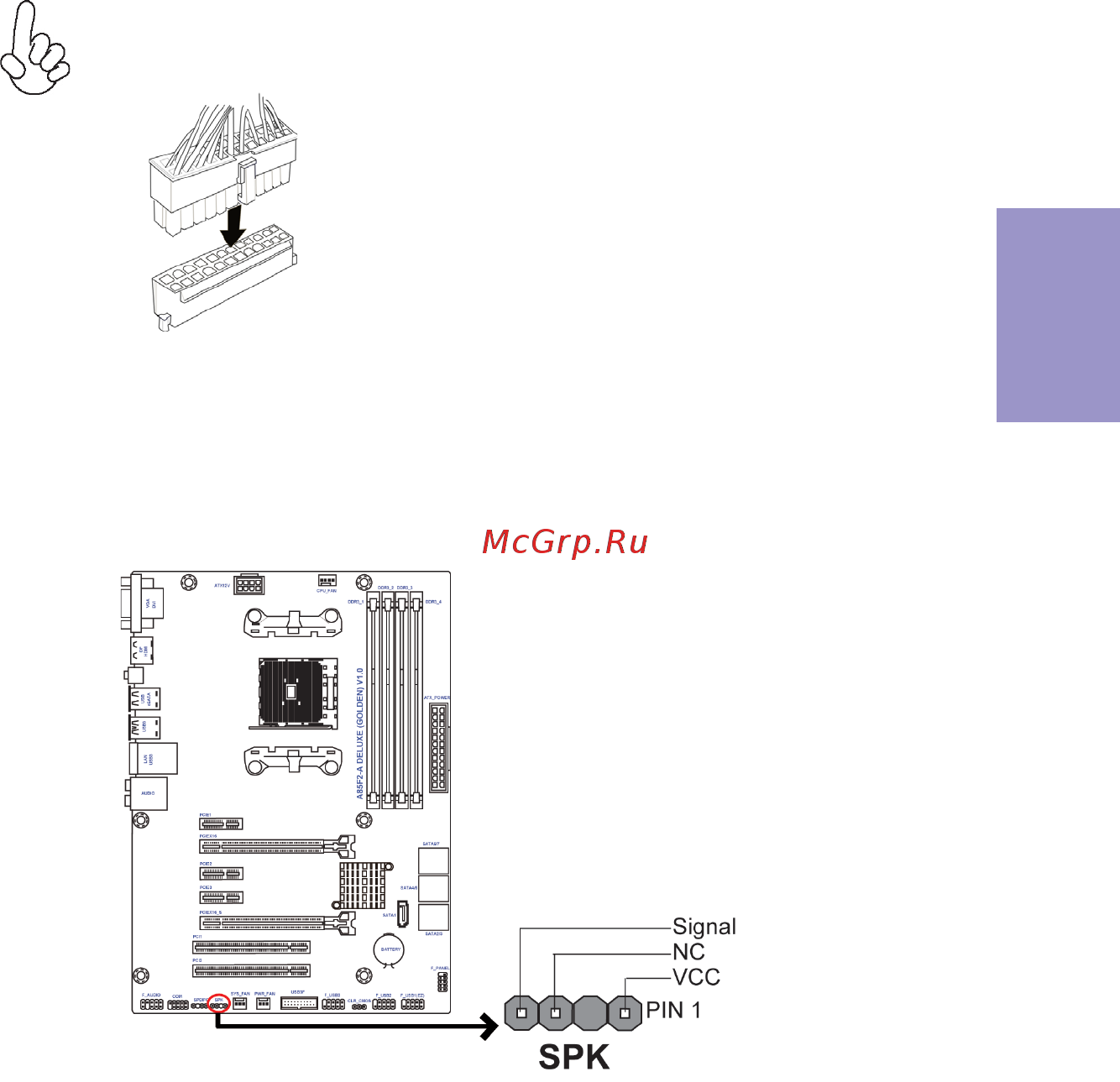

Connecting 24-pin power cable

24-pin power cable
