Chapter 2

A85F2-A DELUXE (GOLDEN) USER MANUAL

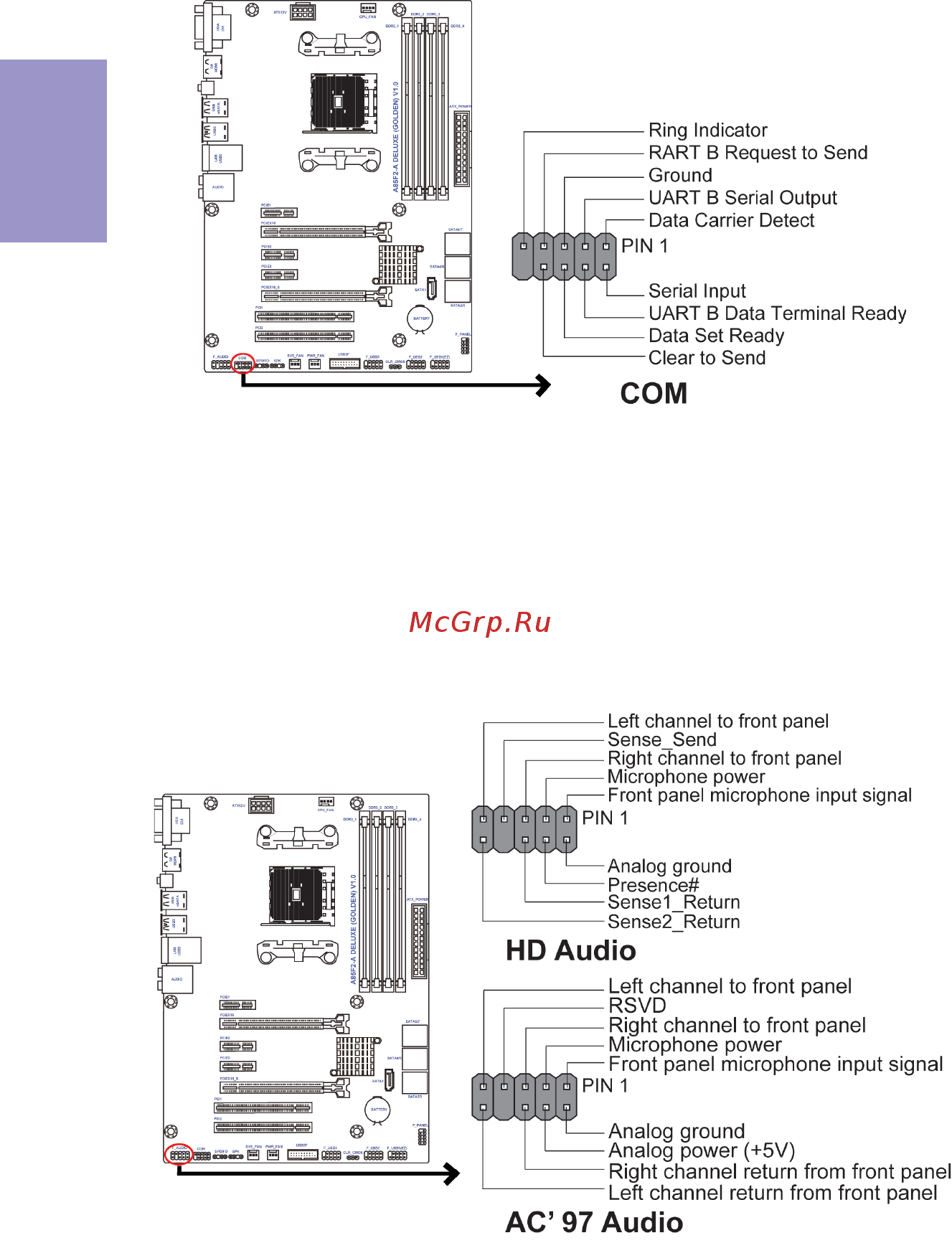

6. F_AUDIO: Front Panel Audio Header

The front panel audio header allows the user to install auxiliary front-oriented mi-

crophone and line-out ports for easier access. This header supports HD audio by

default. If you want connect an AC

’ 97 front panel audio to HD onboard headers,

please set as below picture.

5. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.
