1-12
Chapter 1: Product Introduction
Chapter 1

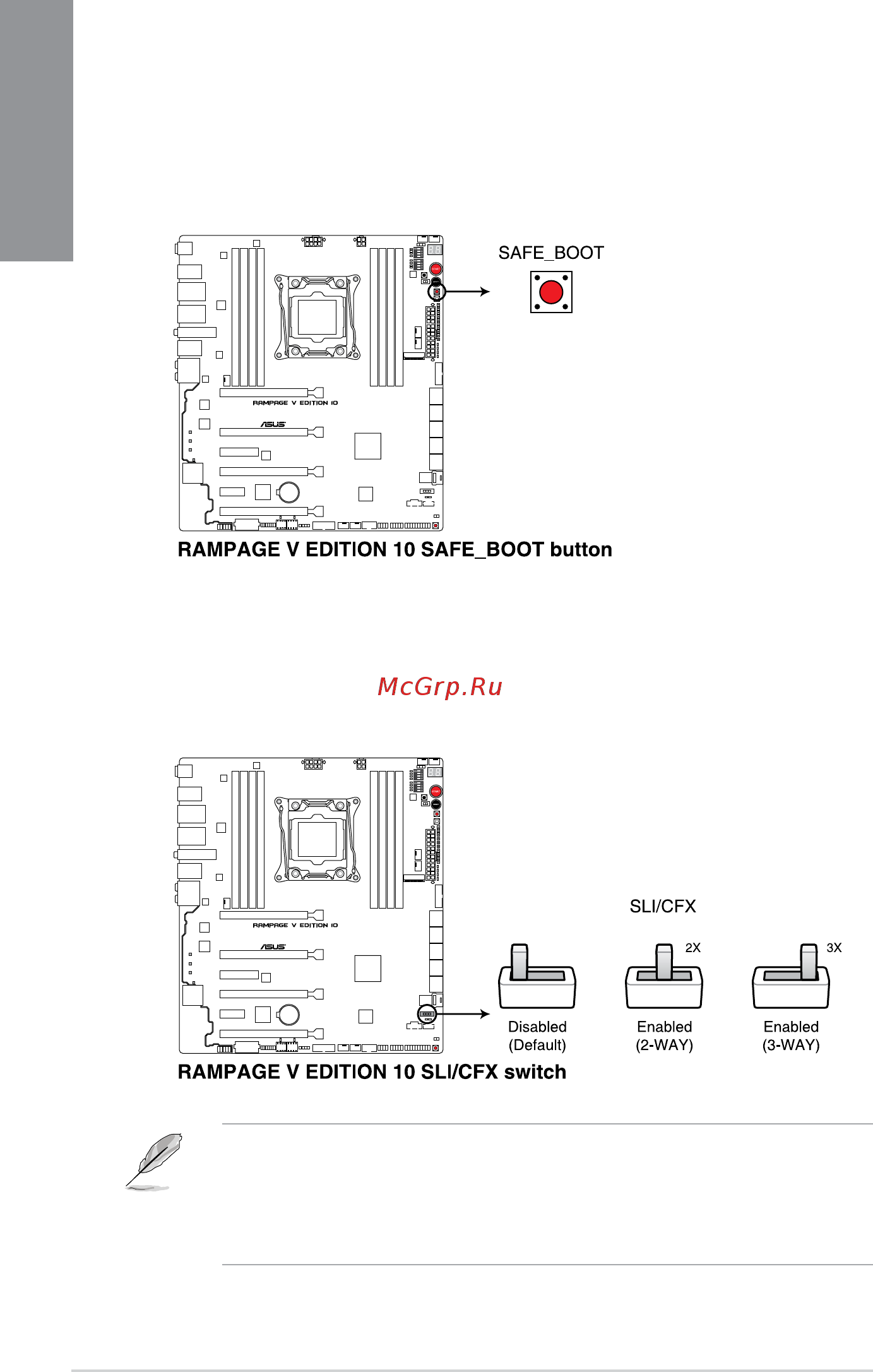

6. Safe Boot button (SAFE_BOOT)
TheSafeBootbuttoncanbepressedanytimetoforcethesystemtorebootintothe
BIOSsafemode.ThisbuttontemporarilyappliessafesettingstotheBIOSwhile
retaininganyoverclockedsettingsallowingyoutomodifythesettingscausingboot
failure.Usethisbuttonwhenoverclockingortweakingthesettingsofyoursystem.
7. SLI/CFX switch (SLI/CFX)
Thisswitchallowsyoutodeterminetheslotsfor2-WAYor3-WAYgraphicscard
installation.Whenenabled,thePCIELEDsneartheslotslightup,tellingyoutoinstall
thegraphicscardstothespecicslots.
• TheLEDsbelowtheSLI/CFXswitchandnearthePCIEslotslightupwhentheSLI/
CFXswitchisenabled.Refertosection1.1.7 Onboard LEDsfortheexactlocationof
theSLI/CFXandPCIELEDs.
• AfteradjustingPCIEbandwidthintheBIOS,shutdownthesystemforthePCIELEDs
to update the lighting effect.
