Asus rog rampage v edition 10 [56/130] Chapter 2

2-2

Chapter 2: Basic Installation

Chapter 2

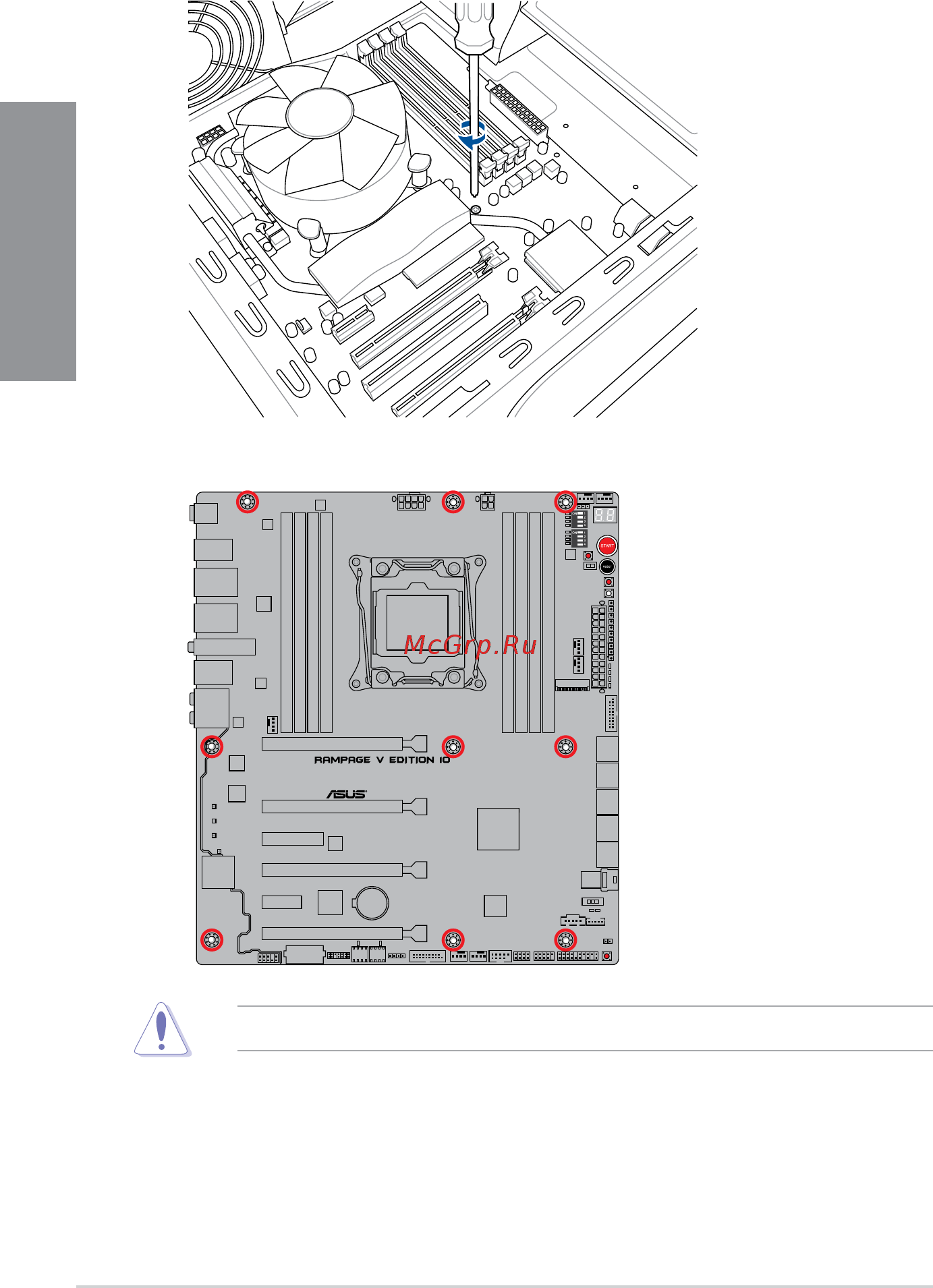

3. Place nine (9) screws into the holes indicated by circles to secure the motherboard to

the chassis.

DO NOT overtighten the screws! Doing so can damage the motherboard.
