ASUS RAMPAGE V EDITION 10
1-27
Chapter 1

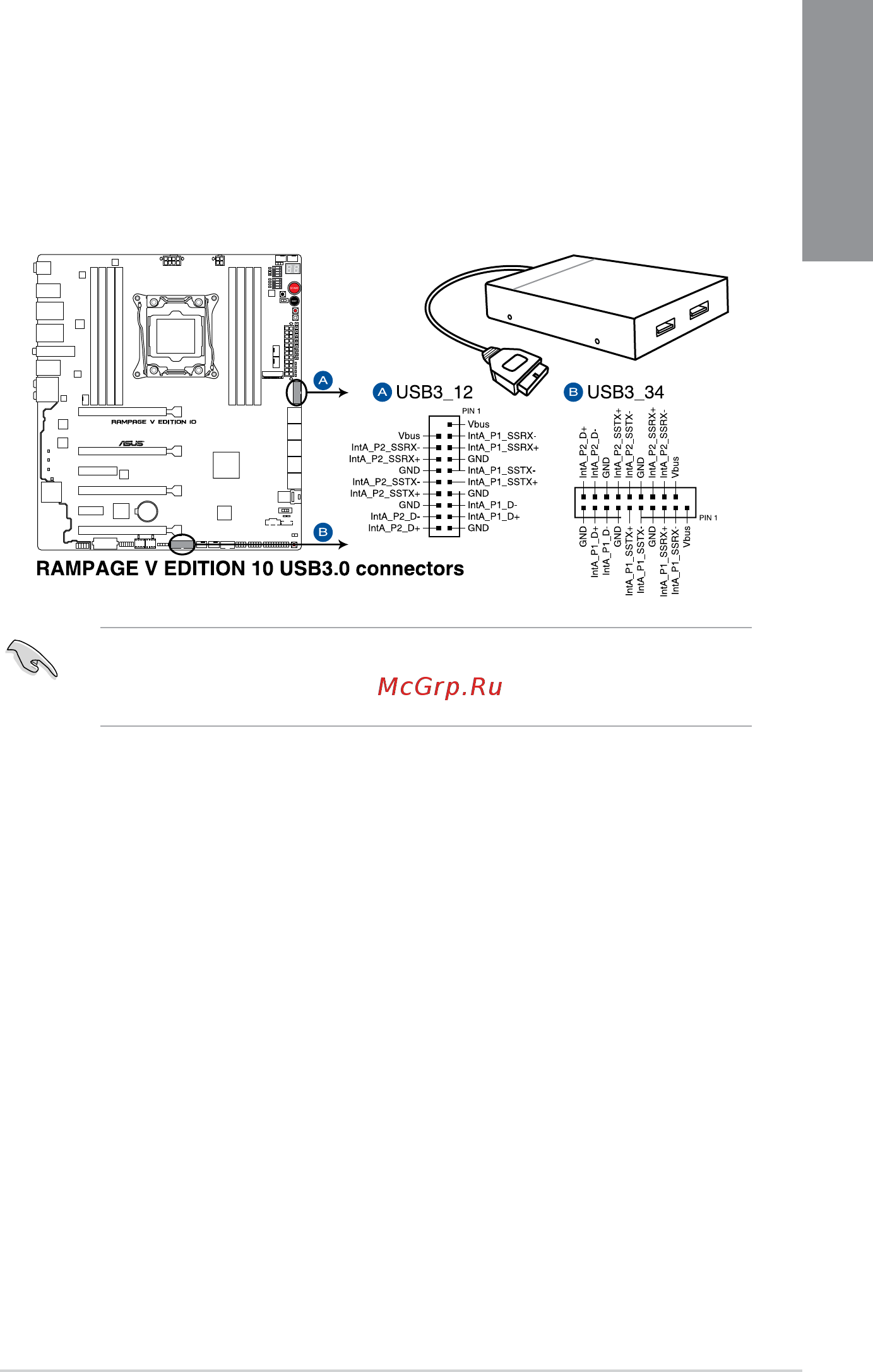

4. USB 3.0 connector (20-1 pin USB3_12, USB3_34)
ThisconnectorallowsyoutoconnectaUSB3.0moduleforadditionalUSB3.0front
orrearpanelports.WithaninstalledUSB3.0module,youcanenjoyallthebenetsof
USB3.0includingfasterdatatransferspeedsofupto5Gbps,fasterchargingtimefor
USB-chargeabledevices,optimizedpowerefciency,andbackwardcompatibilitywith
USB2.0.
• TheUSB3.0moduleispurchasedseparately.
• TheseconnectorsarebasedonxHCIspecication.Werecommendyoutoinstallthe
relateddrivertofullyusetheUSB3.0portsunderWindows
®
7.
