2-16
Chapter 2: Basic Installation
Chapter 2

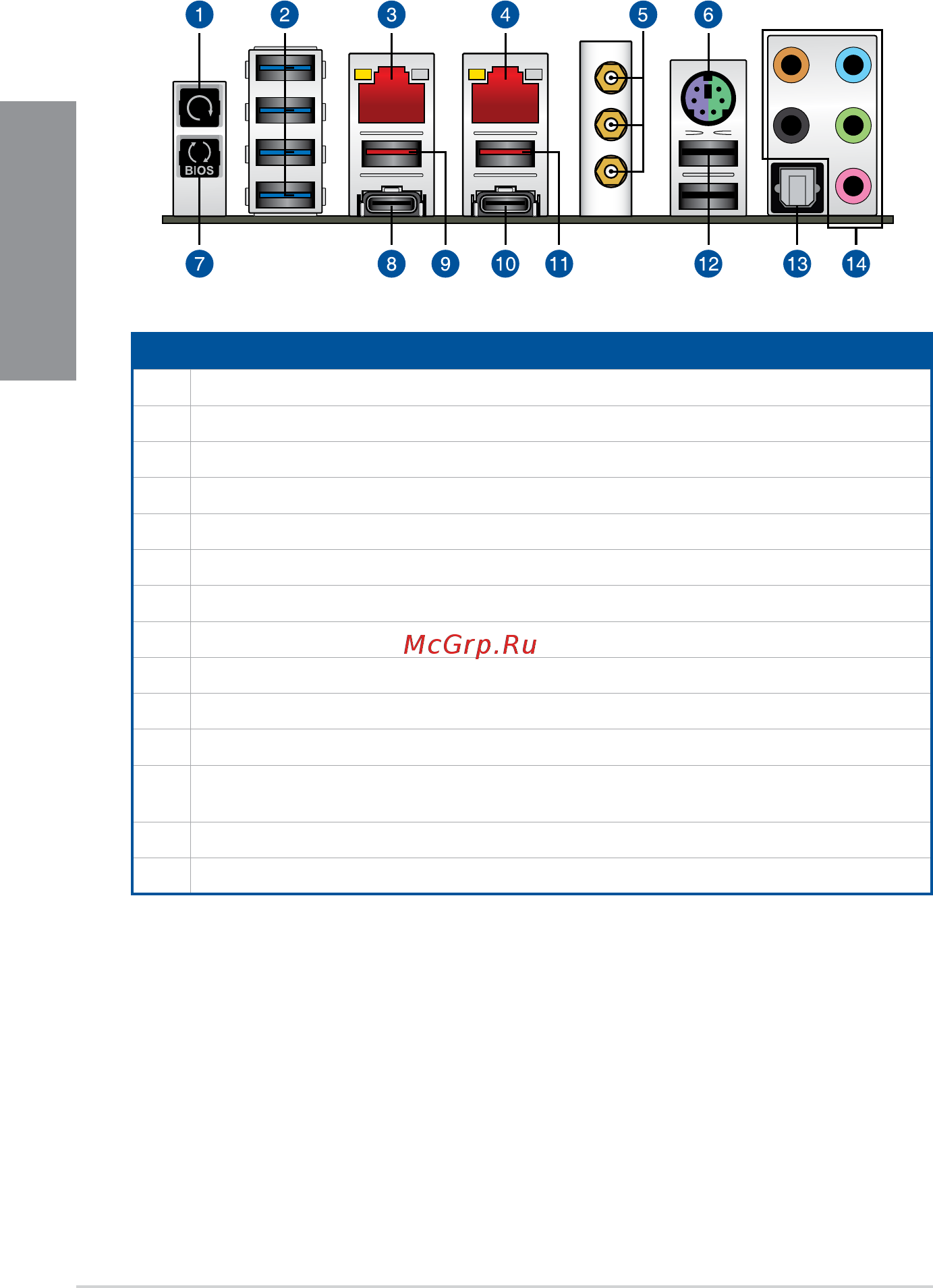

2.3 Motherboard rear and audio connections
2.3.1 Rear I/O connection
Rear panel connectors
1.
ClearCMOSbutton
2.
ASMedia
®
USB3.0portsE1234.SupportsUSB3.0Boost.
3.
Intel
®
LAN(RJ-45)port*
4.
Intel
®
LAN(RJ-45)port*
5. Wi-Fi802.11a/b/g/n/ac,BluetoothV4.0
6. PS/2Keyboard/Mousecomboport
7. USBBIOSFlashbackbutton
8. ASMedia
®
USB3.1Type-CportEC1.SupportsUSB3.1Boost.
9. ASMedia
®
USB3.1Type-AportEA2.SupportsUSB3.1Boost.
10. ASMedia
®
USB3.1Type-CportEC3.SupportsUSB3.1Boost.
11. ASMedia
®
USB3.1Type-AportEA4.SupportsUSB3.1Boost.
12.
Intel
®
USB2.0ports7and8.UpperportsupportstheKeyBotIIfeature,andlower
portsupportsUSBBIOSFlashbackfunction.
13. OpticalS/PDIFOUTport
14. AudioI/Oports**
* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
