Asus rog rampage v edition 10 [33/130] Onboard leds

ASUS RAMPAGE V EDITION 10

1-15

Chapter 1

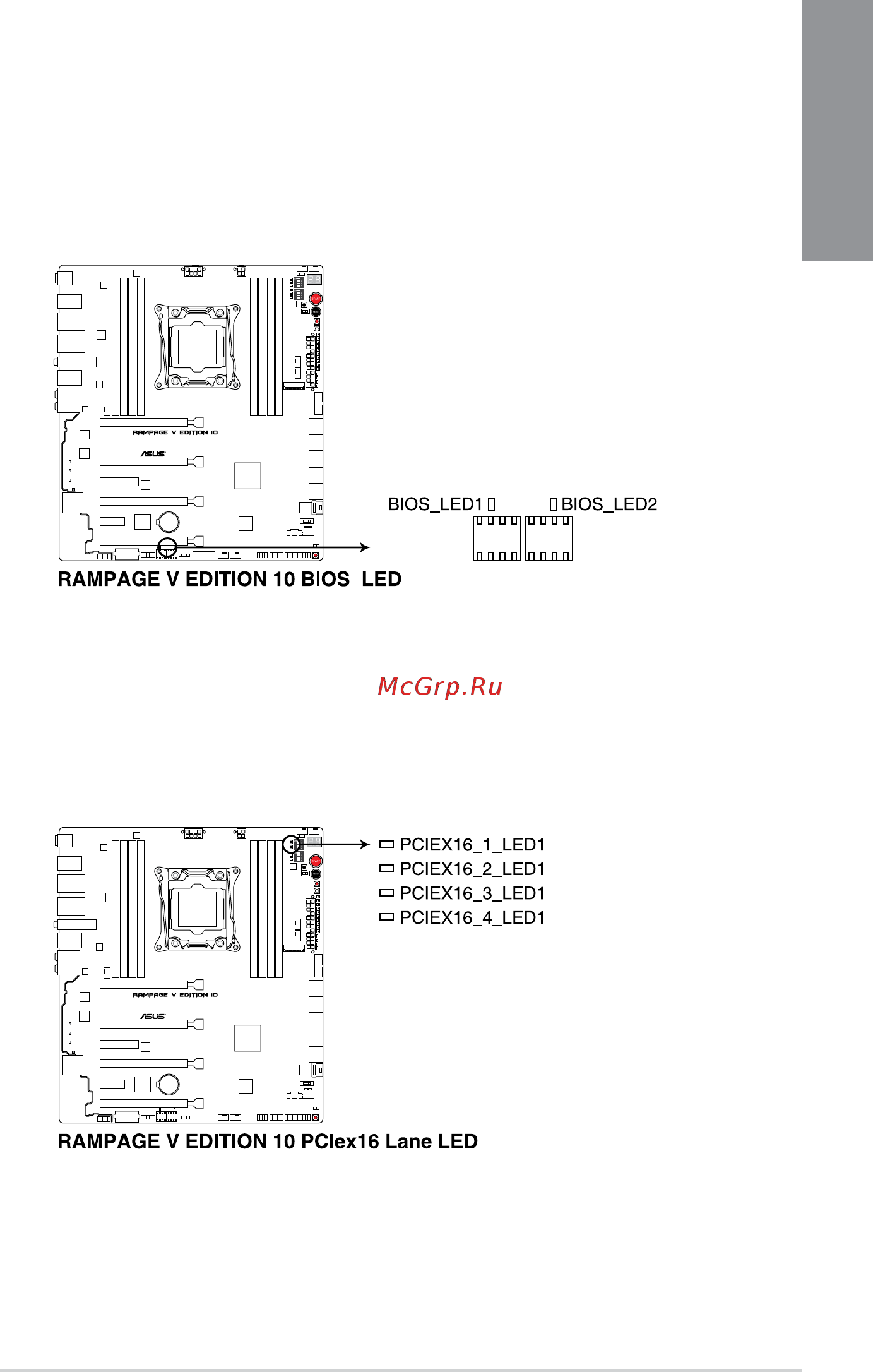

1.1.7 Onboard LEDs

1. BIOS LEDs (BIOS_LED1-2)

TheBIOSLEDshelpindicatetheBIOSactivity.PresstheBIOSbuttontoswitch

betweenBIOS1andBIOS2andtheLEDlightsupwhenthecorrespondingBIOSisin

use.

2. PCIex16 lane LED indicator (PCIEX16_1_LED1; PCIEX16_2_LED1; PCIEX16_3_

LED1; PCIEX16_4_LED1)

IndicatesthePCIElaneused.
