Asus rog rampage v edition 10 [98/130] Usb configuration

3-22

Chapter 3: BIOS Setup

Chapter 3

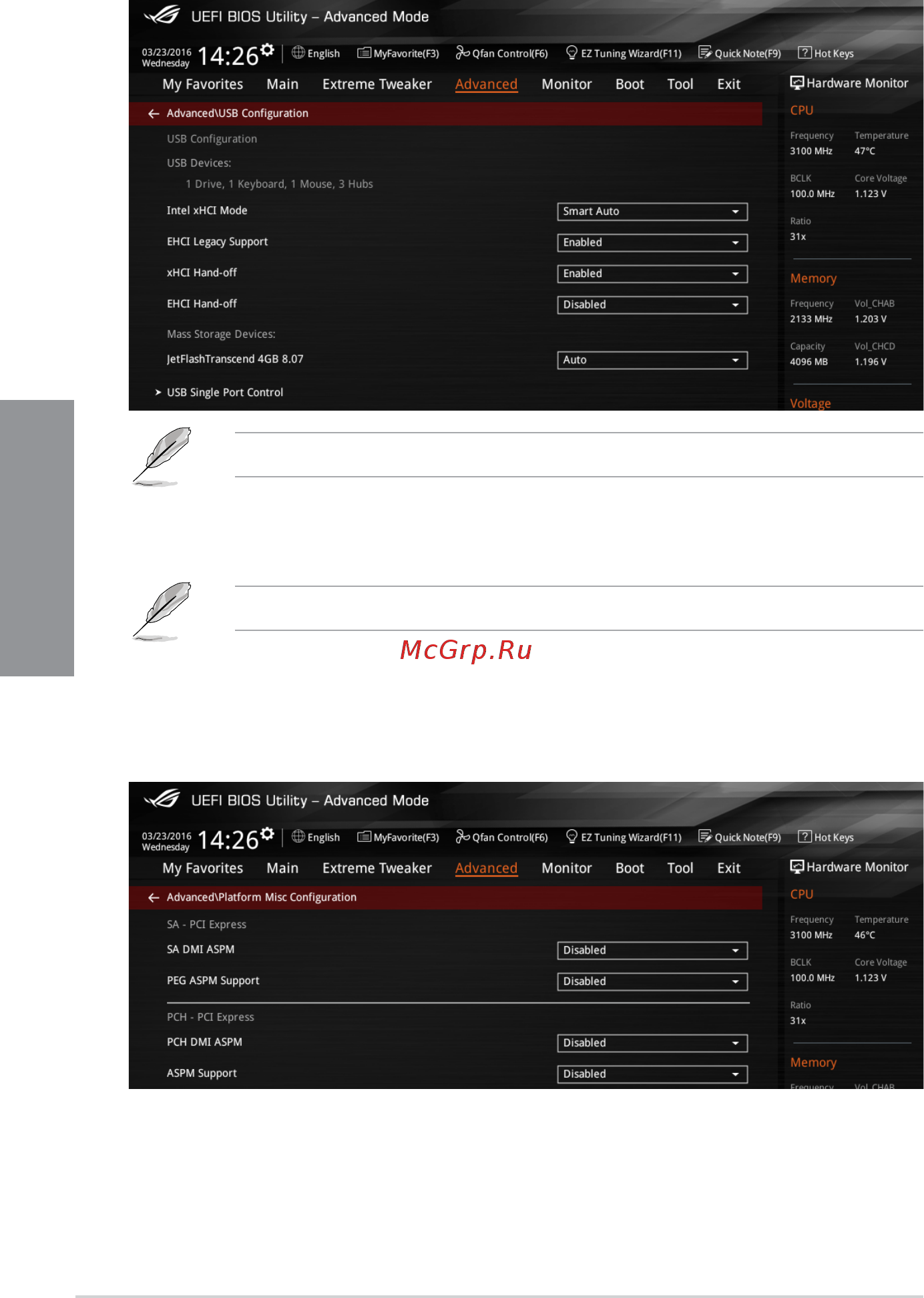

3.6.5 USB Configuration

The items in this menu allow you to change the USB-related features.

The Mass Storage Devices item will only appear when a USB device is detected.

USB Single Port Control

This item allows you to enable or disable the individual USB ports.

Refer to section 1.1.2 Motherboard layout for the location of the USB ports.

3.6.6 Platform Misc Configuration

The items in this menu allow you to congure the platform-related features.
