6
General Installation Process
2.5" HDD
d3
d4
2.5" HDD
Install
Hard Drives ...continued

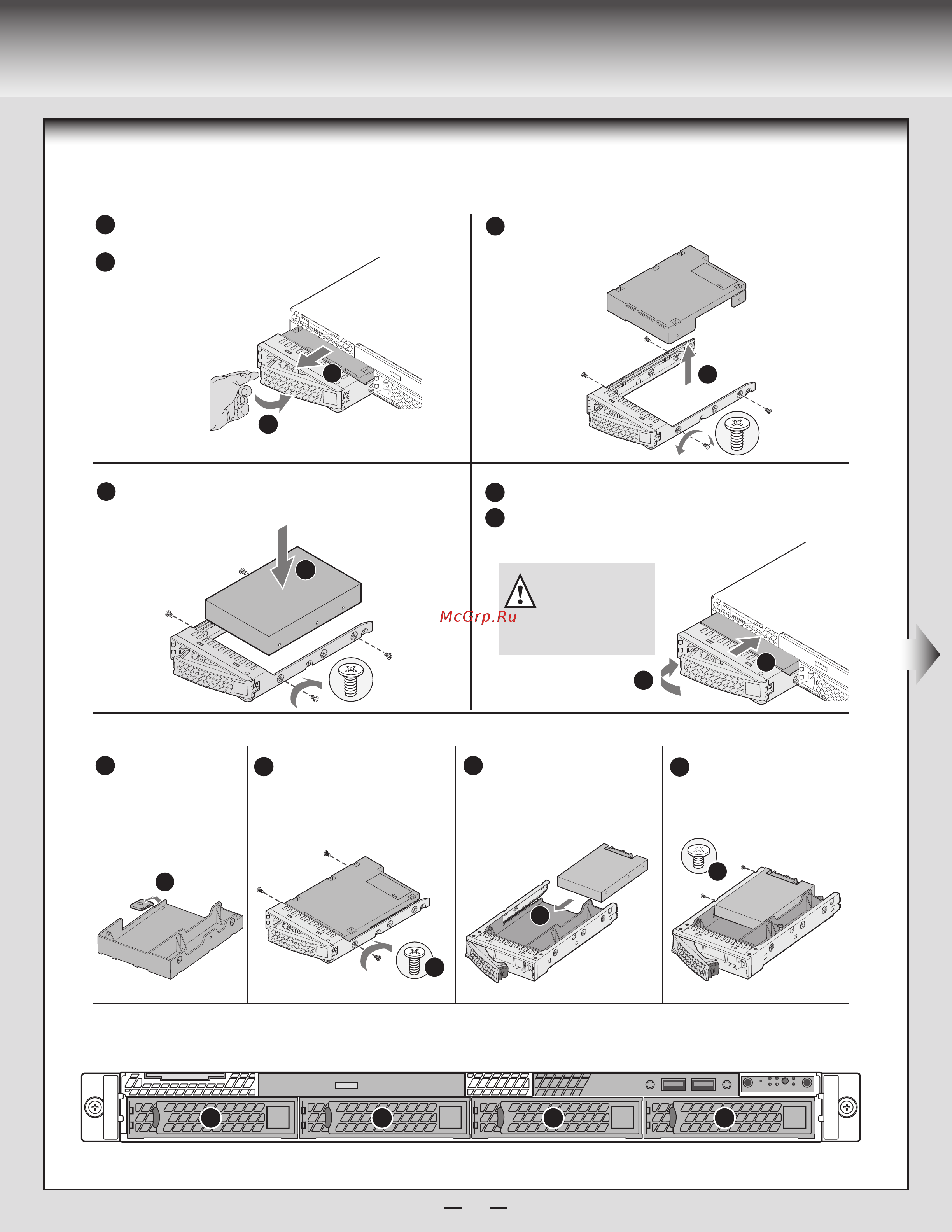

3.5" Hard Drive Carrier (For system with 3.5" Hot Swap hard drive bay only)
Hard Drive Numbering Diagram
Drive 0 Primary
A
B
Remove the drive carrier by pressing the green button and opening
the lever.
E
F
Slide the carrier out.
TOP
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
C
Remove the four screws securing the HDD interface bracket and remove
the HDD interface bracket.
Install 2.5” Hard Drive as option:
3.5´´ HDD
D
D
Install the hard disk drive using the same four screws as shown. Make
sure the connector end of the drive matches the backplane connector.
With the lever open, insert the hard disk drive assembly into the chassis.
Push in the lever to lock it into place.
4 x 3.5” hard drive bay as shown
CAUTION: If you do not
install all drives, empty drive
bays must be occupied by
carriers with plastic drive
blank provided to maintain
proper system cooling.
d1
d4
d2
d3
Install the HDD interface bracket
from top. Secure the bracket with
three screws as shown.
Slide the 2.5” HDD into the
bracket to align the screw holes
with the right and the left rail.
Break off the tab on the
HDD interface bracket.
Secure the hard disk drive using
the four screws for 2.5” HDD.
d1
Bottom
View
TOP
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
d2
TOP
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
A
B
F
E
0 1 2 3
C
