Intel r1208rpmshor934323 [23/44] Intel server system r1000rp family quick installation user s guide
![Intel r1304rpssfbn [23/44] Intel server system r1000rp family quick installation user s guide](/views2/1219989/page23/bg17.png)
*

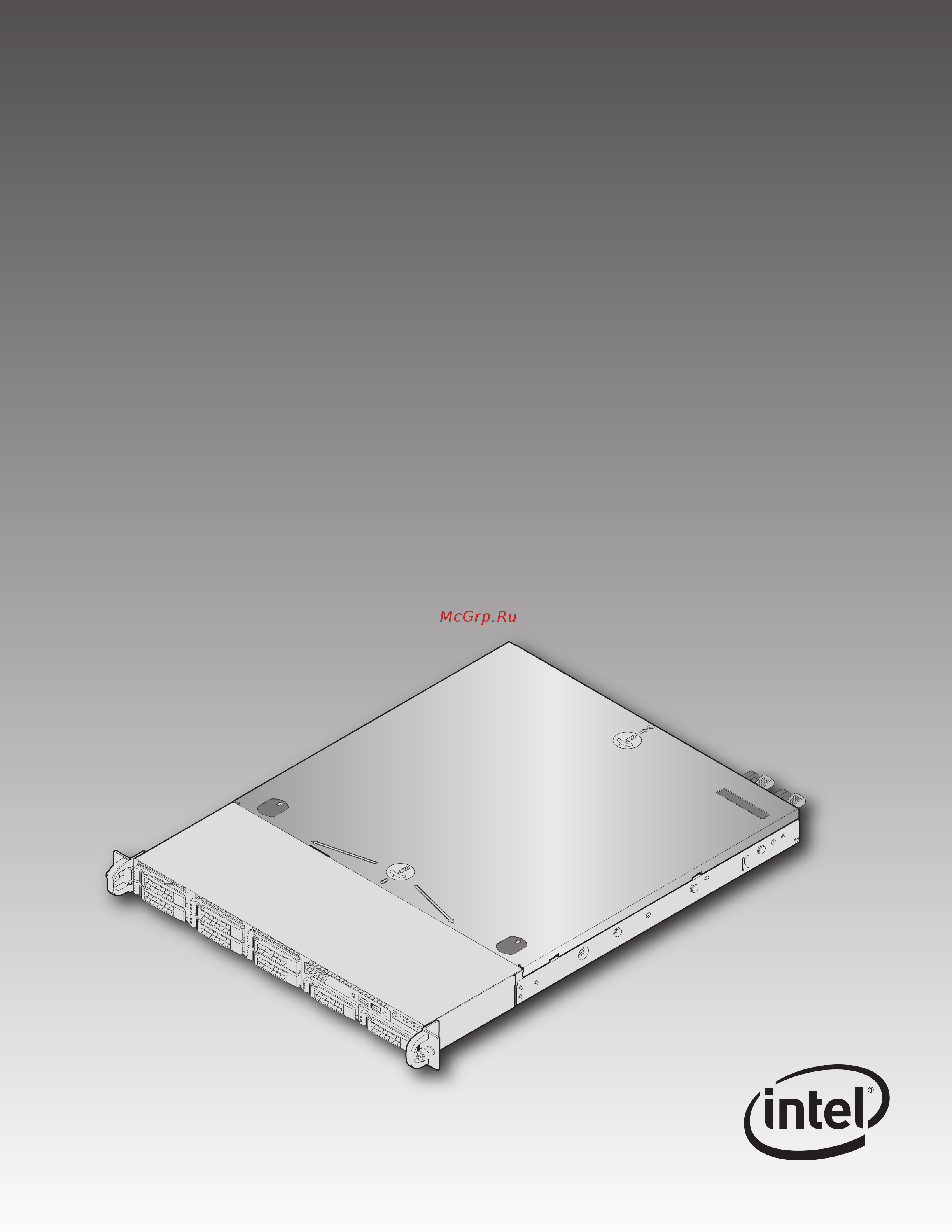

2.5" hard drive bay system as shown
Thank you for buying an Intel® Server System. The following information will help you
assemble your Intel® Server System and install components.
If you are not familiar with ESD [ElectroStatic Discharge] procedures used during
system integration, see the complete ESD procedures described in your Service Guide.
This guide and other supporting documents are located on the web at:
http://www.intel.com/p/en_US/support/.
Intel® Server System R1000RP Family
Quick Installation User's Guide
G85599-002
