Intel r1208rpmshor934323 [12/44] General installation process
![Intel r1304rpssfbn [12/44] General installation process](/views2/1219989/page12/bgc.png)
8

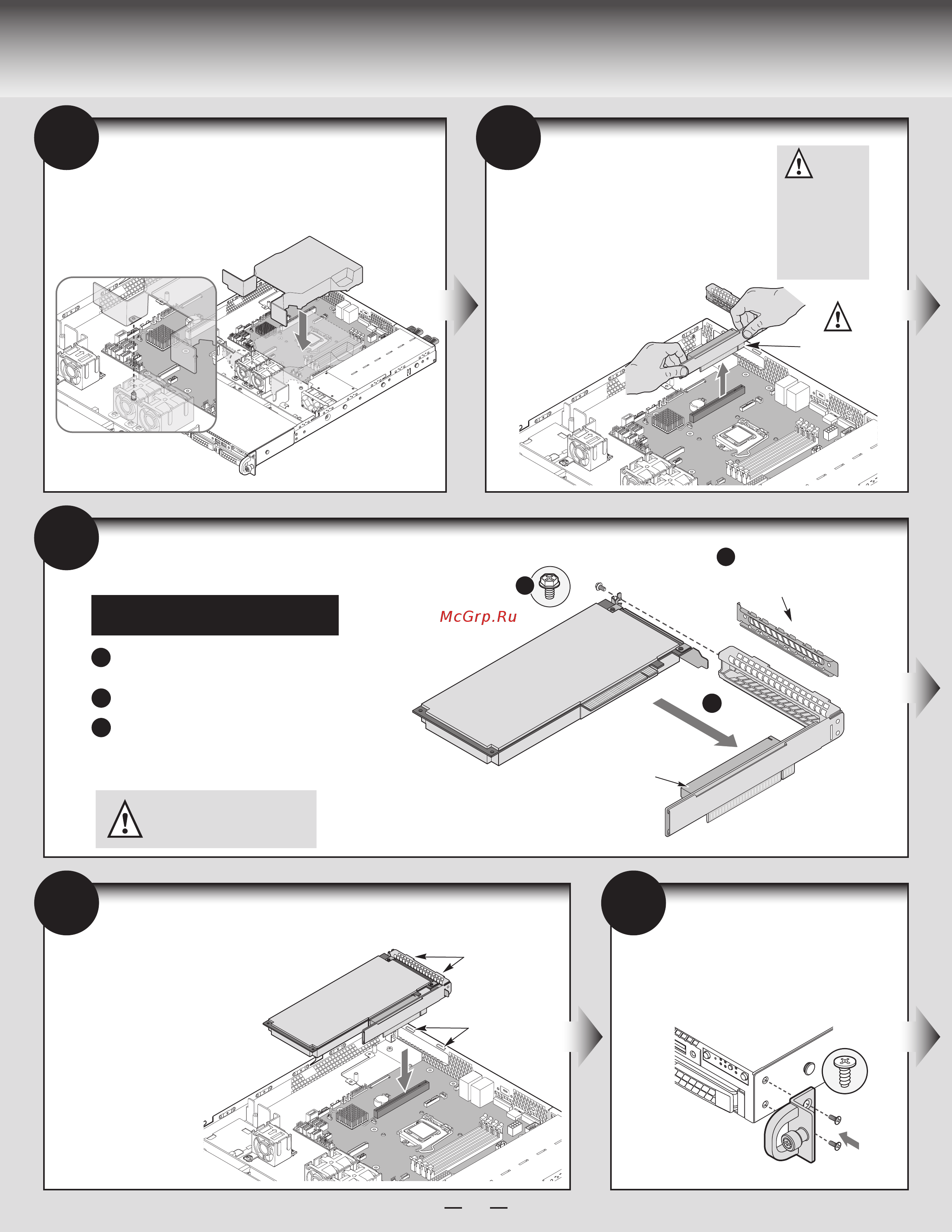

General Installation Process
12
Install Add-in Card
REMOVE Filler Panel
A
B
Add-in Card
C
Riser Connector
• Full-height PCIe Card Shown
A
B
C
CAUTION:
Observe normal ESD precautions
when installing add-in cards.
Insert add-in card until it sits in the riser connector.
Secure add-in card with screw as shown.
Note: Make sure that all empty add-in card slots have
filler panels installed.
Note: Add-in card install sequence for low-profile add-in
cards is the same.
Remove the filler panel from the add-in card slot and
remove the screw as shown.
Riser Card
Connector
Grasp the riser assembly with
both hands and pull up to
remove from system.
CAUTION:
Place the riser
assembly
upside down to
avoid damage
to the riser card
connector.
11
Remove Add-in Card
Riser Assembly
Align the two holes on the air duct with the alignment
pins on the chassis and install the air duct into place.
Use care to avoid pinching system cables.
10
Install the Air Duct
Note: Rack handles are required to install
the bezel. For detailed instructions, see the
Service Guide.
14
Install Rack Handles
Add-in Card
Slots
Hooks
13
Install Add-in Card Riser Assembly
Position the riser card edge
connector over the server
board riser socket and align
the hook of the riser with the
slot at the back of the chassis,
then press straight down into
riser socket.
