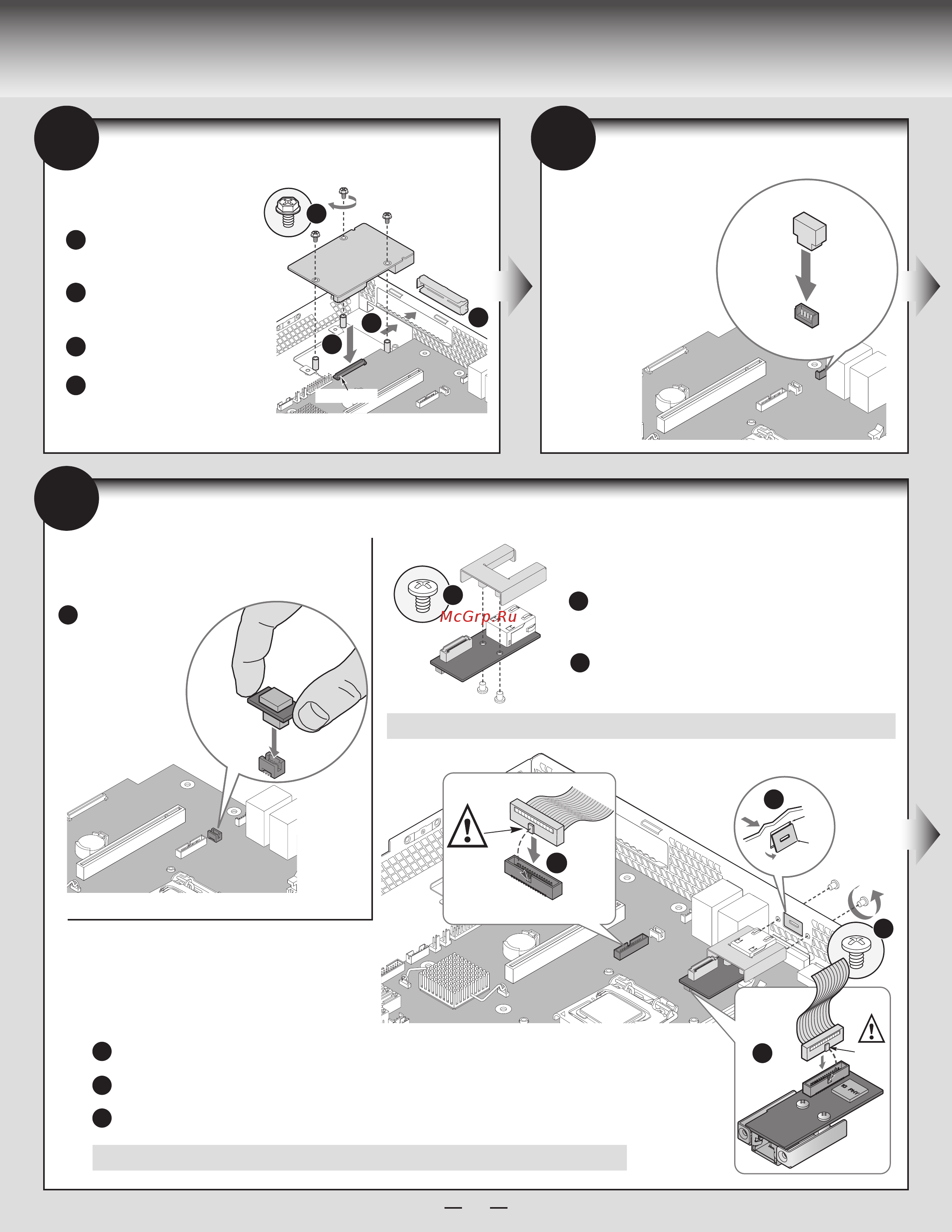

General Installation Process
9
I/O Connector
AF006070
I/O Module
A
B
C
D
15
Install Intel® I/O Expansion Module
(optional)
A
D
B
Squeeze the sides of the filler panel to
disengage it from the server system
back panel and remove it.
Position the module over the server
board, fit the front of the module into
the back panel slot.
Secure the module with the three
screws as shown.
C
Attach the module to the server
board connector.
Note: If included, remember to install the EMI shield.
SATA_KEY
Locate the white 4-pin key,
carefully pick up the Intel
®
RAID
C600 Upgrade Key. Match the
key and connector orientation
and press down to install.
Install Intel® ESRT2 RAID
AXXRAKSW5
Upgrade Key
(optional)
16
D
Chassis
Back
Opening
Filler
RMM4 NIC
Connector
Latch
E
Bottom View
Latch
C
B
A
Locate the RMM4 Lite
connector close to the
Riser Slot.
Carefully pick up the
Intel
®
RMM4 Lite
module, match the
alignment pin of the
module and the
connector on server
board. Press to install.
Installing the Intel® RMM4 Lite Installing the Intel® RMM4 NIC
17
Install Intel® Remote Management Module 4 (optional)
RMM4 Lite
Connector
A
A
Attach the metal fastening bracket to Intel
®
Dedicated
Server Management NIC module and secure the bracket
with two screws.
B
Remove the alternate RMM4 knock out by pressing the
knock out from inside the chassis.
E
Connect the cable to the cable connector on the Intel
®
Dedicated Server Management NIC module.
D
Mount the NIC module to the rear panel of the chassis and secure the bracket with two screws.
C
Connect the cable to the RMM4 NIC connector to the RMM4 NIC connector on your server board.
Caution: Carefully remove the knock out with screwdriver, directly removing it with finger has potential risk.
Caution: Care should be used when attaching or removing this cable. Mishandling the cable could cause damage.
