3

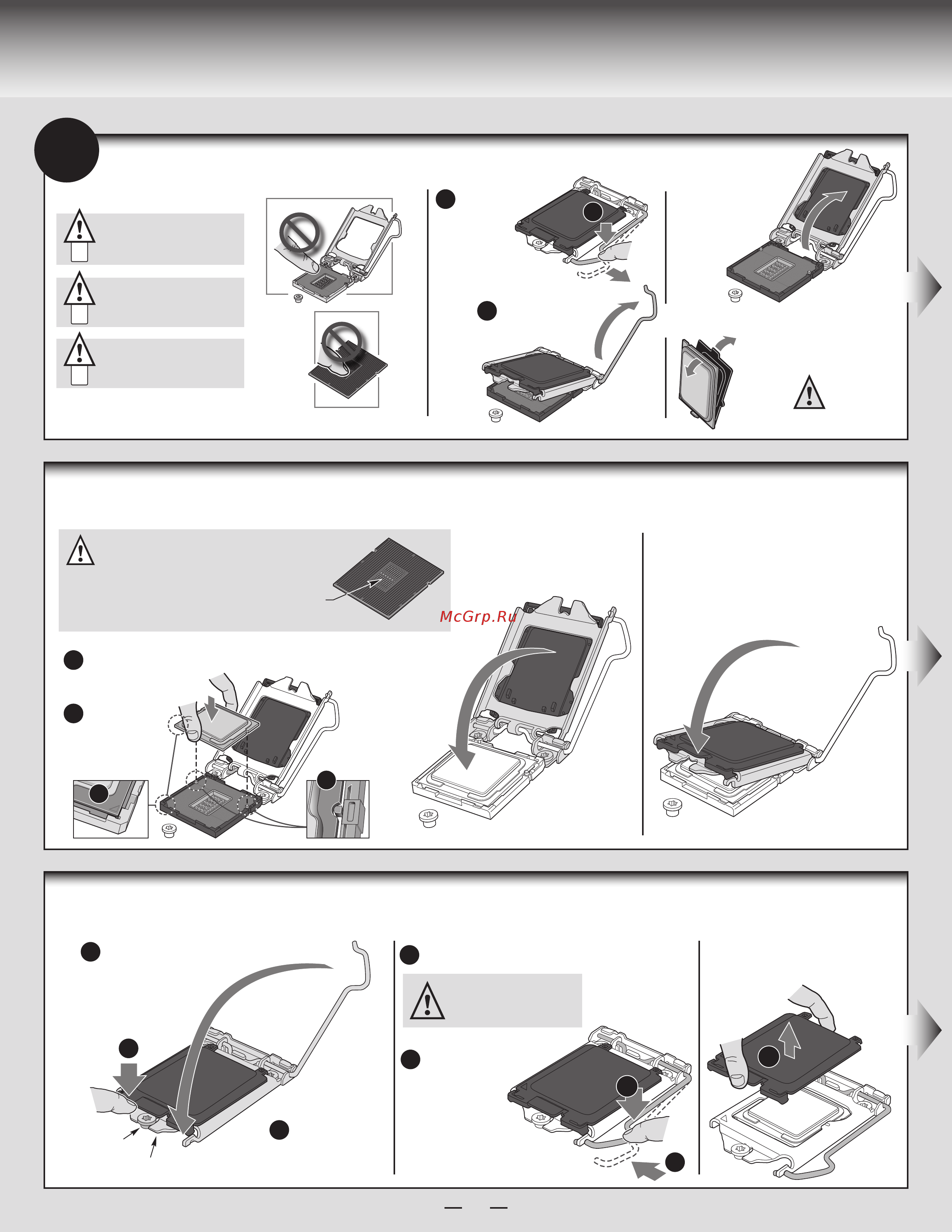

General Installation Process
5
Install the Processor
Cautions:
When removing the protective
cover, DO NOT TOUCH the
gold socket pins.
A
When unpacking a processor,
hold by the edges only to avoid
touching the gold contact pins.
C
To avoid damage, DO NOT
DROP the cover onto the
socket pins or components.
B
A. Open the Socket Lever
Push the lever
handle
down
and away
from the socket
to release it.
Rotate the lever
open all the way.
A
B
A
B. Open the
Load Plate
C. Unpack the Processor
Open the load
plate as shown.
Carefully remove
protective cover
as shown.
Save the
protective
cover.
Install the Processor ... continued
CAUTION: The underside of the processor has components
that may damage the socket wires if installed improperly.
Processor must align correctly with the socket opening
before installation.
DO NOT DROP processor into socket!
Components
Orient the processor with the socket so that the processor
cutouts match the two
socket pins.
A
Note location
of gold key at
corner of
processor.
B
A
B
D.
Install the Processor
Carefully lower the load plate
over the processor.
E. Close the Load Plate
Carefully lower the load plate
over the processor.
Install the Processor ... continued
A
B
Make sure the front edge of the load plate
slides under the shoulder
screw as the lever is
lowered.
Close the load
plate locking
lever.
A
Load Plate
Front Edge
Shoulder
Screw
F. Engage the Load Plate
A
B
Push down on the locking lever.
Slide the tip
of the lever
under the
notch in the
load plate.
Make sure
the lever is securely latched.
CAUTION: DO NOT damage the
server board with the tip of the
locking lever.
Save the
protective
cover.
A
A
A
B
H.
Remove the Cover
Carefully lift the cover
straight up as shown.
G. Latch the Locking Lever
