Intel rms25cb080 [25/60] Intel integrated raid module rms25pb0x0 and rms25cb0x0 characteristics

Intel® Integrated RAID Module RMS25PB0x0 and RMS25CB0x0 Hardware User’s Guide 15

3 Intel

Integrated RAID Module

RMS25PB0x0 and RMS25CB0x0

Characteristics

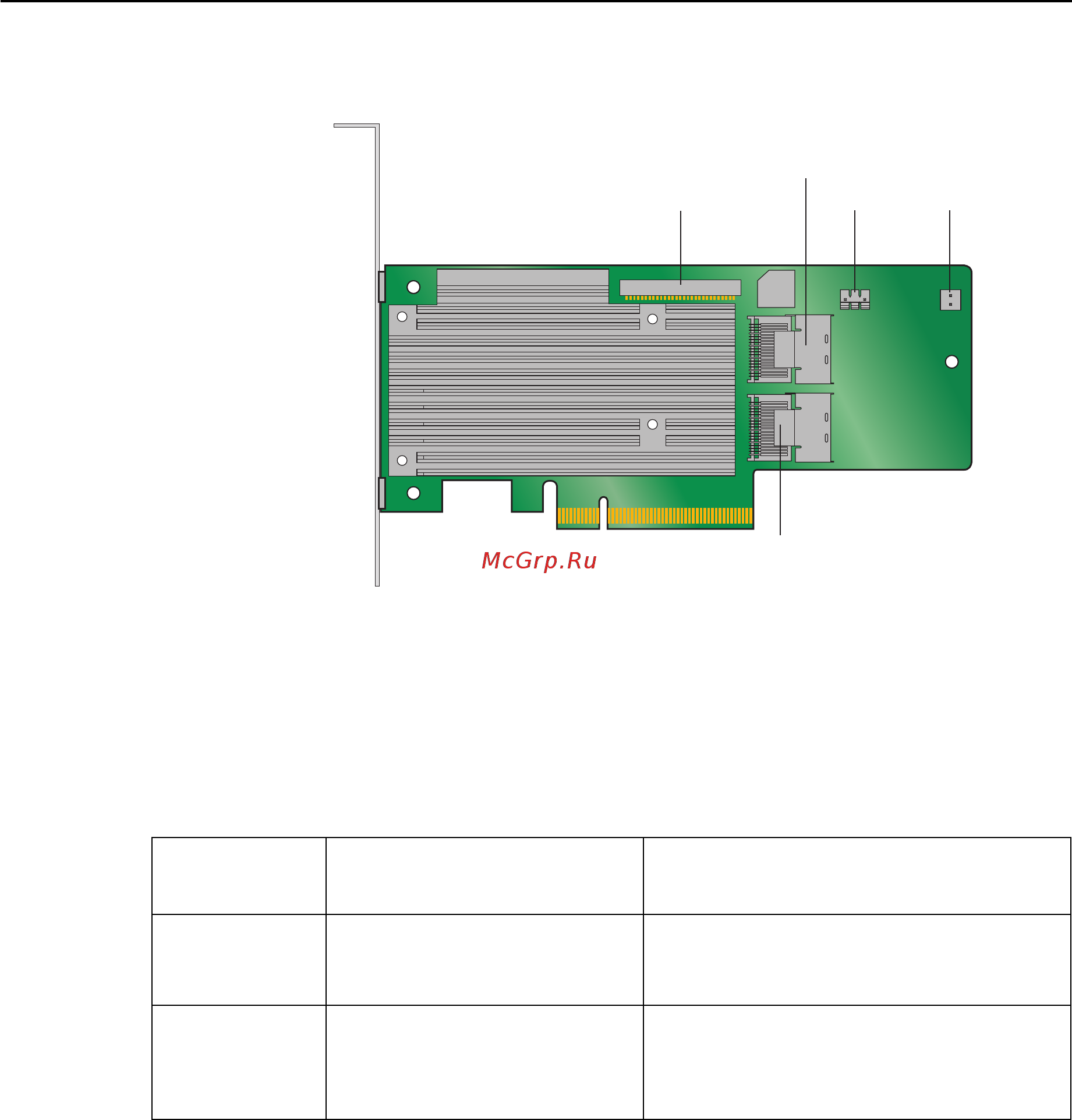

Figure 7. RMS25PB0x0 Card Layout

Table 1. RMS25PB0x0 Jumper Description

Jumper/

Connector

Type Description

J4A1 Board-to-board connector for

Battery Backup Unit

30-pin connector Provides an interface to

the daughter card that contains the battery

backup unit.

J6A2 Activity LED header 2-pin connector Connects to an LED that

indicates activity on the drives connected to

the controller.

AF004409

J4A1

J4B1

J4A2

J5A2 J6A2
