Intel® Integrated RAID Module RMS25PB0x0 and RMS25CB0x0 Hardware User’s Guide 29

Table 6. LED Headers Pin-out

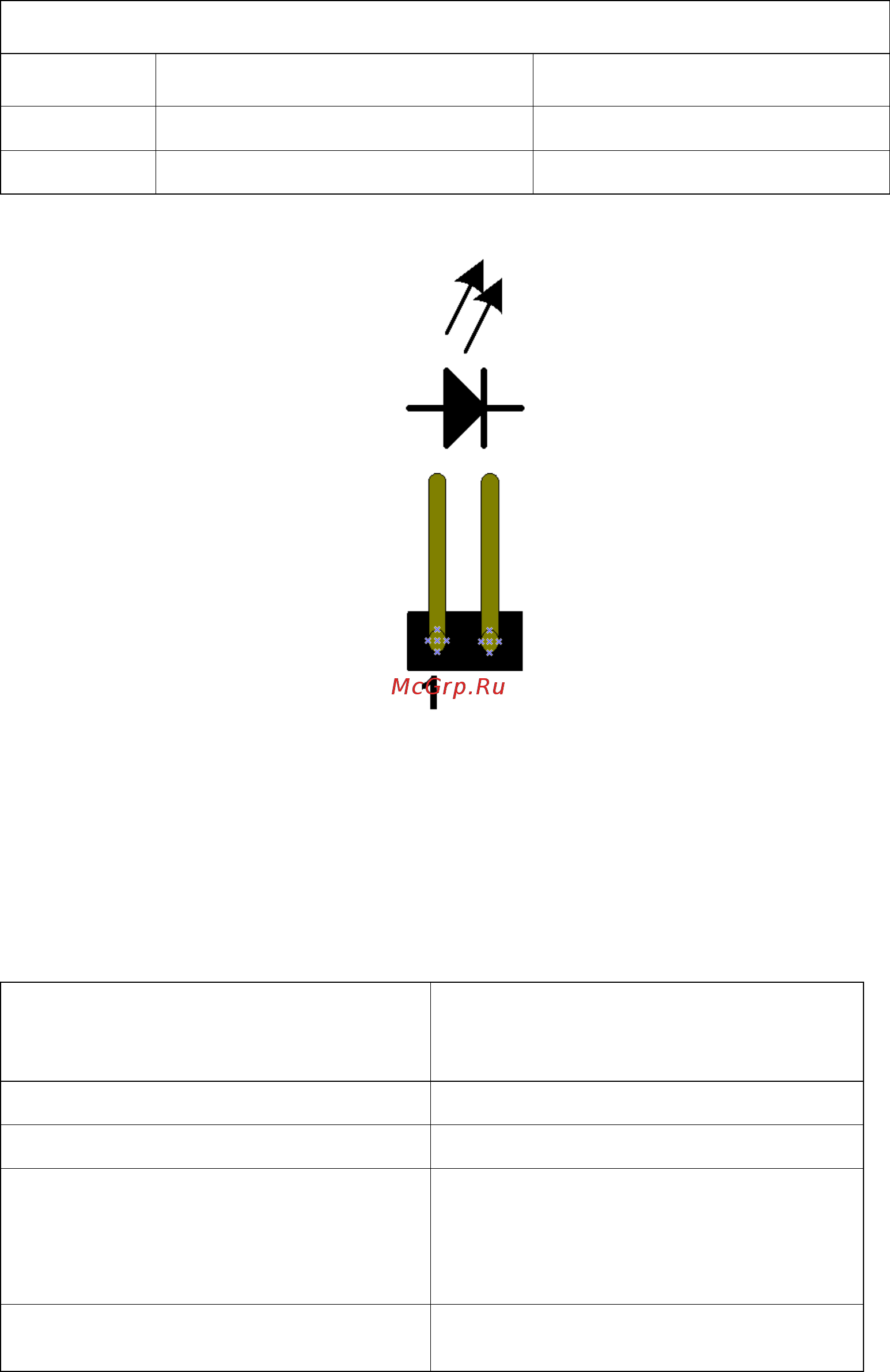

Figure 16. LED Header

Technical Specifications

Table 7. Technical Specifications

HDD Activity Header (J1A4)

Pin # Name Description

1 D_ACTIVE_PU 330V to P3V3_DUAL

2 D_ACTIVE_N Connected to Drain of onboard MFT

Specification

Intel

Integrated RAID Module

RMS25PB080, RMS25PB040,

RMS25CB080 and RMS25CB040

RAID-on-Chip (ROC) LSISAS2208 Integrated ROC, 800 MHz

Operating voltage +3.3 V, +12 V

Card size RMS25PB040 and RMS25PB080:

2.713 inch x 6.600 inch (Low-profile)

RMS25CB040 and RMS25CB080:

See Intel

Integrated RAID Module

RMS25CB0x0 Mechanical overview

Array interface to host Note: PCI Express* Revision 3.0 will be

supported at post launch.
