28 Intel® Integrated RAID Module RMS25PB0x0 and RMS25CB0x0 Hardware User’s Guide

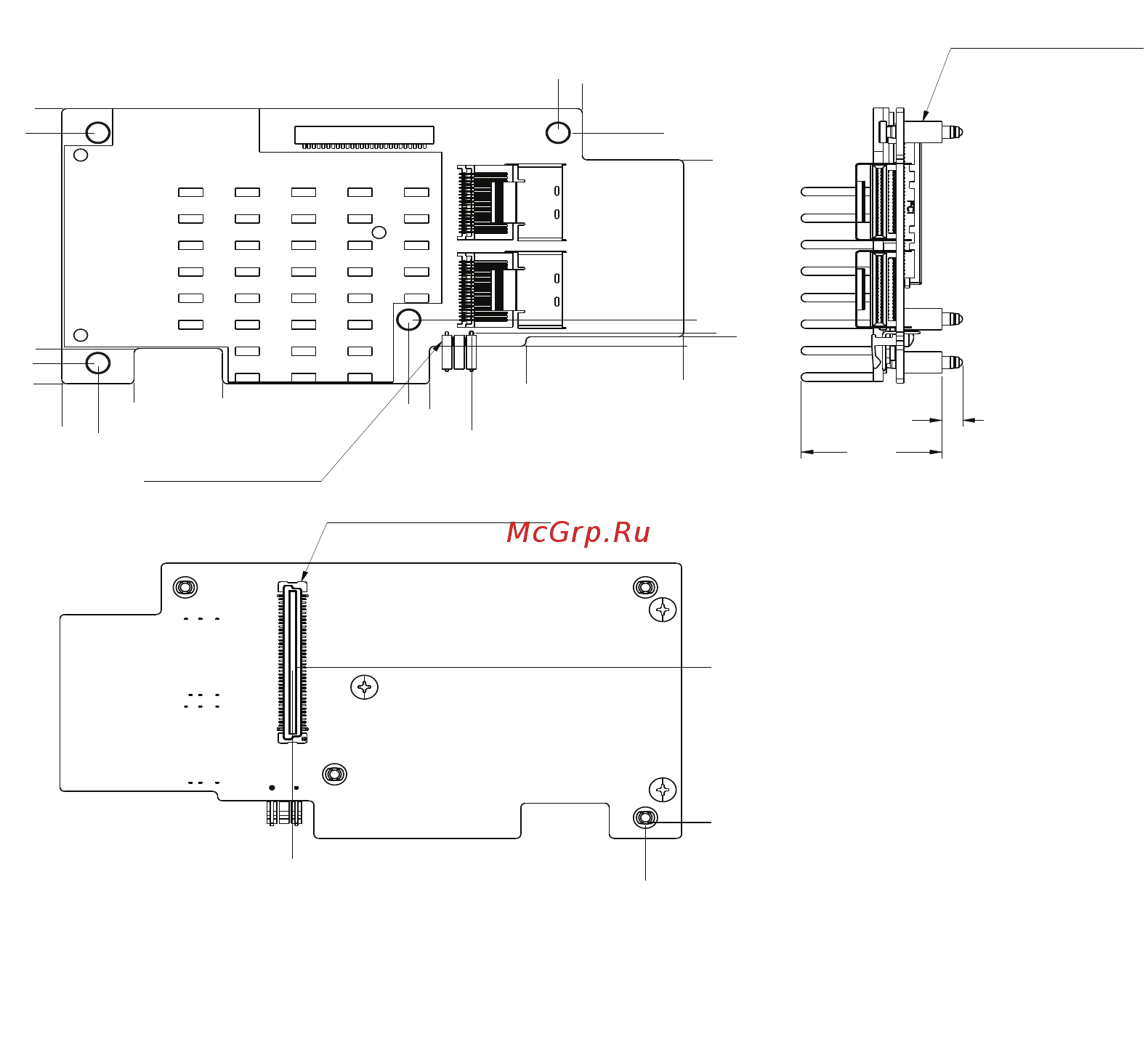

Figure 15. Mechanical Drawing for Intel

Integrated RAID Module

RMS25CB0x0

LED Headers

There is one 2-pin header present on the RMS25PB080 and RMS25PB040 board and this

header is used for connecting the external LED which indicates activity on any of the

connected HDDs.

AF004607

77.5

3.9

9.55

3.4

4.85

10.15

6.15

47.55

53.9

3.95

7.5

25.85

68.8

88.8

121.5

100.5

95.5

64.5

RIGHT ANGLE PREMIUM

FEATURE KEY CONNECTOR

29.21

4.3

FOUR PLASIC PUSH RIVETS

73.25

36.32

MEZZANINE DOCKING CONNECTOR
