16 Intel® Integrated RAID Module RMS25PB0x0 and RMS25CB0x0 Hardware User’s Guide

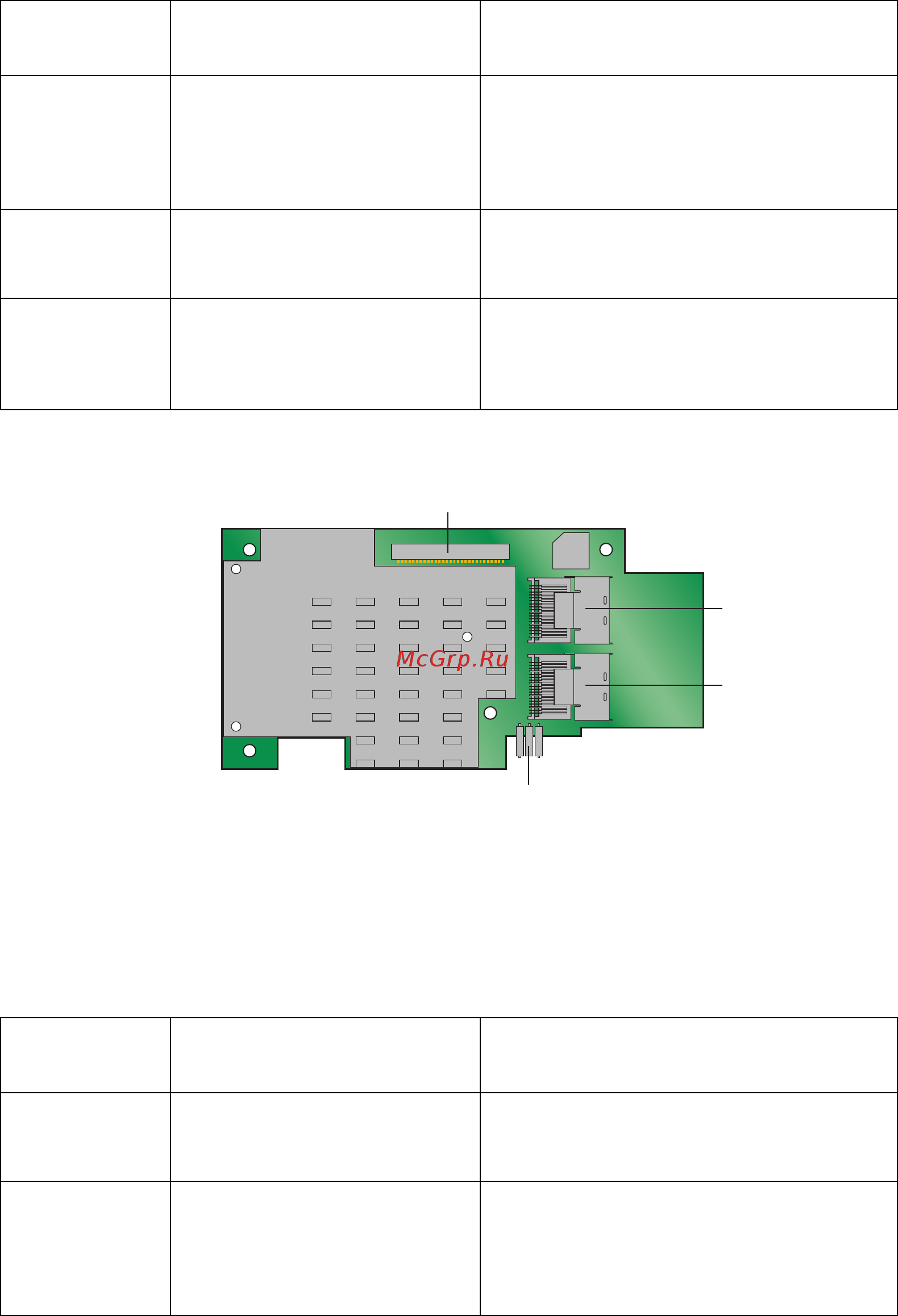

Figure 8. RMS25CB0x0 Card Layout
Table 2. RMS25CB0x0 Jumper Description
J4B1 x4 SAS Ports 4-7 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
J4B1 (Ports 4-7) is only available on Intel
®
Integrated Module RMS25PB080.
J4A2 x4 SAS Ports 0-3 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
J5A2 Advanced Software Hardware
Key Header
3-pin header Enables support for selected
advanced features, such as recovery,
Supersized cache, FastPath, and full disk
encryption.
Jumper/
Connector
Type Description
J3A1 Board-to-board connector for
Battery Backup Unit
30-pin connector Provides an interface to
the daughter card that contains the battery
backup unit.
J4B1 x4 SAS Ports 4-7 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
J4B1 (Ports 4-7) is only available on Intel
®
Integrated Module RMS25CB080.
Jumper/
Connector
Type Description
AF004410
J3A1
J4B1
J4A1
J4B2
