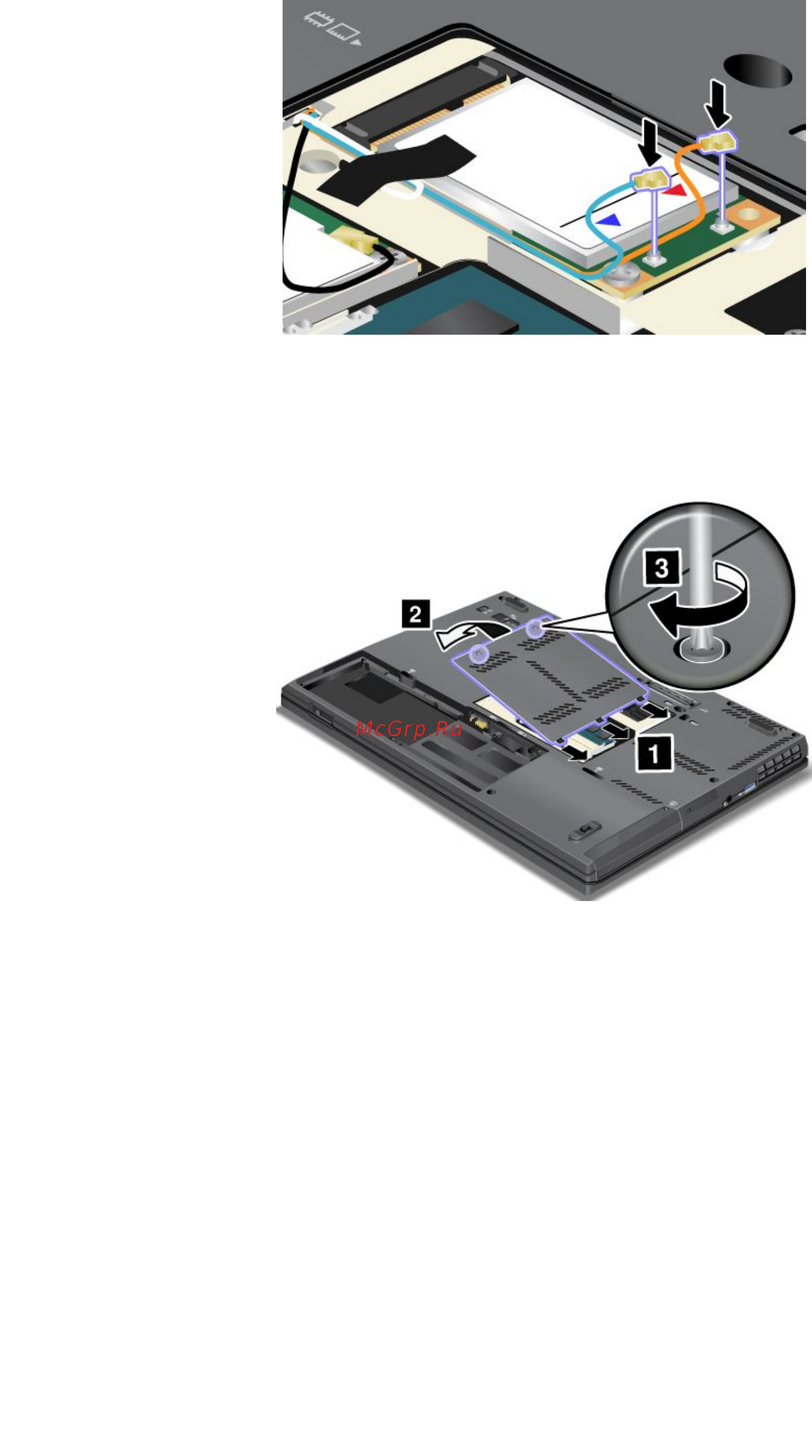

10.ConnectthecablestothenewwirelessWANcard.
Note:Dependingonthemodel,themarkingfortheconnectorsonyourcardmightlookdifferentfrom
theoneshownintheillustrationabove.BesuretoattachtheredcabletotheMAINorMconnector,
andthebluecabletotheAUXorAconnector.
11.Reinstallthememoryslotcoverandtightenthescrews.
12.Reinstallthebattery.See“Replacingthebattery”onpage67.
13.Turnthecomputeroveragain.Connecttheacpoweradapterandallcables
IfyourcomputerisequippedwithaPCIExpressHalfMinicard,replacethecardbydoingthefollowing:
1.Turnoffthecomputer;thendisconnecttheacpoweradapterandallcablesfromthecomputer.Wait
threetoveminutestoletthecomputercool.
2.Closethecomputerdisplay,andturnthecomputerover.
3.Removethebattery.See“Replacingthebattery”onpage67.
88UserGuide
