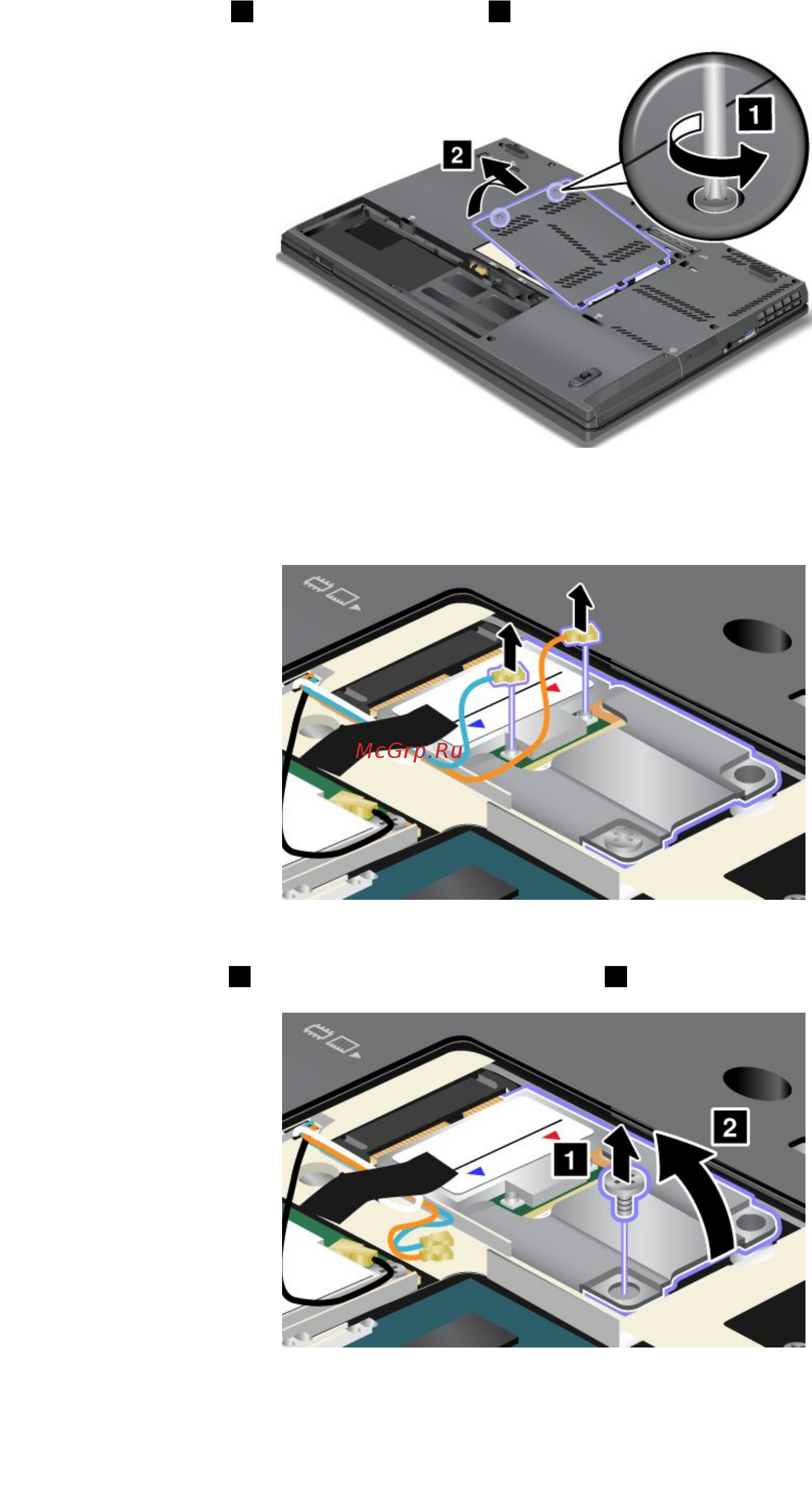

4.Loosenthescrews1,thenremovethecover2.
5.Ifatoolforremovingconnectorsisincludedinthepackagewiththenewcard,useittodisconnectthe
cablesfromthecard.Ifnosuchtoolisincluded,disconnectthecablesbypickinguptheconnectors
withyourngersandgentlyunpluggingthem.
Note:Dependingonthesystemcongurationofyourcomputer,thecardmighthaveonlyoneconnector.
6.Removethescrew1.Thecardwiththebracketpopsup2.
Chapter6.Replacingdevices89
