ASUS STRIX Z270E GAMING
1-13
Chapter 1

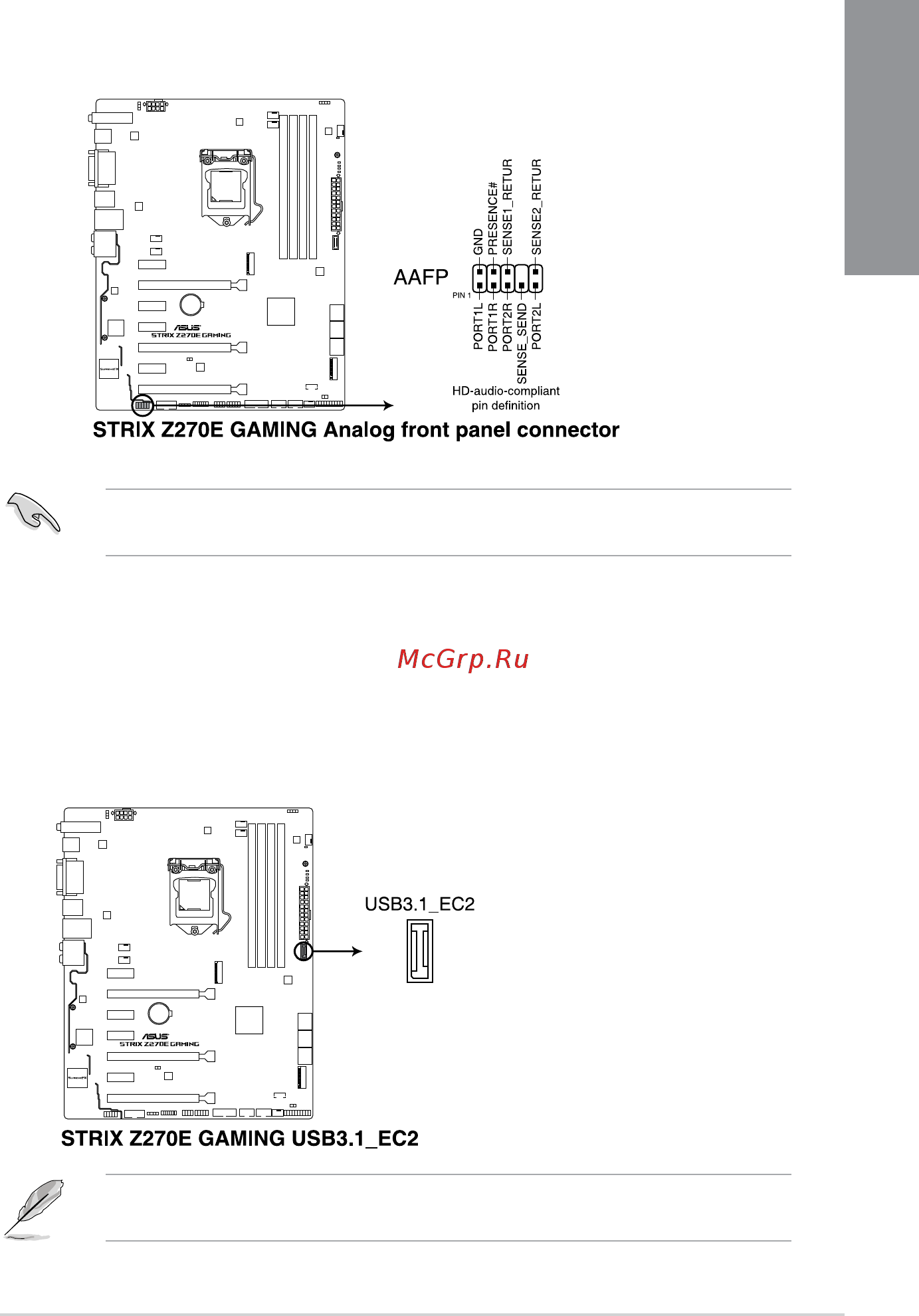

2. Front panel audio connector (10-1 pin AAFP)
Thisconnectorisforachassis-mountedfrontpanelaudioI/OmodulethatsupportsHD
Audio.ConnectoneendofthefrontpanelaudioI/Omodulecabletothisconnector.
Werecommendthatyouconnectahigh-denitionfrontpanelaudiomoduletothis
connectortoavailofthemotherboard’shigh-denitionaudiocapability.
TheUSB3.1frontpanelconnectorsharesbandwidthwithPCIE_x1_2andPCIE_x1_4.
IftheUSB3.1frontheaderisconnected,PCIE_x1_2andPCIE_x1_4willbedisabled.
3. USB 3.1 front panel connector (USB3.1_EC2)
ThisconnectorallowsyoutoconnectaUSB3.1moduleforadditionalUSB3.1ports.
ThelatestUSB3.1connectivityprovidesdatatransferspeedsofupto10Gbps.The
next-generationstandardiscompletelybackward-compatiblewithyourexistingUSB
devices.
