ASUS STRIX Z270E GAMING
2-19
Chapter 2

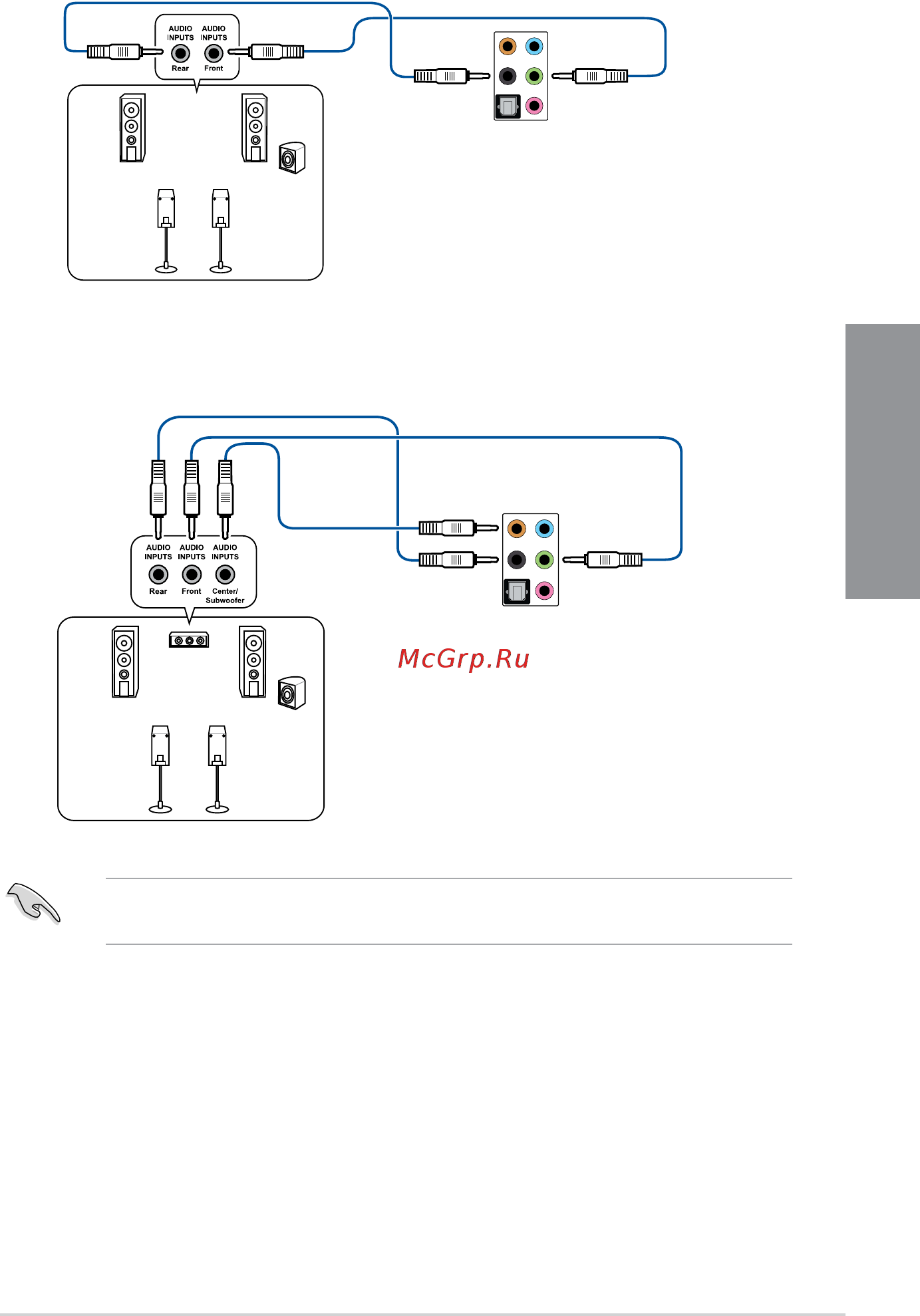

Connect to 4 channel Speakers
Connect to 6 channel Speakers
If you are using Windows
®
8.1/10 platform, use only the light blue audio port for Side
SpeakerOutina6-channelconguration.
