![Asus ROG STRIX Z270E GAMING [54/106] Motherboard rear and audio connections](/img/pdf.png)
Asus ROG STRIX Z270E GAMING [54/106] Motherboard rear and audio connections
![Asus ROG STRIX Z270E GAMING [54/106] Motherboard rear and audio connections](/views2/1233191/page54/bg36.png)
2-16
Chapter 2: Basic Installation
Chapter 2
2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection

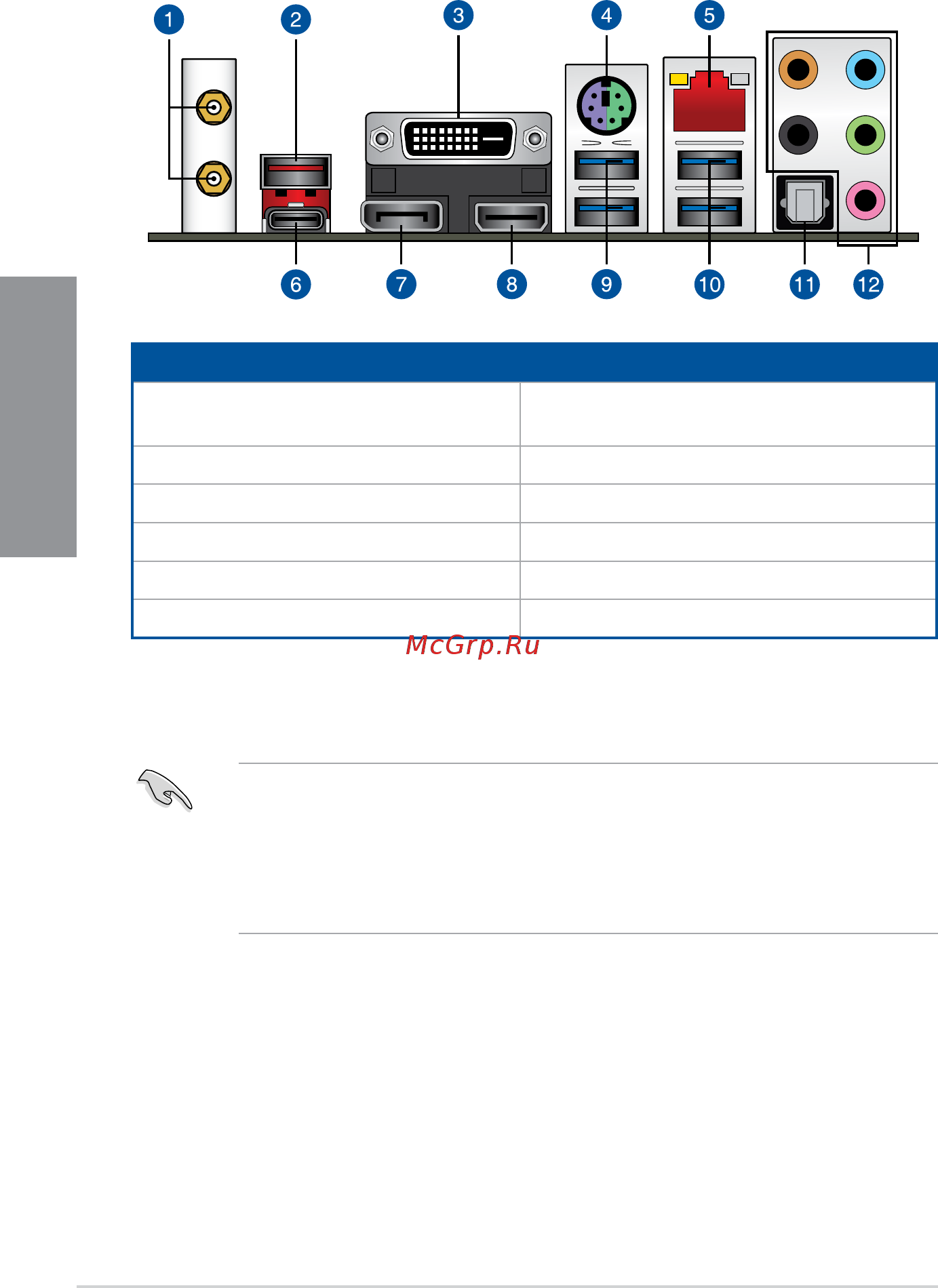

Rear panel connectors
1.
Wi-Fi 802.11 a/b/g/n/ac, Bluetooth
V4.0*
7. DisplayPort
2.
USB 3.1 Type-A port EA1 8. HDMI 1.4b port
3.
DVI-D port 9. USB 3.0 ports 12
4.
PS/2 keyboard/mouse combo port 10. USB 3.0 ports 56
5.
Intel
®
LAN port (LAN1)* 11. Optical S/PDIF Out port
6.
USB 3.1 Type-C port EC1 12. Audio I/O ports**
* Support for the Bluetooth specification depends on the Windows
®
version. Windows
®
7/8.1 can support up to
Bluetooth 4.0.
** and *** : Refer to the tables on the next page for LAN port LEDs and audio port definitions.
• ThepluggedUSB3.0devicemayrunonxHCImodeorEHCImode,dependingonthe
operating system’s setting.
• USB3.0devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.0devicestoUSB3.0portsforfaster
and better performance for your USB 3.0 devices.
