Asus PRIME Z370-A [48/104] Atx power connection
![Asus PRIME Z370-A [48/104] Atx power connection](/views2/1307885/page48/bg30.png)
2-8
Chapter 2: Basic Installation
Chapter 2

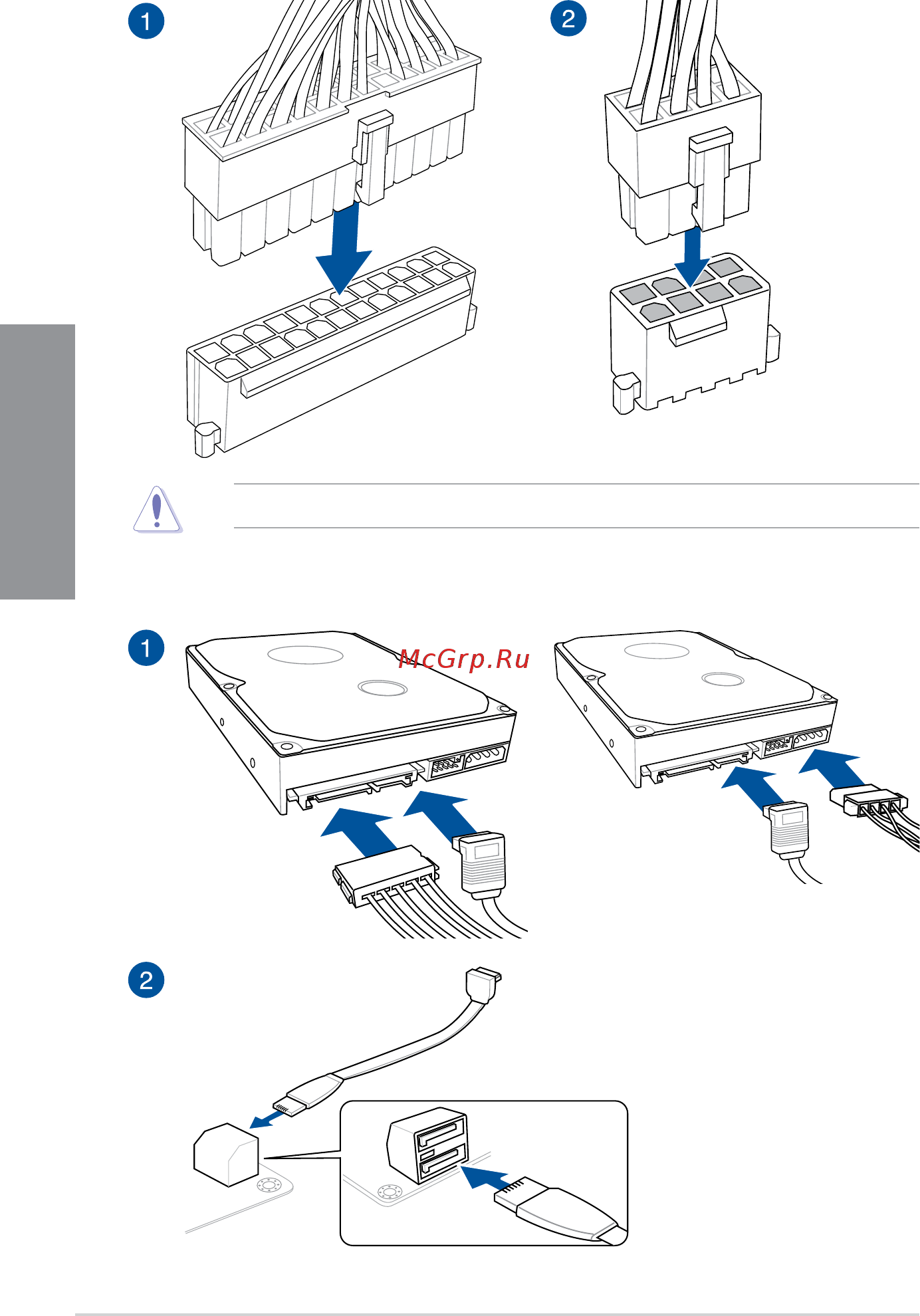

2.1.5 ATX power connection
Ensure to connect the 8-pin power plug.
2.1.6 SATA device connection
OR
