Asus PRIME Z370-A [54/104] Chapter 2
![Asus PRIME Z370-A [54/104] Chapter 2](/views2/1307885/page54/bg36.png)
2-14
Chapter 2: Basic Installation
Chapter 2

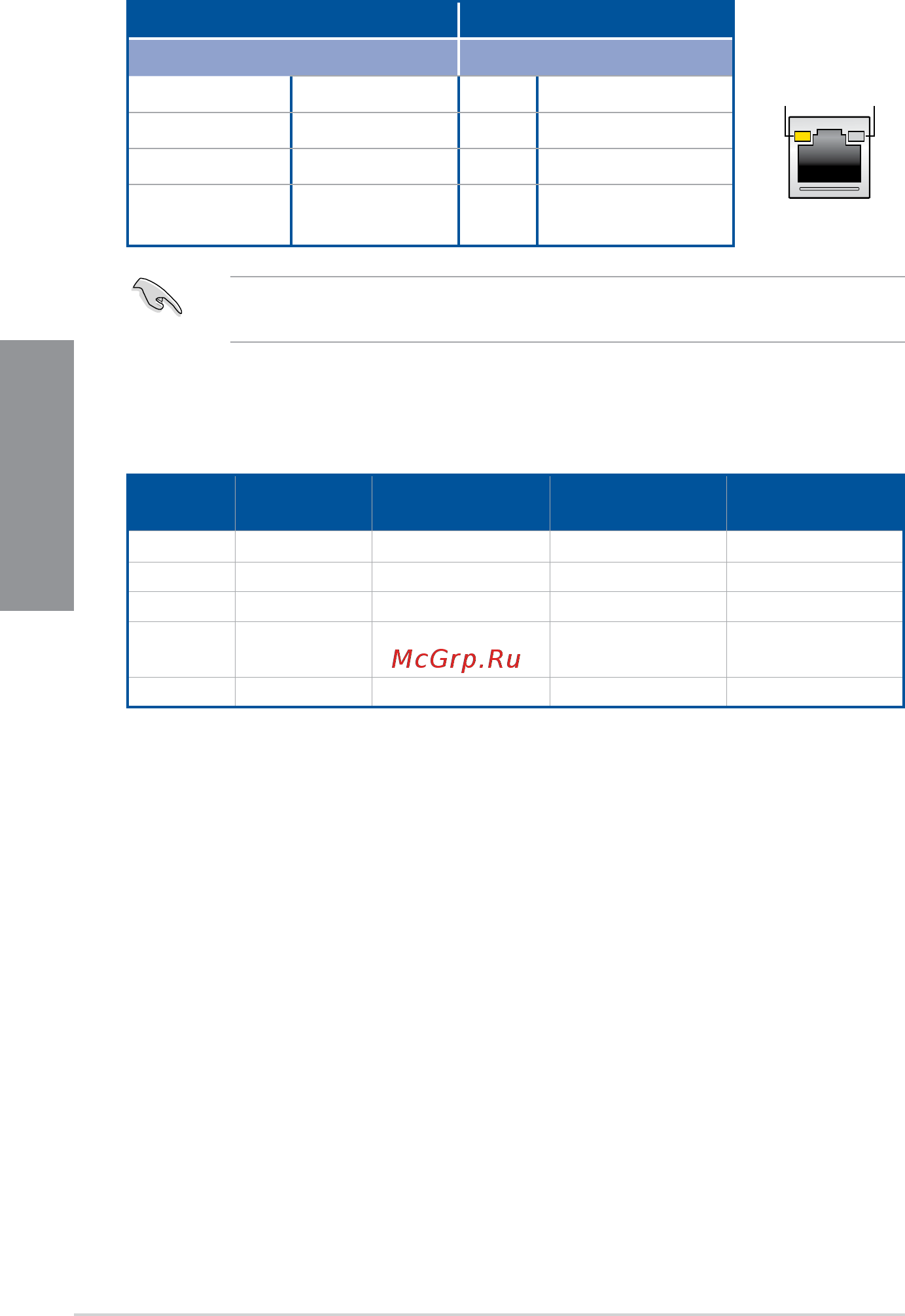

* LAN ports LED indications
ACT/LINK
LED
SPEED
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
Off
No link Off 10Mbpsconnection
Orange
Linked Orange 100Mbpsconnection
Orange(Blinking)
Data activity Green 1 Gbps connection
Orange(Blinking
then steady)
Ready to wake up
fromS5mode
YoucandisabletheLANcontrollersinBIOS.Duetohardwaredesign,theLAN1port’s
LEDs may continue to blink even when disabled.
** Audio 2, 4, 6 or 8-channel configuration
Port
Headset
2-channel
4-channel 6-channel 8-channel
LightBlue LineIn LineIn LineIn SideSpeakerOut
Lime Line Out FrontSpeakerOut FrontSpeakerOut FrontSpeakerOut
Pink MicIn MicIn MicIn MicIn
Orange – – Center/Sub
woofer
Center/Sub
woofer
Black – RearSpeakerOut RearSpeakerOut RearSpeakerOut
