1-14
Chapter 1: Product Introduction
Chapter 1
1.1.8 Onboard LEDs

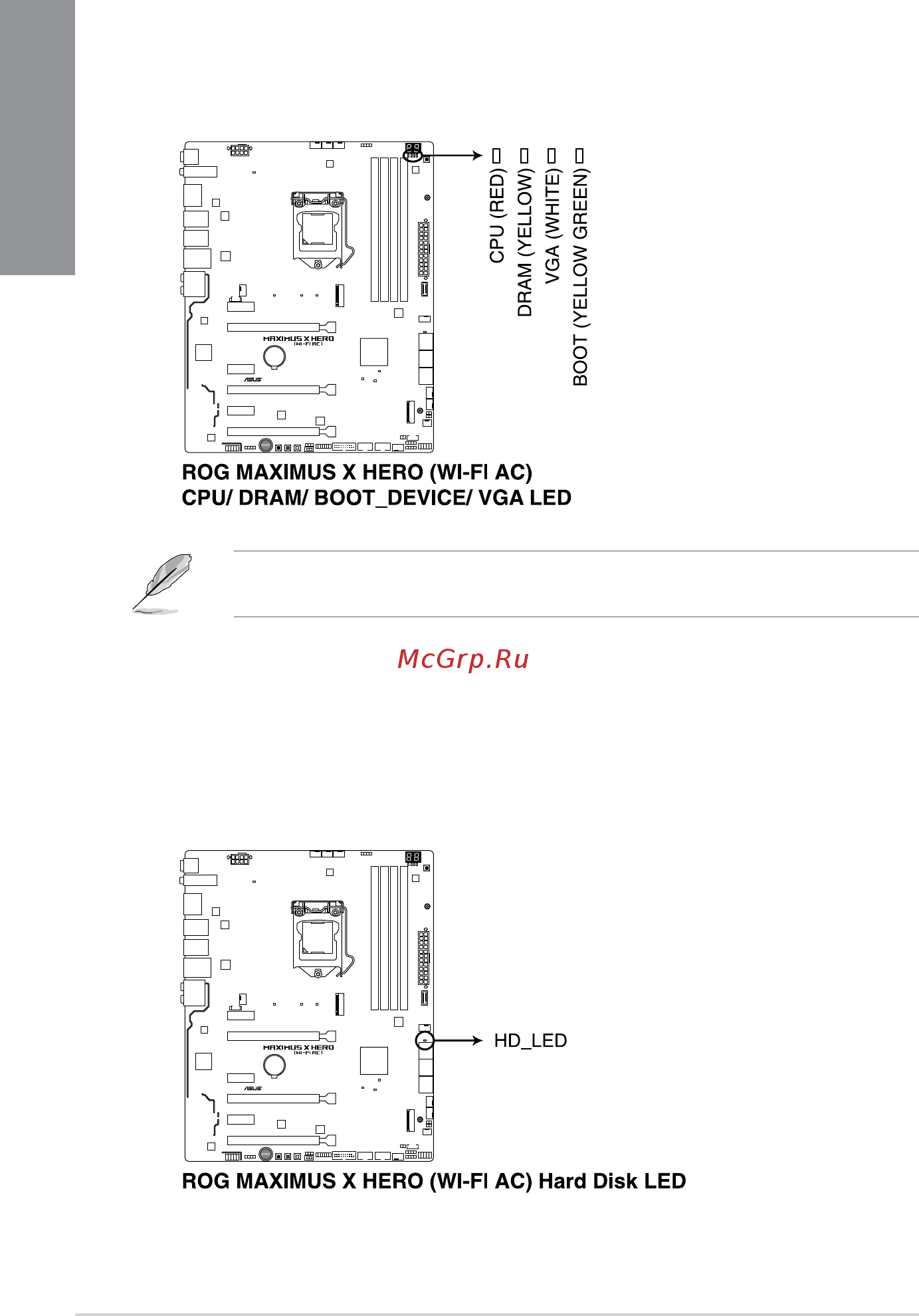

1. Q LEDs (CPU, DRAM, VGA, BOOT)
QLEDscheckkeycomponents(CPU,DRAM,VGAcard,andbootingdevices)in
sequenceduringmotherboardbootingprocess.Ifanerrorisfound,thecorresponding
LEDremainslituntiltheproblemissolved.Thisuser-friendlydesignprovidesan
intuitivewaytolocatetherootproblemwithinseconds.
2. Hard Disk LED (HD_LED)
TheHardDiskLEDisdesignedtoindicatetheharddiskactivity.Itblinkswhendata
isbeingwrittenintoorreadfromtheharddiskdrive.TheLEDdoesnotlightupwhen
thereisnoharddiskdriveconnectedtothemotherboardorwhentheharddiskdrive
doesnotfunction.
TheQLEDsprovidethemostprobablecauseofanerrorcodeasastartingpointfor
troubleshooting.Theactualcausemayvaryfromcasetocase.
