![Asus ROG MAXIMUS X HERO (WI-FI AC) [47/116] Motherboard installation](/img/pdf.png)
Asus ROG MAXIMUS X HERO (WI-FI AC) [47/116] Motherboard installation
![Asus ROG MAXIMUS X HERO (WI-FI AC) [47/116] Motherboard installation](/views2/1307890/page47/bg2f.png)
ROG MAXIMUS X HERO (WI-FI AC)
2-5
Chapter 2

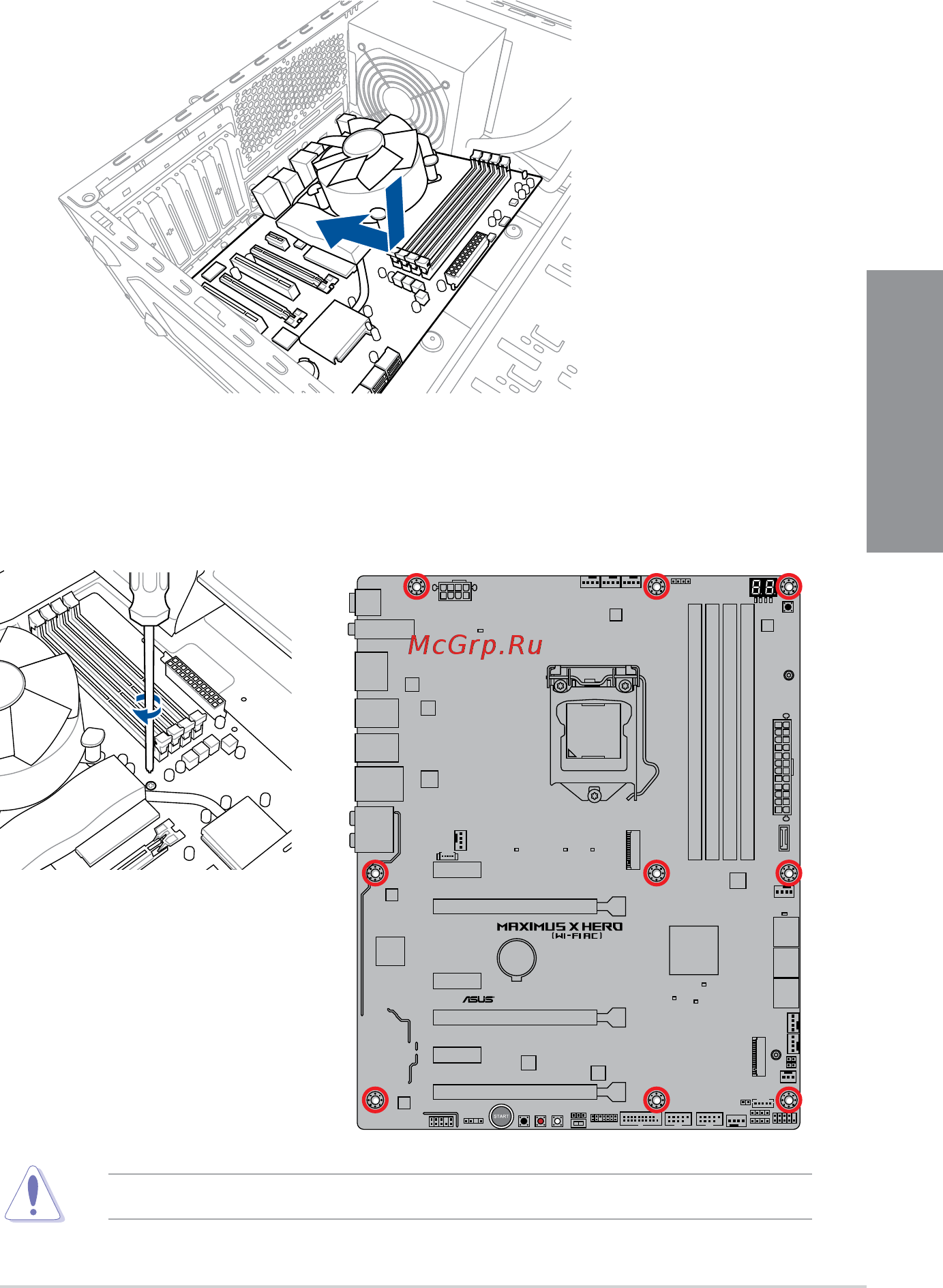

2. Place nine (9) screws into the holes indicated by circles to secure the motherboard to
the chassis.
DO NOT over tighten the screws! Doing so can damage the motherboard.
1. Placethemotherboardintothechassis,ensuringthatitsrearI/Oportsarealignedto
thechassis’rearI/Opanel.
2.1.3 Motherboard installation
