ROG MAXIMUS X HERO (WI-FI AC)
1-17
Chapter 1

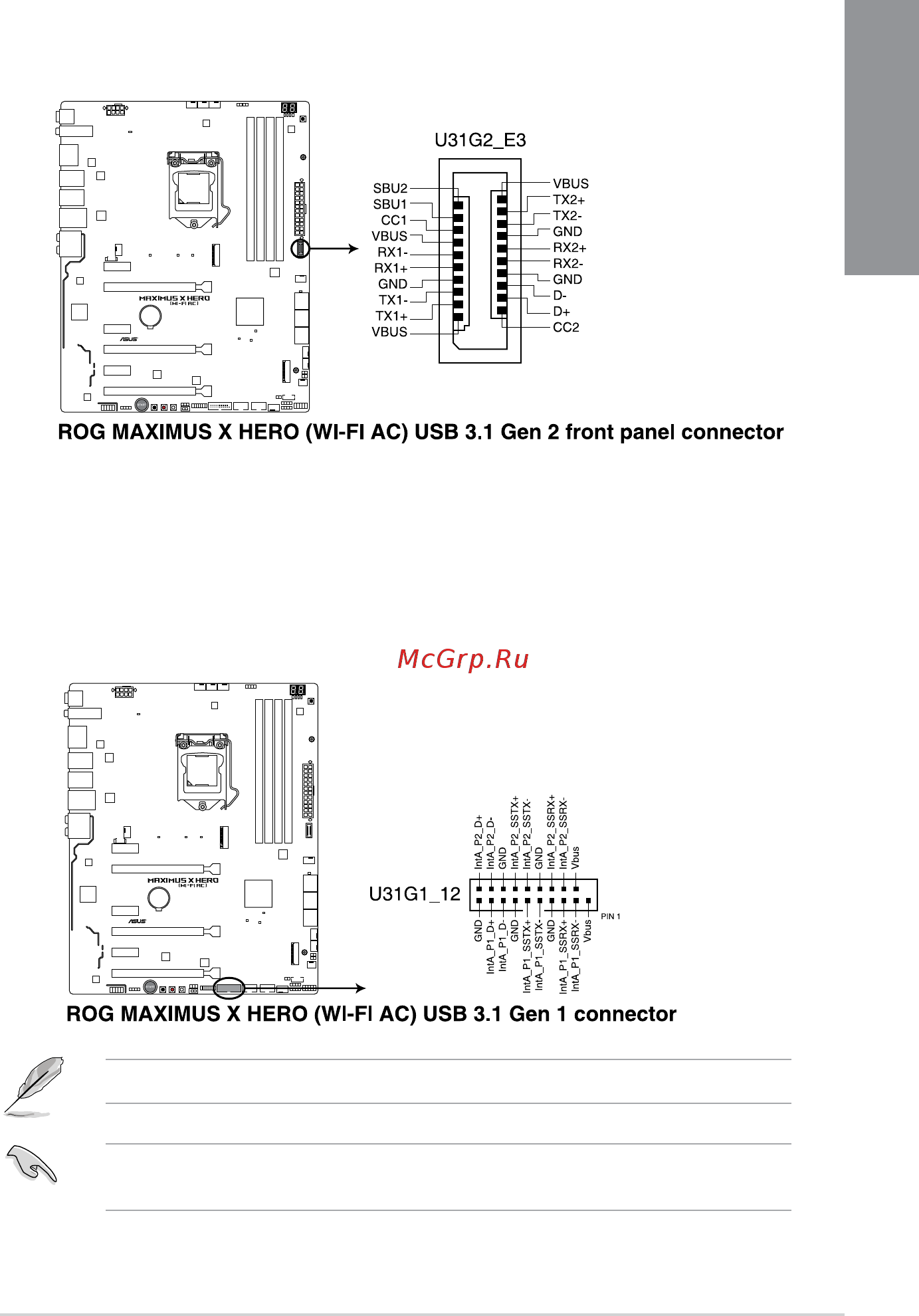

3. USB 3.1 Gen 1 connector (20-1 pin U31G1_12)
ThisconnectorallowsyoutoconnectaUSB3.1Gen1moduleforadditionalUSB
3.1Gen1frontorrearpanelports.WithaninstalledUSB3.1Gen1module,youcan
enjoyallthebenetsofUSB3.1Gen1includingfasterdatatransferspeedsofupto
5Gbps,fasterchargingtimeforUSB-chargeabledevices,optimizedpowerefciency,
andbackwardcompatibilitywithUSB2.0.
TheUSB3.1Gen1moduleispurchasedseparately.
2. USB 3.1 Gen 2 front panel connector (U31G2_E3)
ThisconnectorallowsyoutoconnectaUSB3.1Gen2moduleforadditionalUSB3.1
Gen2ports.ThelatestUSB3.1Gen2connectivityprovidesdatatransferspeedsof
upto10Gbps.Thenext-generationstandardiscompletelybackward-compatiblewith
yourexistingUSBdevices.
ThepluggedUSB3.1gen1devicemayrunonxHCIorEHCImodedependingonthe
operatingsystem’ssetting.
