12

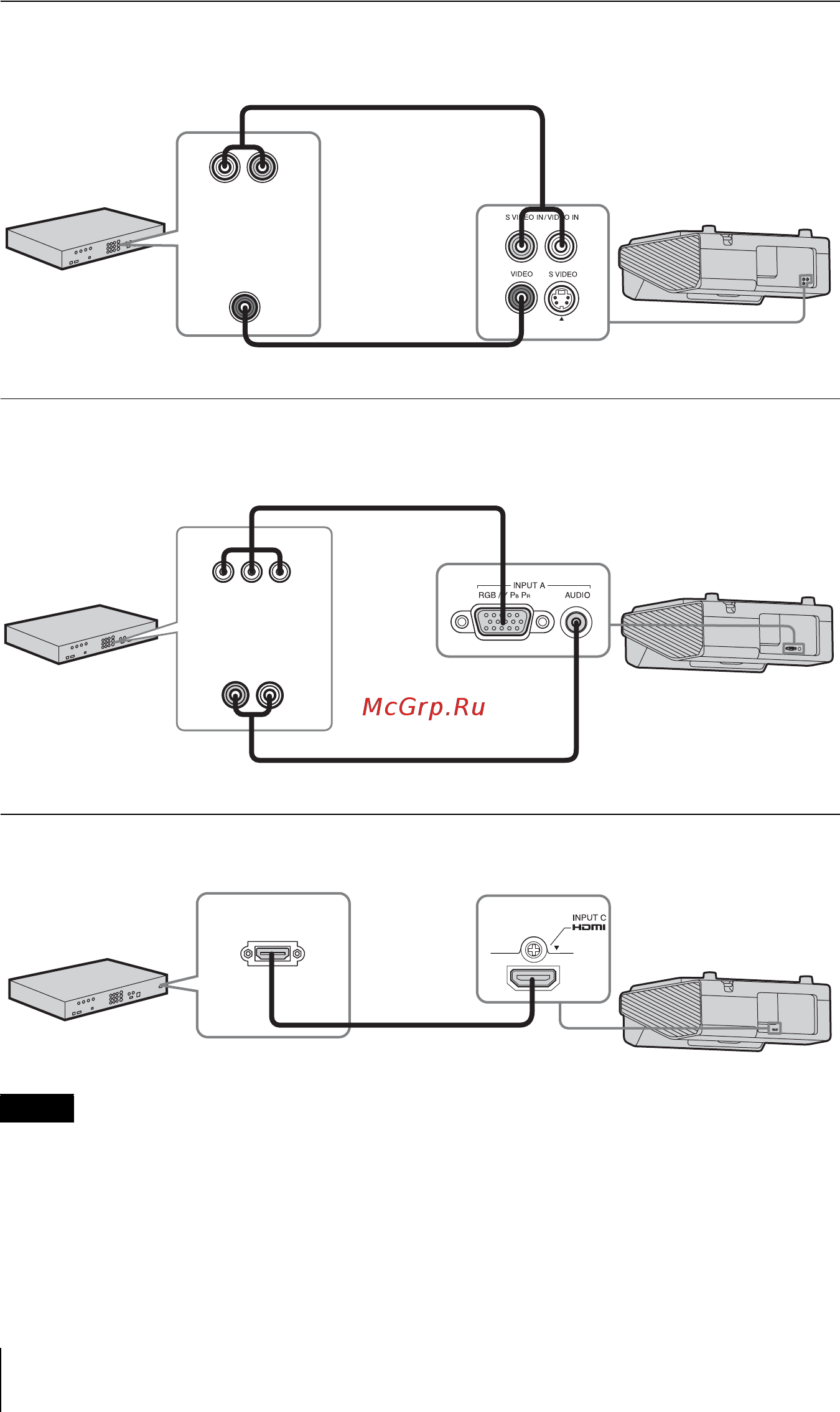

Connecting the Projector
VIDEO IN
For connecting video equipment with a video output terminal.
INPUT A
For connecting video equipment with a YPBPR output terminal.
INPUT C
For connecting video equipment with an HDMI output terminal.
• Use HDMI-compatible equipment which has the HDMI Logo.
• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are
recommended.)
• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
Notes
R-AUDIO-L(MONO)
Video cable (not supplied)
Audio cable (Phono plug × 2) (not supplied)
Video output
terminal
Audio output
terminal
Video equipment
Component – Mini D-sub 15-pin cable (not supplied)
Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)
Video equipment
YP
BPR output
terminal
Audio output
terminal
Video equipment
HDMI cable
(not supplied)
HDMI output
terminal
