5

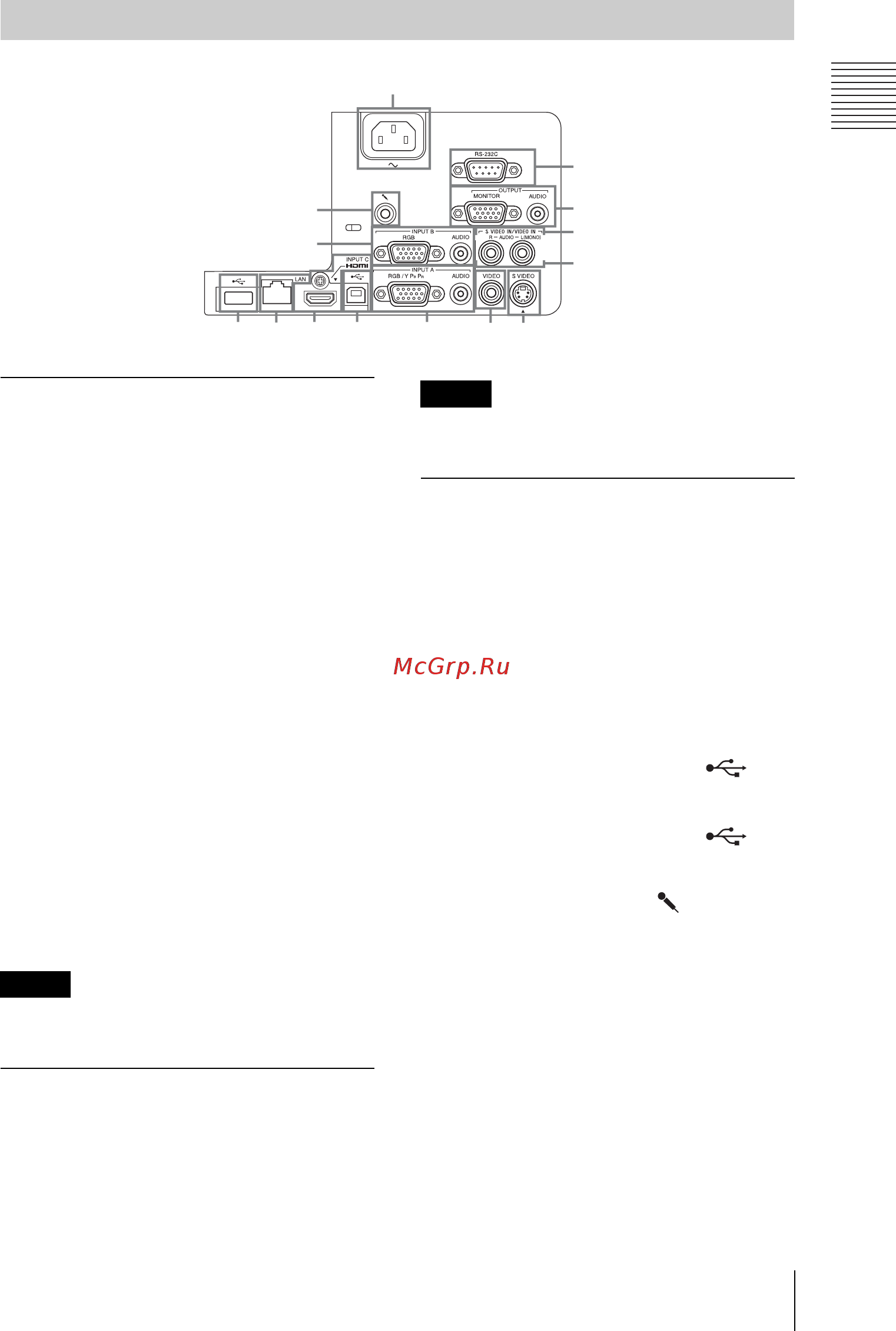

Location and Function of Controls
Overview
Input (pages 9, 11)
a INPUT A
Video: RGB/YPBPR input terminal
(RGB/YPBPR)
Audio: Audio input terminal (AUDIO)
b INPUT B
Video: RGB input terminal (RGB)
Audio: Audio input terminal (AUDIO)
c INPUT C
Video: HDMI input terminal (HDMI)
Audio: HDMI input terminal (HDMI)
d S VIDEO (S VIDEO IN)
Video: S video input terminal
(S VIDEO IN)
Audio: Audio input terminal
(L (MONO) AUDIO/R)
e VIDEO (VIDEO IN)
Video: Video input terminal (VIDEO)
Audio: Audio input terminal
(L (MONO) AUDIO/R)
The audio inputs of S VIDEO and VIDEO are
shared.
Output (page 13)
f OUTPUT
Video: Monitor output terminal
(MONITOR)
Audio: Audio output terminal (AUDIO)
This terminal outputs the projected image only
when INPUT A or INPUT B is used.
Others
g RS-232C terminal (RS-232C)
RS-232C compatible control terminal.
Connects the computer’s RS-232C
terminal and the RS-232C cross cables.
h LAN terminal (page 36)
i AC IN (∼) socket
Connects the supplied AC power cord.
j USB terminal (Type A) ( )
(pages 13, 69)
k USB terminal (Type B) ( )
(page 67)
l Microphone input ( )
Terminals
4
4
5
5
7
6
1
2
9
8q;
3
qs
qa
Note
Note
