Using Network Features
-Subnet Mask: Input the subnet mask of
the projector.
-Default Gateway: Input the default
gateway of the projector.
-Primary DNS: Input the primary DNS
server of the projector.
-Secondary DNS: Input the secondary
DNS server of the projector.
MAC Address: Displays the MAC
address for USB wireless LAN
module.
Change the label names for the input
terminals that will be displayed on the
projected screen on the Setup page. The
entered label names will not be applied
unless you click on [Apply].
1 Click on [Advanced Menu] to open
the Setup page.
2 Click on [Input Label] and open the
Input label setting window.
Clear the check box for the label that
you want to change and input the label
name. You can input up to 20 of the
following letters.
Alphabets: "a" to "z", "A" to "Z"
Numbers: "0" to "9"
Characters: ".", ", ", ":", ";", "!", "?", "'",
""", "#", "$", "%", "&", "@", "(", ")",
"<", ">", "[", "]", "{", "}", "|", "=", "*",
"+", "-", "/", "_", "\", "^", "`", "~", space
3 Click on [Apply] to apply the set
label names.
The label name will be reflected on the
screen when the input of the projector is
changed.
Change the settings for the control protocol
on the Setup page. Entered values will not be
applied unless you click on [Apply].
Setting the Custom Labels for
the Input Terminals of the
Projector

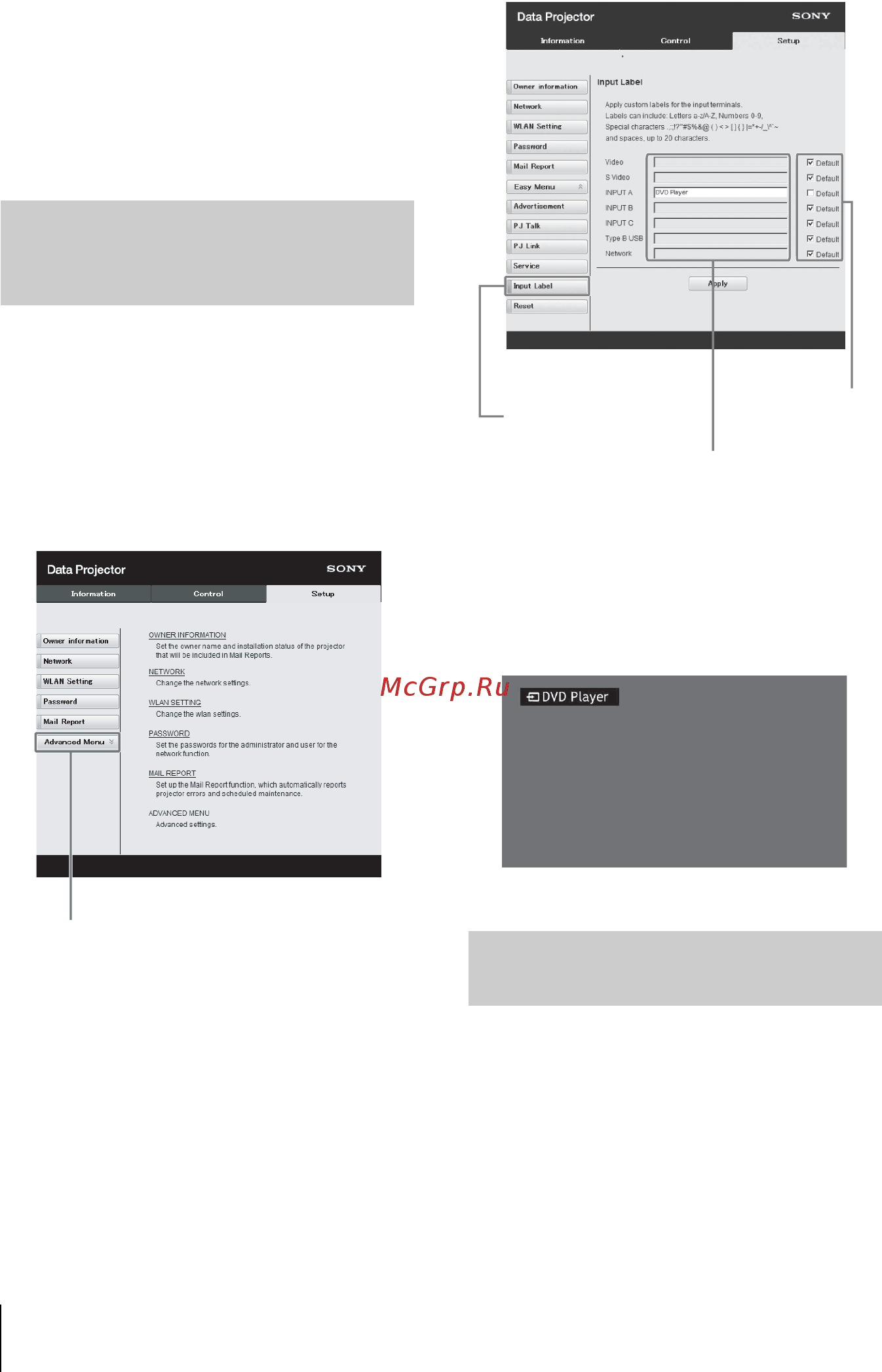

Advanced Menu button
Setting the Control Protocol
of the Projector
Input Label button
Label name for the
input terminal
Use the
factory
default
setting
Input Terminal Label Display Screen
